Magbasite

KBaFe3+Mg7Si8O22(OH)2F6
IMA status
  • Approved
IMA symbol
Mgb
Discovered
1965
Also known as
  • Magbasiet

Where it forms, where it's found

Geological setting

Associated with alkalic barkevitic granosyenites occurring in dolomites.

Type locality
Bayan Obo deposit
  1. Bayan Obo mining district
  2. Baotou City
  3. Inner Mongolia
  4. China

41.7958°, 109.9694°

4recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789105/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Colorless to pinkish violet
Density
3.41 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 70° · 2V calc = 70°
Refractive index
1.597 – 1.615
Surface relief
Moderate
Principal indices
nα 1.597 · nβ 1.609 · nγ 1.615
Pleochroism
Visible

Z = lavender, X = pale lavender, Y = colorless.

Dispersion
r < v weak
Extinction
X = a, Y = b, Z = c.
Notes

Absorption: Z > X > Y.

Michel-Lévy diagramhighlighted lineδ = 0.0180
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]180 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation180 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Space group
#51
Cell parameters
a = 18.9506(3) Å · b = 22.5045(3) Å · c = 5.2780(1) Å
Ratio a:b:c
1 : 1.188 : 0.279
Unit cell volume
2250.93 ų
Z
4

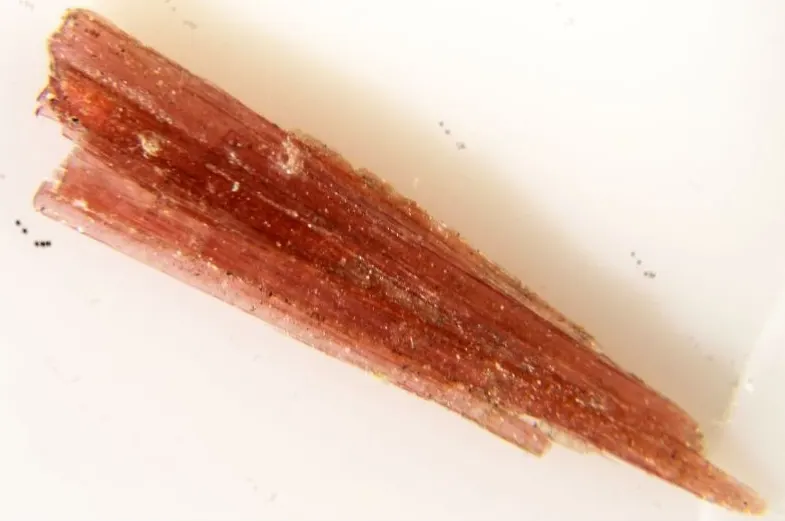

Morphology

As bundles of prismatic and acicular crystals

Type-locality form

Fan-shaped fine acicular and felt-like deposits up to 5 mm in size, somewhat resembling tremolite.

Comment

Space group Cmme (Cmma).

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen2415.999383.976
34.07%
14SiSiliconSilicon828.085224.680
19.94%
12MgMagnesiumMagnesium724.305170.135
15.10%
56BaBariumBarium1137.327137.327
12.18%
9FFluorineFluorine618.998113.988
10.11%
26FeIronIron155.84555.845
4.95%
19KPotassiumPotassium139.09839.098
3.47%
1HHydrogenHydrogen21.0082.016
0.18%
Total1127.065100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Ca

Synonyms

  • Magbasiet

In other languages

German
Magbasit
Italian
magbasite

Classification

Strunz
10th ed.

9.HA.25

  • 9SilicatesClass
  • 9.HUnclassified silicatesDivision
  • 9.HAWith Alkali and Alkali-earth ElementsGroup
  • 9.HA.25MagbasiteSpecies
Dana
8th ed.

69.02.1c.01

  • 69Inosilicates Chains with Side Branches or LoopsClass
  • 69.02Chains with Side Branches or Loops with P>2Type
  • 69.02.1c— unnamed intermediate level —Group
  • 69.02.1c.01MagbasiteSpecies
CIM

17.2.10

  • 17Silicates Containing other AnionsClass
  • 17.2Silicates with fluorideGroup
  • 17.2.10MagbasiteSpecies

Literature, links & citation

Citations
  1. 1965Semenov, I.E., Khomyakov, A.R., Bukova, A.V. (1965) Magbasite - New mineral. Doklady Akademii Nauk SSSR: 163(3): 718-719. (in Russian)
  2. 1966Fleischer, Michael (1966) New Mineral Names. American Mineralogist, 51 (3-4) 529-534
  3. 1968Association, International Mineralogical (1968) International Mineralogical Association: Commission on New Minerals and Mineral Names. Mineralogical Magazine and Journal of the Mineralogical Society, 36 (284). 1143-1145 doi:10.1180/minmag.1968.036.284.11 DOI: 10.1180/minmag.1968.036.284.11
  4. 1979Smith, P. P. K. (1979) The observation of enantiomorphous domains in a natural maghemite. Contributions to Mineralogy and Petrology, 69 (3) 249-254 doi:10.1007/bf00372327DOI: 10.1007/bf00372327
  5. 2014Welch, M.D., Mitchell, R.H., Kampf, A.R., Chakhmouradian, A.R., Smith, D., Carter, M. (2014) Crystal structure and topological affinities of magbasite, KBaFe3+Mg7Si8O22(OH)2F6: a trellis structure related to amphibole and carpholite. Mineralogical Magazine: 78: 29-45.
