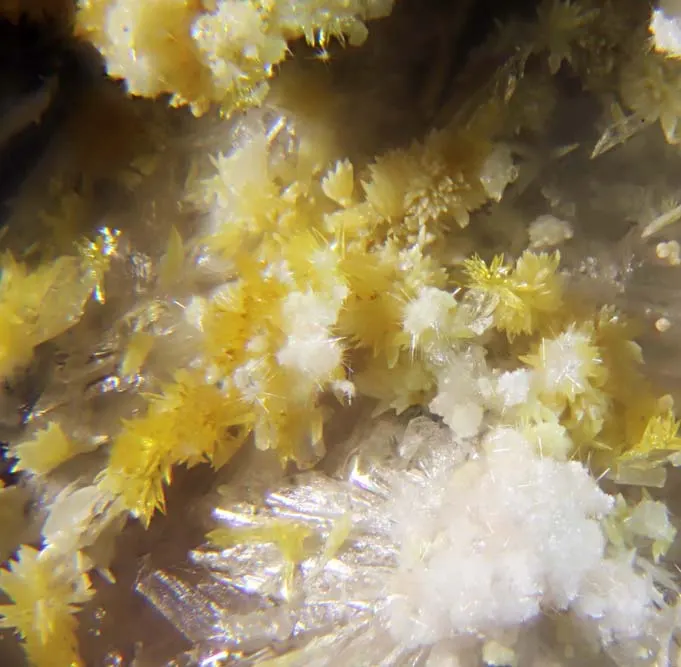

Magnanelliite

K3Fe3+2(SO4)4(OH)(H2O)2
IMA status
  • Approved
IMA symbol
Mgn
IMA approved
2019
Also known as
  • IMA2019-006
  • Magnanelliiet

Where it forms, where it's found

Geological setting

Oxidation of pyrite orebody.

Type locality
Monte Arsiccio Mine
  1. Sant'Anna di Stazzema
  2. Stazzema
  3. Lucca Province
  4. Tuscany
  5. Italy

43.9654°, 10.2836°

1recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789103/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Yellow to orange‐yellow
Streak
Pale yellow
Tenacity
brittle
Cleavage
Distinct/Good

Good on (010), fair on (100).

Fracture
Irregular/Uneven · Conchoidal
Density
2.82 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 60° · 2V calc = 59.9°
Refractive index
1.628 – 1.665
Surface relief
Moderate
Principal indices
nα 1.628 · nβ 1.637 · nγ 1.665
Pleochroism
Visible

X = orange yellow, Y and Z = yellow.

Dispersion
Strong dispersion, r > v.
Extinction
Y = b; X ∧ c ≈ 25° in the obtuse angle β.
UV response
None.
Notes

Absorption: X > Y ~ Z.

Michel-Lévy diagramhighlighted lineδ = 0.0370
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]370 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation370 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
C2/c
Cell parameters
a = 7.5491(3) Å · b = 16.8652(6) Å · c = 12.1574(4) Å
Cell angles
β = 94.064(1) °
Ratio a:b:c
1 : 2.234 : 1.610
Z
4
Type-locality form

Steeply terminated prisms, up to 0.5 mm in length.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1915.999303.981
45.63%
16SSulfurSulfur432.060128.240
19.25%
19KPotassiumPotassium339.098117.294
17.60%
26FeIronIron255.845111.690
16.76%
1HHydrogenHydrogen51.0085.040
0.76%
Total666.245100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA2019-006
  • Magnanelliiet

In other languages

German
IMA 2019-006 · Magnanelliit

Classification

Strunz
10th ed.

7.DF.57

  • 7SulfatesClass
  • 7.DSulfates (selenates, etc.) with additional anions, with H2ODivision
  • 7.DFWith large and medium-sized cationsGroup
  • 7.DF.57MagnanelliiteSpecies

Literature, links & citation

Citations
  1. 2019Miyawaki, Ritsuro, Hatert, Frédéric, Mills, Stuart J. (2019) New minerals and nomenclature modifications approved in 2019. CNMNC Newsletter 49. Mineralogical Magazine, 83 (3) 479-483 doi:10.1180/mgm.2019.35 DOI: 10.1180/mgm.2019.35
  2. 2019Biagioni, Cristian; Bindi, Luca; Kampf, Anthony R. (2019) Crystal-Chemistry of Sulfates from the Apuan Alps (Tuscany, Italy). VII. Magnanelliite, K3Fe3+2(SO4)4(OH)(H2O)2, a New Sulfate from the Monte Arsiccio Mine. Minerals, 9 (12). 779 doi:10.3390/min9120779 DOI: 10.3390/min9120779
  3. 2022(2022) Magnanelliite. Handbook of Mineralogy. Mineralogical Society of America
