Mammothite

Pb6Cu4AlSb5+O2(SO4)2Cl4(OH)16
IMA status
  • Approved
IMA symbol
Mm
Discovered
1983
IMA approved
1983
Also known as
  • IMA1983-076a
  • Mammothiet

Where it forms, where it's found

Geological setting

Oxidation zone

Noted in furnace slags reacting with salt water.

Type locality
Mammoth-Saint Anthony Mine
  1. St. Anthony deposit
  2. Tiger
  3. Mammoth Mining District
  4. Pinal County
  5. Arizona
  6. USA

32.7064°, -110.6831°

10recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789103/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Cerulean blue · blue-green · pale blue
Streak
Pale blue
Tenacity
very brittle
Cleavage
Distinct/Good

Distinct on (010)

Fracture
Irregular/Uneven
Density
5.21 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 80° · 2V calc = 80°
Refractive index
1.868 – 1.928
Surface relief
Very high
Principal indices
nα 1.868 · nβ 1.892 · nγ 1.928
Birefringence
0.060
Pleochroism
Visible

in pale blues

Dispersion
r > v
UV response
Not fluorescent
Michel-Lévy diagramhighlighted lineδ = 0.0600
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]600 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation600 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
C2
Cell parameters
a = 18.959(4) Å · b = 7.33989(19) Å · c = 11.363(3) Å
Cell angles
β = 112.428(9) °
Ratio a:b:c
1 : 0.387 : 0.599
Unit cell volume
1461.6 ų
Z
2
Morphology

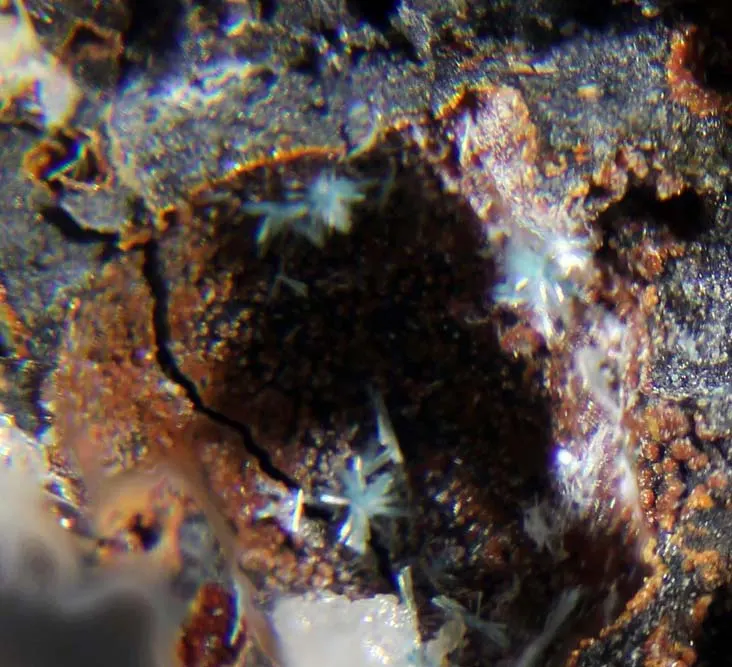

Tabular to prismatic and acicular crystals, radial aggregates.

Type-locality form

Teal-blue striated crystals

Comment

Original structure determination assumed C2/m.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
82PbLeadLead6207.2001243.200
54.43%
8OOxygenOxygen2615.999415.974
18.21%
29CuCopperCopper463.546254.184
11.13%
17ClChlorineChlorine435.450141.800
6.21%
51SbAntimonyAntimony1121.760121.760
5.33%
16SSulfurSulfur232.06064.120
2.81%
13AlAluminiumAluminium126.98226.982
1.18%
1HHydrogenHydrogen161.00816.128
0.70%
Total2284.148100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1983-076a
  • Mammothiet

In other languages

German
IMA 1983-076a · Mammothit
Italian
Mammothite

Classification

Strunz
10th ed.

7.BC.60

  • 7SulfatesClass
  • 7.BSulfates (selenates, etc.) with additional anions, without H2ODivision
  • 7.BCWith medium-sized and large cationsGroup
  • 7.BC.60MammothiteSpecies
Dana
8th ed.

30.01.14.01

  • 30Anhydrous Sulfates Containing Hydroxyl or HalogenClass
  • 30.01(AB)m(XO4)pZq, where m:p>2:1Type
  • 30.01.14— unnamed intermediate level —Group
  • 30.01.14.01MammothiteSpecies
CIM

26.26

  • 26Sulphates with HalideClass
  • 26.26— unnamed intermediate level —Group
  • 26.26MammothiteSpecies

Literature, links & citation

Citations
  1. 1985Effenberger, H. (1985) The crystal structure of mammothite, Pb6Cu4AlSbO2(OH)16Cl4(SO4)2. TMPM Tschermaks Mineralogische und Petrographische Mitteilungen, 34 (3) 279-288 doi:10.1007/bf01082967DOI: 10.1007/bf01082967
  2. 1985Bideaux, Richard A., Dunn, Pete J., Peacor, Donald R., Schnorrer-Köhler, Günther (1985) Mammothite, a New Mineral from Tiger, Arizona and Laurium, Greece. The Mineralogical Record, 16 (2) 117-120
  3. 1986Dunn, Pete J., Chao, George Y., Fitzpatrick, Joan J., Langley, Richard H., Fleischer, Michael, Zilczer, Janet A. (1986) New Mineral Names. American Mineralogist, 71 (1-2). 227-232
  4. 2007(2007) Mammothite. Handbook of Mineralogy. Mineralogical Society of America
  5. 2015Grice, J.D., Cooper, M.A. (2015): Mammothite: A Pb-Sb-Cu-Al oxy-hydroxide-sulfate — hydrogen atom determination lowers space group symmetry. The Canadian Mineralogist: 52: 687-698.
