Manganonordite-(Ce)

Na3SrCeMn2+Si6O17
IMA status
  • Approved
IMA symbol
Mnor-Ce
Also known as
  • IMA1997-007
  • Manganonordiet-(Ce)

Where it forms, where it's found

Geological setting

In an alkaline massif within nests and veinlets of pegmatoid ussingite-bearing rocks.

Type locality
Kedykverpakhk Mountain
  1. Lovozersky District
  2. Murmansk Oblast
  3. Russia

67.8484°, 34.5475°

3recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789105 – 5.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous
Transparency
Transparent
Colour
Greyish-pink when fresh · black to brown or yellow when altered
Streak
White
Tenacity
brittle
Cleavage
Perfect

Perfect on (100), with two additional {h0l} cleavages.

Fracture
Irregular/Uneven
Density
3.43 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 60° · 2V calc = 68°
Refractive index
1.623 – 1.642
Surface relief
Moderate
Principal indices
nα 1.623 · nβ 1.636 · nγ 1.642
Dispersion
weak
Extinction
X = a; Y = b; Z = c.
Michel-Lévy diagramhighlighted lineδ = 0.0190
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]190 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation190 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Space group
Pcca
Cell parameters
a = 14.44(2) Å · b = 5.187(5) Å · c = 19.82(1) Å
Ratio a:b:c
1 : 0.359 : 1.373
Z
4
Morphology

Thin platy crystals, flattened. Main form is (100).

Type-locality form

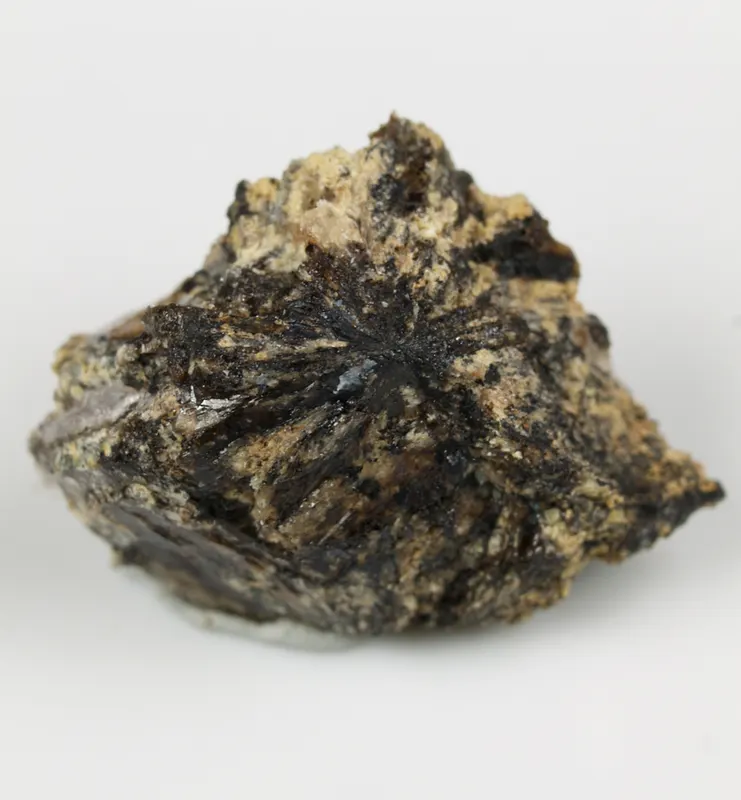

Rosette-like aggregates, up to 5-10 mm in diameter, consisting of tabular crystals.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1715.999271.983
34.33%
14SiSiliconSilicon628.085168.510
21.27%
58CeCeriumCerium1140.116140.116
17.69%
38SrStrontiumStrontium187.62087.620
11.06%
11NaSodiumSodium322.99068.970
8.71%
25MnManganeseManganese154.93854.938
6.94%
Total792.137100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1997-007
  • Manganonordiet-(Ce)

In other languages

German
IMA 1997-007 · Manganonordit-(Ce)
Italian
Manganonordite- · Manganonordite-(Ce)

Classification

Strunz
10th ed.

9.DO.15

  • 9SilicatesClass
  • 9.DInosilicatesDivision
  • 9.DOInosilicates with 7-, 8-, 10-, 12- and 14-periodic chainsGroup
  • 9.DO.15Manganonordite-(Ce)Species

Group, growth & confusion

In the same group
5 members

Literature, links & citation

Citations
  1. 1998Pekov, I. V., Chukanov, N. V., Kononkova, N. N., Belakovsky, D. I., Pushcharovsky, D. Y., Vinogradova, S. A. (1998) Ferronordite-(Ce) Na3SrFeSi6O17 and manganonordite-(Ce) Na3SrMnSi6O17 — the new minerals from Lovozero massif, Kola Peninsula. Zapiski Vserossijskogo Mineralogicheskogo Obshchestva, 127 (1) 32-41
  2. 1999Pushcharovskii, D.Y., I.V. Pekov, J.J. Pluth, J. Smith, G. Ferraris, S.A. Vinogradova, A.V. Arakcheeva, S.V. Soboleva, and E.I. Semenov (1999) Raite, manganonordite-(Ce), and ferronordite-(Ce) from the Lovozero massif: Crystal structures and mineralogical geochemistry. Crystallography Reports 44, 565-574.
  3. 1999Jambor, J. L., Puziewicz, J., Roberts, A. C. (1999) New mineral names. American Mineralogist, 84 (4) 685-688
  4. 2021(2021) Manganonordite-(Ce). Handbook of Mineralogy. Mineralogical Society of America
