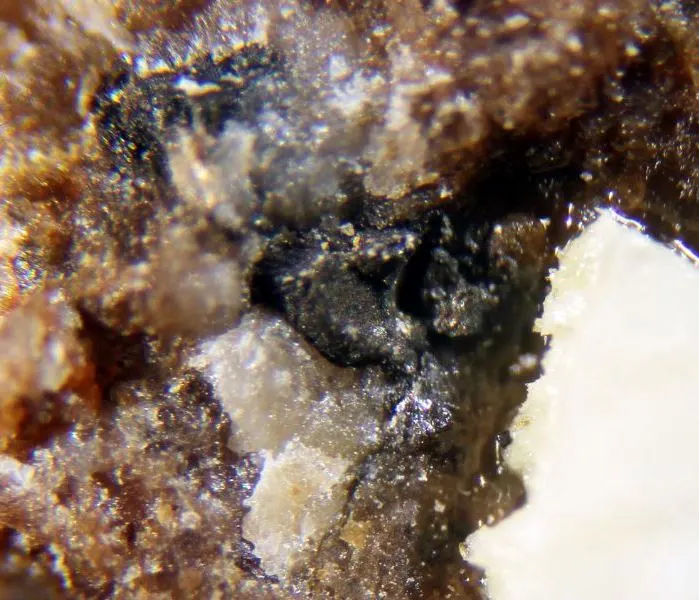

Manganostibite

Mn2+7Sb5+As5+O12
IMA status
  • Approved
  • Grandfathered
IMA symbol
Mnsb
Discovered
1884
Also known as
  • Manganostibiet
  • Manganostibiit

Where it forms, where it's found

Geological setting

late-stage hydrothermal veins in manganese deposits in limestone

Type locality
Brattfors Mine
  1. Nordmark Odal Field
  2. Filipstad
  3. Värmland County
  4. Sweden

59.8333°, 14.1247°

7recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Transparency
Translucent · Opaque
Colour
Black · dark reddish brown in transmitted light
Streak
Chocolate-brown
Fracture
Irregular/Uneven
Density
4.949 g/cm³

Optical

Optical type
Biaxial (-)
Refractive index
1.92 – 1.96
Surface relief
Very high
Principal indices
nα 1.92 · nβ 1.95 · nγ 1.96
Pleochroism
Visible

X = b = Reddish brown Z ^ c = Nearly opaque

Dispersion
r > v strong
Notes

2V(meas.) = Very small.

Michel-Lévy diagramhighlighted lineδ = 0.0400
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]400 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation400 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Cell parameters
a = 8.727(5) Å · b = 18.847(6) Å · c = 6.062(4) Å
Ratio a:b:c
1 : 2.160 : 0.695
Z
4
Morphology

Embedded grains exhibiting crystal outlines at times. Nearly opaque rods and fibers with positive elongation.

Type-locality form

subhedral prismatic grains.

Comment

Space Group: Ibmm.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
25MnManganeseManganese754.938384.566
49.73%
8OOxygenOxygen1215.999191.988
24.83%
51SbAntimonyAntimony1121.760121.760
15.75%
33AsArsenicArsenic174.92274.922
9.69%
Total773.236100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Manganostibiet
  • Manganostibiit

In other languages

German
Manganostibit
Italian
Manganostibite

Classification

Strunz
10th ed.

4.BB.10

  • 4OxidesClass
  • 4.BMetal: Oxygen = 3:4 and similarDivision
  • 4.BBWith only medium-sized cationsGroup
  • 4.BB.10ManganostibiteSpecies
Dana
8th ed.

44.03.02.01

  • 44AntimonatesClass
  • 44.03MiscellaneousType
  • 44.03.02— unnamed intermediate level —Group
  • 44.03.02.01ManganostibiteSpecies
CIM

24.4.2

  • 24Antimonates and AntimonitesClass
  • 24.4Antimonates and antimonites of Mn and FeGroup
  • 24.4.2ManganostibiteSpecies

Literature, links & citation

Citations
  1. 1884Igelström, L.J. (1884) Bulletin de la Société française de Minéralogie: 7: 120.
  2. 1884Igelström, Lars Johan (1884) Manganostibiit, Aimatolit och Aimafibrit, tre nya mineral från Mossgrufvan i Nordmarken. Geologiska Föreningen i Stockholm Förhandlingar, 7 (4) 210-212 doi:10.1080/11035898409443535DOI: 10.1080/11035898409443535
  3. 1921Larsen, Esper S. (1921) The microscopic determination of the nonopaque minerals. Bulletin 679. US Geological Survey doi:10.3133/b679 DOI: 10.3133/b679
  4. 1934Larsen, E.S.; Berman, H. (1934) The microscopic determination of the nonopaque minerals. Bulletin of the US Geological Survey Vol. 848. US Geological Survey p.1-266. doi:10.3133/b848 DOI: 10.3133/b848
  5. 1951Palache, Charles; Berman, Harry; Frondel, Clifford (1951) The System of Mineralogy (7th ed.) Vol. 2 - Halides, Nitrates, Borates, Carbonates, Sulfates, Phosphates, Arsenates, Tungstates, Molybdates, Etc. John Wiley and Sons.
