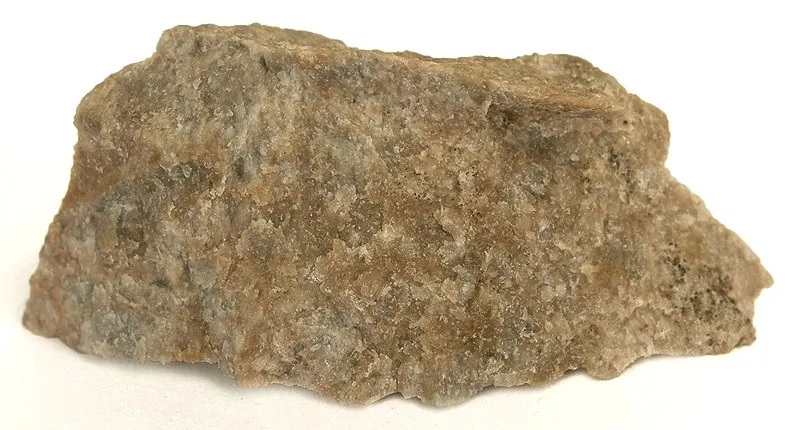

Margarosanite

Ca2PbSi3O9
IMA status
  • Approved
  • Grandfathered
IMA symbol
Mga
Discovered
1916
Also known as
  • Margarosaniet

Where it forms, where it's found

Geological setting

Altered areas of metamorphosed zinc-manganese-iron silicate-oxide orebodies

Type locality
Parker shaft
  1. Franklin Mine
  2. Franklin
  3. Sussex County
  4. New Jersey
  5. USA

41.1203°, -74.5828°

8recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789102.5 – 3/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Colorless · white · grayish-white (due to included native lead)
Streak
White
Tenacity
brittle
Cleavage
Perfect

(010) perfect, (100) good, (001) fair

Fracture
Irregular/Uneven · Micaceous
Density
4.33 g/cm³

Optical

Optical type
Biaxial (-)
Refractive index
1.727 – 1.798
Surface relief
High
Principal indices
nα 1.727 · nβ 1.771 · nγ 1.798
Birefringence
0.071
Pleochroism
Non-pleochroic
Dispersion
strong
UV response
Bright blue-white, pink (often both colors are present)(MR UV, SW UV).
Michel-Lévy diagramhighlighted lineδ = 0.0710
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]710 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation710 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Triclinic
Space group
P-1
Cell parameters
a = 6.77 Å · b = 9.64 Å · c = 6.75 Å
Cell angles
α = 110.58 ° · β = 102 ° · γ = 88.5 °
Ratio a:b:c
1 : 1.424 : 0.997
Z
2
Morphology

Crystals are extremely rare, but have a thin bladed appearance with acute crystal profile.

Comment

Data from cr. structure refinement (Callegari & Boiocchi, 2016), approximated: a=6.74, b=9.53, c=6.70, α=110.19, β=103.05, γ=83.04

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
82PbLeadLead1207.200207.200
40.18%
8OOxygenOxygen915.999143.991
27.93%
14SiSiliconSilicon328.08584.255
16.34%
20CaCalciumCalcium240.07880.156
15.55%
Total515.602100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Fe
  • Zn
  • Mg
  • Ba
  • H2O

Synonyms

  • Margarosaniet

In other languages

German
Margarosanit
Italian
Margarosanite

Classification

Strunz
10th ed.

9.CA.25

  • 9SilicatesClass
  • 9.CCyclosilicatesDivision
  • 9.CA[Si3O9]6- 3-membered single rings (dreier-Einfachringe), without insular complex anionsGroup
  • 9.CA.25MargarosaniteSpecies
Dana
8th ed.

59.01.02.02

  • 59Cyclosilicates Three-membered RingsClass
  • 59.01Three-Membered Rings, anhydrous, no other anionsType
  • 59.01.02Walstromite groupGroup
  • 59.01.02.02MargarosaniteSpecies
CIM

14.13.5

  • 14Silicates not Containing AluminumClass
  • 14.13Silicates of PbGroup
  • 14.13.5MargarosaniteSpecies

Group, growth & confusion

In the same group
3 members
Commonly confused with
2 minerals

Literature, links & citation

Citations
  1. 1916Ford, W.E., Bradley, W.M. (1916) Margarosanite, a new lead-calcium silicate from Franklin, N.J.. American Journal of Science: 42: 159-162.
  2. 1916Gordon, S.G. (1916) New species. American Mineralogist: 1: 86-88.
  3. 1935Palache, Charles (1935) The minerals of Franklin and Sterling Hill, Sussex County, New Jersey. Professional Paper 180. US Geological Survey 135 pp. doi:10.3133/pp180 DOI: 10.3133/pp180
  4. 1963Armstrong, R.L. (1963) New data on margarosanite. American Mineralogist: 48: 698-703.
  5. 1964Glasser, F. P., Dent Glasser, L. S. (1964) Additional notes on margarosanite. American Mineralogist, 49 (5-6) 781-782
