Mazzite-Mg

Mg5(Si26Al10)O72 · 30H2O
IMA status
  • Approved
IMA symbol
Maz-Mg
Discovered
1974
Also known as
  • Mazziet-Mg
  • Mazzit
  • Mazzita

Where it forms, where it's found

Geological setting

Olivine basalt

Type locality
Mont Semiol
  1. Châtelneuf
  2. Montbrison
  3. Loire
  4. Auvergne-Rhône-Alpes
  5. France

45.6298°, 3.9829°

2recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789104 – 5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Colorless
Streak
White
Density
2.11 g/cm³

Optical

Optical type
Uniaxial (-)
Refractive index
1.499 – 1.5062
Surface relief
Moderate
Principal indices
nω 1.5062 · nε 1.499
Michel-Lévy diagramhighlighted lineδ = 0.0072
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]72 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation72 nm
Order1st order
XPL colour

Crystallography

Crystal system
Hexagonal
Space group
#126
Cell parameters
a = 18.392 Å · c = 7.646 Å
Z
1
Morphology

Extremely slender hexagonal prisms terminated by pinacoids.

Type-locality form

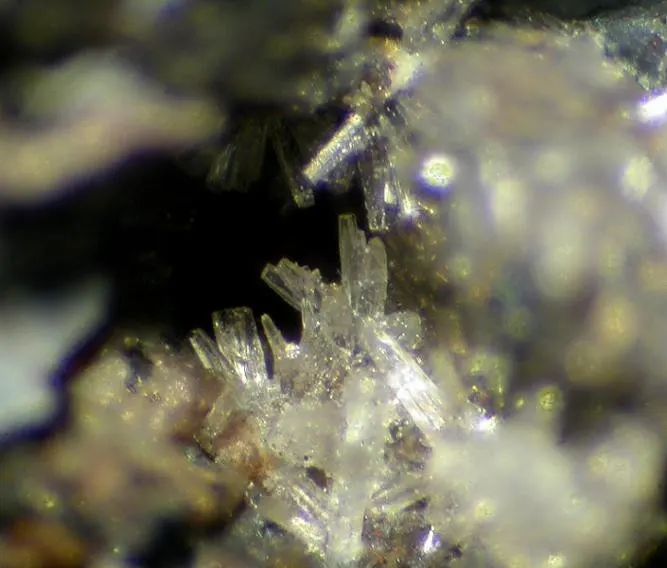

Needles; hexagonal prisms up to 1.5 mm long but only 20 um across. In bundles/sprays.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen10215.9991631.898
57.99%
14SiSiliconSilicon2628.085730.210
25.95%
13AlAluminiumAluminium1026.982269.820
9.59%
12MgMagnesiumMagnesium524.305121.525
4.32%
1HHydrogenHydrogen601.00860.480
2.15%
Total2813.933100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Na

Synonyms

  • Mazziet-Mg
  • Mazzit
  • Mazzita

In other languages

German
IMA 1973-045 · Mazzit-Mg
Italian
IMA1973-045 · Mazzite · mazzite-Mg

Classification

Strunz
10th ed.

9.GC.20

  • 9SilicatesClass
  • 9.GTektosilicates with zeolitic H2O; zeolite familyDivision
  • 9.GCChains of doubly-connected 4-membered ringsGroup
  • 9.GC.20Mazzite-MgSpecies
CIM

16.10.28

  • 16Silicates Containing Aluminum and other MetalsClass
  • 16.10Aluminosilicates of Ca and alkalisGroup
  • 16.10.28Mazzite-MgSpecies

Group, growth & confusion

In the same group
1 members

Literature, links & citation

Citations
  1. 1974Galli, E., Passaglia, E., Pongiluppi, D., Rinaldi, R. (1974) Mazzite, a new mineral, the natural counterpart of the synthetic zeolite Ω. Contributions to Mineralogy and Petrology, 45 (2). 99-105 doi:10.1007/bf00371162 DOI: 10.1007/bf00371162
  2. 1975Fleischer, Michael (1975) New mineral names. American Mineralogist, 60 (3-4) 340-341
  3. 1975Galli, E. (1975) Crystal structure refinement of mazzite. Rendiconti della Società Italiana di Mineralogia e Petrologia: 31: 599-612.
  4. 1997Coombs, Douglas S., Alberti, Alberto, Armbruster, Thomas, Artioli, Gilberto, Colella, Carmine, Galli, Ermanno, Grice, Joel D., Liebau, Friedrich, Mandarino, Joseph A., Minato, Hideo, et al. (1997) Recommended nomenclature for zeolite minerals; report of the Subcommittee on Zeolites of the International Mineralogical Association, Commission on New Minerals and Mineral Names. The Canadian Mineralogist, 35 (6). 1571-1606
  5. 1998Golubev, S. V. (1998) Kinetics of Calcium and Magnesium Phosphates Precipitation from Seawater. Mineralogical Magazine, 62 (1) 533-534 doi:10.1180/minmag.1998.62a.1.282 DOI: 10.1180/minmag.1998.62a.1.282
