Mcalpineite

Cu3Te6+O6
IMA status
  • Approved
IMA symbol
Map
Discovered
1994
Also known as
  • IMA1992-025
  • Mcalpineiet

Where it forms, where it's found

Type locality
McAlpine Mine
  1. Peñon Blanco Peak
  2. Coulterville Mining District
  3. Tuolumne County
  4. California
  5. USA

37.7661°, -120.2525°

19recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789103/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Adamantine
Transparency
Transparent · Translucent
Colour
Green
Streak
Light green
Tenacity
brittle
Cleavage
None Observed
Fracture
Irregular/Uneven
Density
6.65 g/cm³

Optical

Optical type
Isotropic
Refractive index
2.01
Surface relief
Very high
Principal indices
nα 2.01
Isotropy testPPL ↔ XPL diagnostic
PPL intrinsic colour; no change on stage rotation
XPL extinct at every orientation

Crystallography

Crystal system
Isometric
Space group
Ia3
Cell parameters
a = 9.555 Å
Z
8
Type-locality form

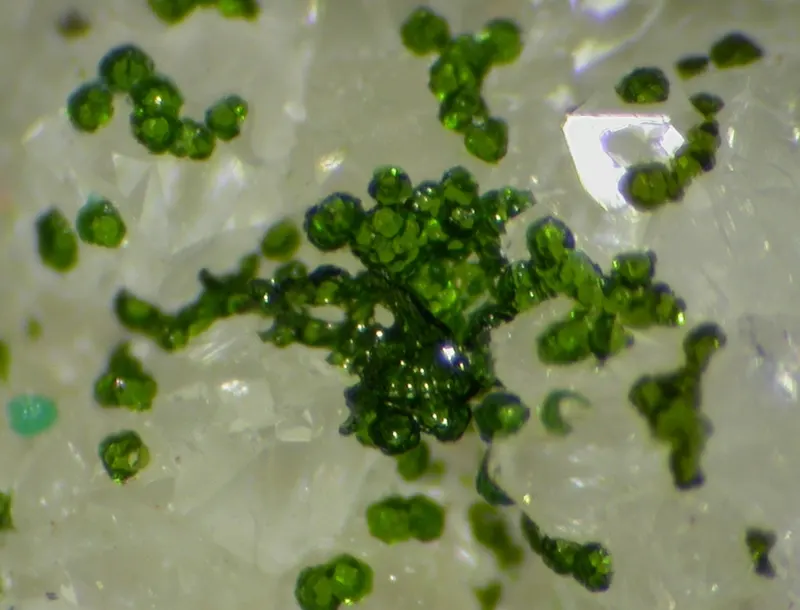

Isolated 0.5 mm-sized emerald green cryptocrystalline crusts.

Comment

two polytypes are known: (1) mcalpineite-1C: Ia-3, with a = 9.537(1) Å and V = 867.4(3) ų; (2) mcalpineite-2O: Pcca , with a = 9.745(3) Å, b = 9.749(2) Å, c = 9.771(2) Å and V = 928.3(4) ų (Missen et al., 2022)

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
29CuCopperCopper363.546190.638
46.02%
52TeTelluriumTellurium1127.600127.600
30.81%
8OOxygenOxygen615.99995.994
23.17%
Total414.232100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Pb
  • Ni
  • Si

Synonyms

  • IMA1992-025
  • Mcalpineiet

In other languages

German
IMA 1992-025 · Mcalpineit
Italian
Mcalpineite

Classification

Strunz
10th ed.

7.AB.55

  • 7SulfatesClass
  • 7.ASulfates (selenates, etc.) without additional anions, without H2ODivision
  • 7.ABWith medium-sized cationsGroup
  • 7.AB.55McalpineiteSpecies
Dana
8th ed.

33.02.05.01

  • 33Selenates and TelluratesClass
  • 33.02(AB)m(XO6)·xH2O, where x can equal zeroType
  • 33.02.05— unnamed intermediate level —Group
  • 33.02.05.01McalpineiteSpecies

Literature, links & citation

Citations
  1. 1994Roberts, Andrew C., Scott Ercit, T., Criddle, Alan J., Jones, Gary C., Scott Williams, R., Cureton, Forrest F., Jensen, Martin C. (1994) Mcalpineite, Cu3TeO6·H2O, a new mineral from the McAlpine mine, Tuolumne County, California, and from the Centennial Eureka mine, Juab County, Utah. Mineralogical Magazine, 58 (392) 417-424 doi:10.1180/minmag.1994.058.392.07 DOI: 10.1180/minmag.1994.058.392.07
  2. 2013Carbone, C., Basso, R., Cabella, R., Martinelli, A., Grice, J. D., Lucchetti, G. (2013) Mcalpineite from the Gambatesa mine, Italy, and redefinition of the species. American Mineralogist, 98 (10) 1899-1905 doi:10.2138/am.2013.4525DOI: 10.2138/am.2013.4525
  3. 2017(2017) Mcalpineite. Handbook of Mineralogy. Mineralogical Society of America
  4. 2022Missen, Owen P., Mills, Stuart J., Canossa, Stefano, Hadermann, Joke, Nénert, Gwilherm, Weil, Matthias, Libowitzky, Eugen, Housley, Robert M., Artner, Werner, Kampf, Anthony R., et al. (2022) Polytypism in mcalpineite: a study of natural and synthetic Cu3TeO6. Acta Crystallographica Section B Structural Science, Crystal Engineering and Materials, 78 (1). 20-32 doi:10.1107/s2052520621013032DOI: 10.1107/s2052520621013032
