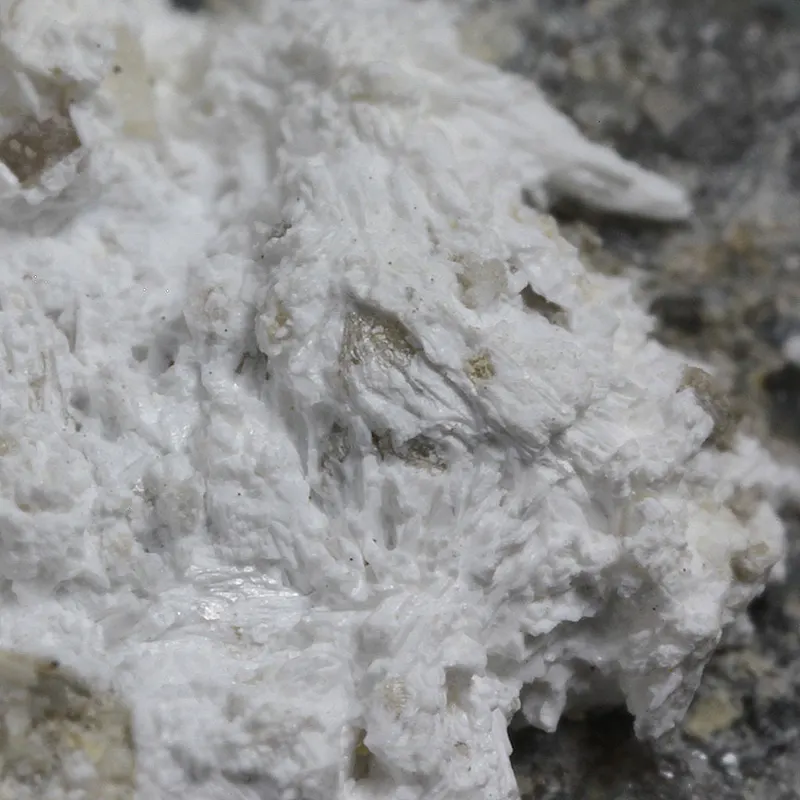

Mcnearite

NaCa5(AsO4)(AsO3OH)4 · 4H2O
IMA status
  • Approved
IMA symbol
Mnr
Discovered
1981
Also known as
  • IMA1980-017
  • Mcneariet

Where it forms, where it's found

Geological setting

Oxidized zone of arsenic-bearing rocks.

Type locality
Gabe Gottes Mine
  1. Sankt Jakob vein
  2. Neuenberg
  3. Sainte-Marie-aux-Mines
  4. Colmar-Ribeauvillé
  5. Haut-Rhin
  6. Grand Est
  7. France

48.2136°, 7.1589°

5recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Transparency
Transparent · Translucent
Colour
White
Streak
White
Tenacity
very brittle
Cleavage
Perfect

Parallel to elongation

Density
2.65 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 60° · 2V calc = 58°
Refractive index
1.559 – 1.572
Surface relief
Moderate
Principal indices
nα 1.559 · nβ 1.562 · nγ 1.572
Dispersion
r < v moderate
UV response
Violet under LW UV
Michel-Lévy diagramhighlighted lineδ = 0.0130
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]130 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation130 nm
Order1st order
XPL colour

Crystallography

Crystal system
Triclinic
Cell parameters
a = 13.50 Å · b = 14.10 Å · c = 6.95 Å
Cell angles
α = 90 ° · β = 92 ° · γ = 119 °
Ratio a:b:c
1 : 1.044 : 0.515
Z
2
Type-locality form

Radiating fibers, up to 1-2 mm in length

Comment

Point Group: _1 or 1; Space Group: P_1 or P1.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen2415.999383.976
38.63%
33AsArsenicArsenic574.922374.610
37.68%
20CaCalciumCalcium540.078200.390
20.16%
11NaSodiumSodium122.99022.990
2.31%
1HHydrogenHydrogen121.00812.096
1.22%
Total994.062100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1980-017
  • Mcneariet

In other languages

German
IMA 1980-017 · Mcnearit
Italian
Mcnearite

Classification

Strunz
10th ed.

8.CJ.55

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.CPhosphates without additional anions, with H2ODivision
  • 8.CJWith only large cationsGroup
  • 8.CJ.55McneariteSpecies
Dana
8th ed.

39.03.07.01

  • 39Hydrated Acid Phosphates, Arsenates and VanadatesClass
  • 39.03MiscellaneousType
  • 39.03.07— unnamed intermediate level —Group
  • 39.03.07.01McneariteSpecies
CIM

20.2.15

  • 20Arsenates (also arsenates with phosphate, but without other anions)Class
  • 20.2Arsenates of Be, Mg, Ca or BaGroup
  • 20.2.15McneariteSpecies

Literature, links & citation

Citations
  1. 1981Sarp, H., Deferne, J., Liebich, B. W. (1981): La mcnearite, NaCa5H4(AsO4)5•4H2O, un nouvel arséniate hydraté de calcium et de sodium. Schweizerische Mineralogische und Petrographische Mitteilungen 61, 1-6.
  2. 1982Fleischer, Michael, Chao, George Y., Mandarino, Joseph A. (1982) New mineral names. American Mineralogist, 67 (7-8) 854-860
  3. 1989Ondruš, P., Hyršl, J. (1989) New finds and revision of secondary minerals from Příbram district. Acta Universitatis Carolinae, Geologica: 1989: 521-533. [PXRD data]
  4. 2005(2005) Mcnearite. Handbook of Mineralogy. Mineralogical Society of America
