Meieranite

Na2Sr3MgSi6O17
IMA status
  • Approved
IMA symbol
Mei
IMA approved
2015
Also known as
  • IMA2015-009
  • Meieraniet

Where it forms, where it's found

Geological setting

Hydrothermal.

Type locality
Wessels Mine
  1. Joe Morolong Local Municipality
  2. John Taolo Gaetsewe District Municipality
  3. Northern Cape
  4. South Africa

-27.1135°, 22.8544°

1recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789105.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Light blue to blue
Streak
White
Tenacity
brittle
Cleavage
Distinct/Good

On (010)

Density
3.41 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 70° · 2V calc = 72°
Refractive index
1.61 – 1.63
Surface relief
Moderate
Principal indices
nα 1.610 · nβ 1.623 · nγ 1.630
Pleochroism
Strong

X = violet, Y = blue/violet, and Z = blue

Dispersion
strong, r > v
Extinction
X = a, Y = b, Z = c
Michel-Lévy diagramhighlighted lineδ = 0.0200
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]200 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation200 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Cell parameters
a = 7.9380(2) Å · b = 10.4923(3) Å · c = 18.2560(6) Å
Ratio a:b:c
1 : 1.322 : 2.300
Unit cell volume
1520.5 ų
Twinning

None observed

Parting
None observed
Type-locality form

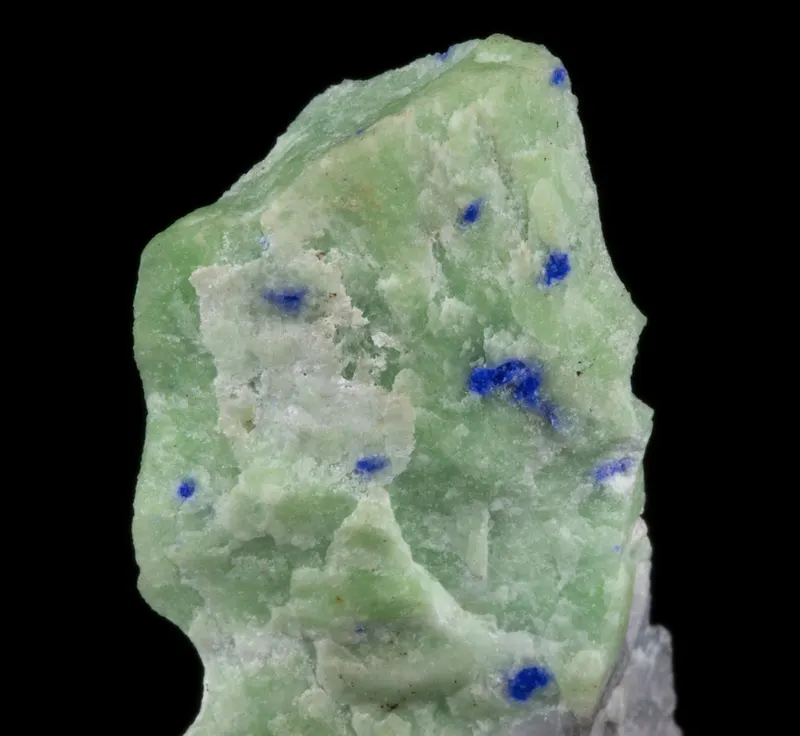

Isolated granular aggregates embedded in a matrix mainly of sugilite. Crystals up to 0.5x0.5x0.4 mm in size.

Comment

P21nb

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1715.999271.983
35.16%
38SrStrontiumStrontium387.620262.860
33.98%
14SiSiliconSilicon628.085168.510
21.78%
11NaSodiumSodium222.99045.980
5.94%
12MgMagnesiumMagnesium124.30524.305
3.14%
Total773.638100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA2015-009
  • Meieraniet

In other languages

German
IMA 2015-009 · Meieranit
Italian
meieranite

Classification

Strunz
10th ed.

9.DO.15

  • 9SilicatesClass
  • 9.DInosilicatesDivision
  • 9.DOInosilicates with 7-, 8-, 10-, 12- and 14-periodic chainsGroup
  • 9.DO.15MeieraniteSpecies

Literature, links & citation

Citations
  1. 2015Hålenius, U., Hatert, F., Pasero, M., Mills, S. J. (2015) New minerals and nomenclature modifications approved in 2015, CNMNC Newsletter No 25. Mineralogical Magazine, 79 (3) 529-535 doi:10.1180/minmag.2015.079.3.02DOI: 10.1180/minmag.2015.079.3.02
  2. 2016rruff.info (2016) http://rruff.info/meieranite/names/asc/
  3. 2019Yang, Hexiong, Gu, Xiangping, Downs, Robert T., Evans, Stanley H., Van Nieuwenhuizen, Jaco J., Lavinsky, Robert M., Xie, Xiande (2019) Meieranite, Na2Sr3MgSi6O17, a New Mineral from the Wessels Mine, Kalahari Manganese Fields, South Africa. The Canadian Mineralogist, 57 (4) 457-466 doi:10.3749/canmin.1800067 DOI: 10.3749/canmin.1800067
  4. 2021(2021) Meieranite. Handbook of Mineralogy. Mineralogical Society of America
