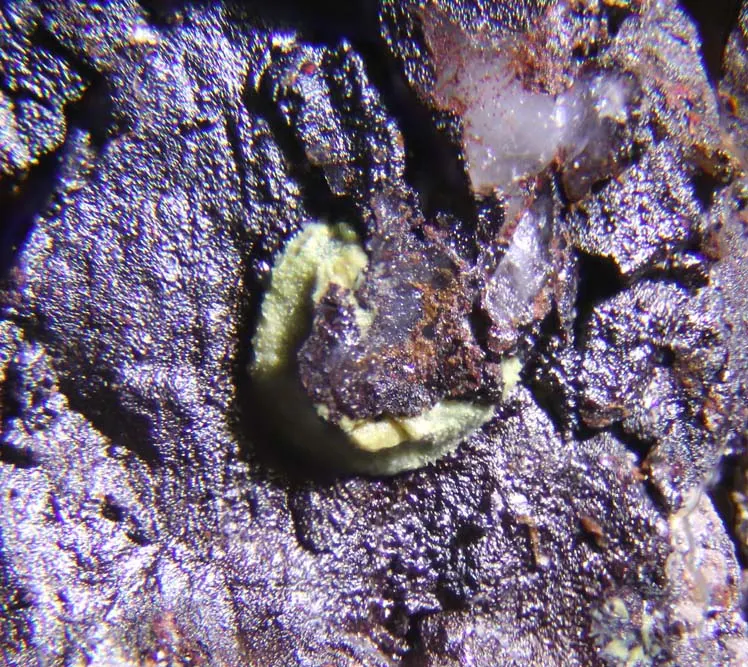

Meurigite-Na

[Na(H2O)2.5][Fe3+8(PO4)6(OH)7(H2O)4]
IMA status
  • Approved
IMA symbol
Meu-Na
IMA approved
2007
Also known as
  • IMA2007-024
  • Meurigiet-Na

Where it forms, where it's found

Geological setting

A late-stage, low-temperature, secondary mineral in complex phosphate assemblages rich in Fe3+ and Na.

Type locality
Silver Coin Mine
  1. Valmy
  2. Iron Point Mining District
  3. Humboldt County
  4. Nevada
  5. USA

40.9289°, -117.3239°

7recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789103/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Colour
White · creamy · or yellow
Streak
white
Tenacity
flexible
Density
2.94 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 50° · 2V calc = 49°
Refractive index
1.74 – 1.763
Surface relief
High
Principal indices
nα 1.740 · nβ 1.759 · nγ 1.763
Pleochroism
Non-pleochroic
Dispersion
none
Extinction
X ≅ c , Z = b.
Michel-Lévy diagramhighlighted lineδ = 0.0230
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]230 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation230 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
C2/c
Cell parameters
a = 28.835(2) Å · b = 5.1848(4) Å · c = 19.484(1) Å
Cell angles
β = 106.983(6) °
Ratio a:b:c
1 : 0.180 : 0.676
Z
4
Morphology

Radial sprays of flattened fibers (thin laths) flattened on (001) and elongated parallel to [010].

Type-locality form

Radial sprays of cream-colored, flattened fibers (thin laths) to 0.4 mm in length.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen37.515.999599.962
47.03%
26FeIronIron855.845446.760
35.02%
15PPhosphorusPhosphorus630.974185.844
14.57%
11NaSodiumSodium122.99022.990
1.80%
1HHydrogenHydrogen201.00820.160
1.58%
Total1275.716100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA2007-024
  • Meurigiet-Na

In other languages

German
IMA 2007-024 · Meurigit-Na
Italian
meurigite-Na

Classification

Strunz
10th ed.

8.DJ.20

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.DPhosphates, etc. with additional anions, with H2ODivision
  • 8.DJWith large and medium-sized cations, (OH, etc.):RO4 = 1:1Group
  • 8.DJ.20Meurigite-NaSpecies
Dana
8th ed.

42.13.14.02

  • 42Hydrated Phosphates, Etc.containing Hydroxyl or HalogenClass
  • 42.13MiscellaneousType
  • 42.13.14— unnamed intermediate level —Group
  • 42.13.14.02Meurigite-NaSpecies

Literature, links & citation

Citations
  1. 2007Kampf, A. R., Pluth, J. J., Chen, Y.-S. (2007) The crystal structure of meurigite. American Mineralogist, 92 (8) 1518-1524 doi:10.2138/am.2007.2486 DOI: 10.2138/am.2007.2486
  2. 2009Kampf, A. R., Adams, P. M., Kolitsch, U., Steele, I. M. (2009) Meurigite-Na, a new species, and the relationship between phosphofibrite and meurigite. American Mineralogist, 94 (5) 720-727 doi:10.2138/am.2009.3134 DOI: 10.2138/am.2009.3134
  3. 2021(2021) Meurigite-Na. Handbook of Mineralogy. Mineralogical Society of America
