Mikenewite

Mn2+(S4+O3) · 3H2O
IMA status
  • Approved
IMA symbol
Mnw
Also known as
  • Mikenewiet

Where it forms, where it's found

Geological setting

Oxidation zone.

Type locality
San Judas Chimney
  1. Ojuela Mine
  2. Mapimí
  3. Mapimí Municipality
  4. Durango
  5. Mexico

Physical

Hardness
123456789102.5 – 3/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Yellowish in transmitted light.
Streak
White
Tenacity
brittle
Cleavage
Perfect

(101)

Density
2.48 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 69° · 2V calc = 77°
Refractive index
1.606 – 1.627
Surface relief
Moderate
Principal indices
nα 1.606 · nβ 1.614 · nγ 1.627
Pleochroism
Visible

The pleochroism is from grey to yellowish

Dispersion
r > v weak
Michel-Lévy diagramhighlighted lineδ = 0.0210
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]210 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation210 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Cell parameters
a = 6.6390(3) Å · b = 8.8895(4) Å · c = 8.7900(4) Å
Cell angles
β = 96.095(2) °
Ratio a:b:c
1 : 1.339 : 1.324
Z
4
Type-locality form

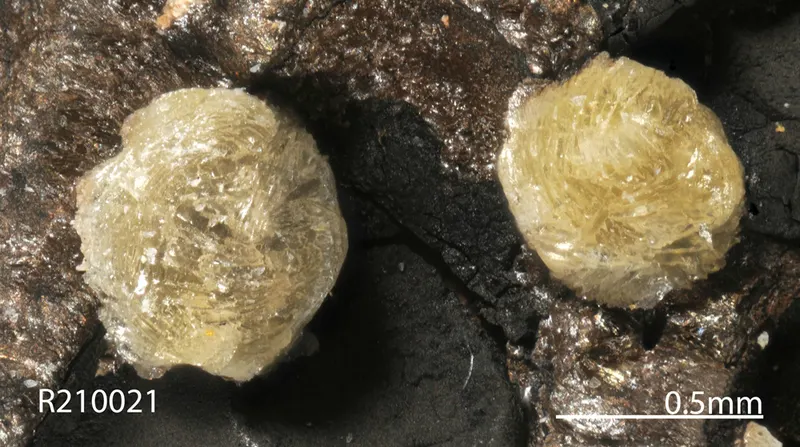

Spheres of platy crystals.

Comment

the space group is P21/n

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen615.99995.994
50.78%
25MnManganeseManganese154.93854.938
29.06%
16SSulfurSulfur132.06032.060
16.96%
1HHydrogenHydrogen61.0086.048
3.20%
Total189.040100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Mikenewiet

In other languages

German
IMA 2022-102 · Mikenewit

Classification

Strunz
10th ed.

4.JE

  • 4OxidesClass
  • 4.JArsenites, antimonites, bismuthites, sulfites, selenites, tellurites; iodatesDivision
  • 4.JESulfitesGroup
  • 4.JEMikenewiteSpecies

Group, growth & confusion

Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. 2023Yang, Hexiong, Jenkins, Robert A., McGlasson, James A., Gibbs, Ronald B., Downs, Robert T. (2023) Mikenewite, the natural analogue of synthetic α-Mn2(S4O3)⋅3H2O, a new sulfite mineral from the Ojuela mine, Mapimí, Mexico. Mineralogical Magazine, 87 (4) 534-541 doi:10.1180/mgm.2023.24 DOI: 10.1180/mgm.2023.24
  2. 2023Bosi, Ferdinando; Miyawaki, Ritsuro; Hatert, Frédéric; Pasero, Marco; Mills, Stuart J. (2023) IMA Commission on New Minerals, Nomenclature and Classification (CNMNC) – Newsletter 71. European Journal of Mineralogy, 35 (1). 75-79 doi:10.5194/ejm-35-75-2023 DOI: 10.5194/ejm-35-75-2023
