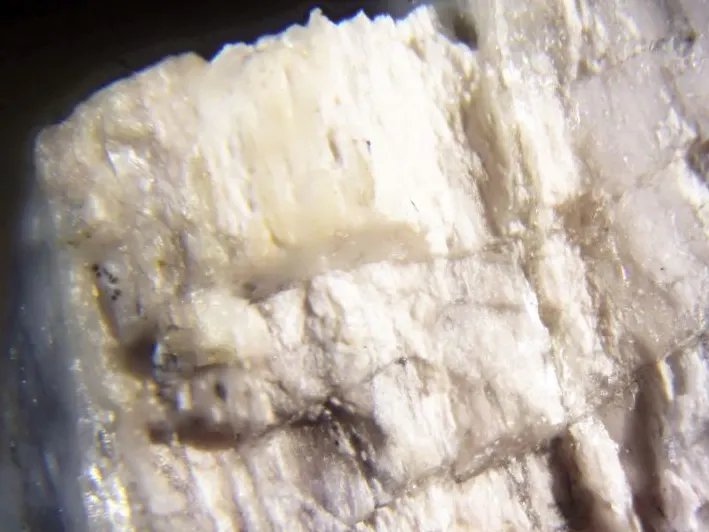

Minehillite

(K,Na)2Ca28Zn5Al4Si40O112(OH)16
IMA status
  • Approved
IMA symbol
Mhl
Discovered
1984
Also known as
  • IMA1983-001
  • Minehilliet

Where it forms, where it's found

Geological setting

Secondary low-temperature hydrothermal mineral,

Type locality
Franklin Mine
  1. Franklin
  2. Sussex County
  3. New Jersey
  4. USA

41.1158°, -74.5875°

1recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789104/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Pearly
Transparency
Transparent
Colour
Colourless · white

Gray to black with lead inclusions

Streak
White
Cleavage
Perfect

(0001)

Density
2.93 g/cm³

Optical

Optical type
Uniaxial (-)
Refractive index
1.604 – 1.607
Surface relief
Moderate
Principal indices
nω 1.607 · nε 1.604
UV response
medium dull violet in SW and duller violet in LW UV
Michel-Lévy diagramhighlighted lineδ = 0.0030
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]30 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation30 nm
Order1st order
XPL colour

Crystallography

Crystal system
Hexagonal
Cell parameters
a = 9.77(2) Å · c = 33.01(7) Å
Z
1
Type-locality form

Plates, to 5 mm, forming bands and incrustations.

Comment

Point Group: 6/m 2/m 2/m; _6m2; or 6mm; Space Group: P63/mmc; P_62c; or P63mc:

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen12815.9992047.872
42.06%
14SiSiliconSilicon4028.0851123.400
23.07%
20CaCalciumCalcium2840.0781122.184
23.05%
30ZnZincZinc565.380326.900
6.72%
13AlAluminiumAluminium426.982107.928
2.22%
19KPotassiumPotassium239.09878.196
1.61%
11NaSodiumSodium222.99045.980
0.94%
1HHydrogenHydrogen161.00816.128
0.33%
Total4868.588100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Fe
  • Mn
  • Mg
  • H2O

Synonyms

  • IMA1983-001
  • Minehilliet

In other languages

German
IMA 1983-001 · Minehillit
Italian
Minehillite

Classification

Strunz
10th ed.

9.EE.75

  • 9SilicatesClass
  • 9.EPhyllosilicatesDivision
  • 9.EESingle tetrahedral nets of 6-membered rings connected by octahedral nets or octahedral bandsGroup
  • 9.EE.75MinehilliteSpecies
Dana
8th ed.

73.02.2b.01

  • 73Phyllosilicates Condensed Tetrahedral SheetsClass
  • 73.02Condensed Tetrahedral Sheets with double and single layersType
  • 73.02.2b— unnamed intermediate level —Group
  • 73.02.2b.01MinehilliteSpecies
CIM

16.12.18

  • 16Silicates Containing Aluminum and other MetalsClass
  • 16.12Aluminosilicates of Sr, Ba and ZnGroup
  • 16.12.18MinehilliteSpecies

Group, growth & confusion

In the same group
3 members

Literature, links & citation

Citations
  1. 1984Dunn, Pete J., Peacor, Donald R., Leavens, Peter B., Wicks, Frederick J. (1984) Minehillite, a new layer silicate from Franklin, New Jersey, related to reyerite and truscottite. American Mineralogist, 69 (11-12) 1150-1155
  2. 1995Dai, Yongshan, Post, Jeffrey E., Appleman, Daniel E. (1995) Crystal structure of minehillite; twinning and structural relationships to reyerite. American Mineralogist, 80 (1) 173-178 doi:10.2138/am-1995-1-217 DOI: 10.2138/am-1995-1-217
  3. 2001(2001) Minehillite. Handbook of Mineralogy. Mineralogical Society of America
