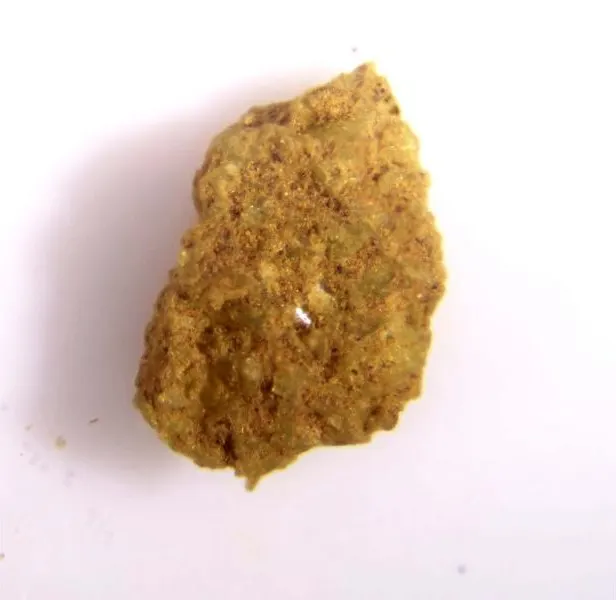

Minguzzite

K3Fe3+(C2O4)3 · 3H2O
IMA status
  • Approved
  • Grandfathered
IMA symbol
Mzz
Discovered
1955
Also known as
  • Minguzziet

Where it forms, where it's found

Type locality
Cape Calamita Mine
  1. Capoliveri
  2. Livorno Province
  3. Tuscany
  4. Italy

42.7190°, 10.4004°

2recorded occurrences
Source · OpenStreetMap

Physical

Lustre
Vitreous
Transparency
Transparent · Translucent
Colour
Green · yellow-green
Tenacity
brittle
Cleavage
Perfect

(010)

Density
2.142 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 78° · 2V calc = 76 – 80°
Refractive index
1.498 – 1.597
Surface relief
Moderate
Principal indices
nα 1.498 – 1.501 · nβ 1.554 – 1.555 · nγ 1.594 – 1.597
Birefringence
0.096
Pleochroism
Strong

X = yellow green; Y = Z = emerald green.

Dispersion
r > v
Extinction
Inclined
UV response
Not fluorescent
Michel-Lévy diagramhighlighted lineδ = 0.0960
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]960 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation960 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
P21/c
Cell parameters
a = 7.66 Å · b = 19.87 Å · c = 10.27 Å
Cell angles
β = 105.1 °
Ratio a:b:c
1 : 2.594 : 1.341
Z
4
Morphology

Tabular crystals

Type-locality form

Minute tabluar crystals.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1515.999239.985
48.85%
19KPotassiumPotassium339.098117.294
23.88%
6CCarbonCarbon612.01172.066
14.67%
26FeIronIron155.84555.845
11.37%
1HHydrogenHydrogen61.0086.048
1.23%
Total491.238100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Minguzziet

In other languages

German
Minguzzit
Italian
Minguzzite

Classification

Strunz
10th ed.

10.AB.25

  • 10Organic CompoundsClass
  • 10.ASalts of organic acidsDivision
  • 10.ABOxalatesGroup
  • 10.AB.25MinguzziteSpecies
Dana
8th ed.

50.01.04.01

  • 50Organic CompoundsClass
  • 50.01OxalatesType
  • 50.01.04— unnamed intermediate level —Group
  • 50.01.04.01MinguzziteSpecies
CIM

31.1.10

  • 31Oxalates, Citrates, Mellitates and AcetatesClass
  • 31.1OxalatesGroup
  • 31.1.10MinguzziteSpecies

Literature, links & citation

Citations
  1. 1938Analytical Chemistry (1938) 10: 488.
  2. 1955Garavelli, C.L. (1955) Un nuovo minerale tra i prodotti secondari del giacimento di Capo Calamita (Isola d'Elba). Atti della Accademia Nazionale dei Lincei. Rendiconti della Classe di Scienze Fisiche, Matematiche e Naturali: 18: 392-402.
  3. 1956Fleischer, M. (1956) New mineral names. American Mineralogist, 41 (3-4). 370-372
  4. 1958Herpin, P. (1958) Structure cristalline des trioxalates complexes de potassium II. — Structure du ferrotrioxalate de potassium racémique et comparaison avec les trioxalates complexes actifs. Bulletin de la Société Française de Minéralogie et de Cristallographie: 81: 245-256.
  5. 2005(2005) Minguzzite. Handbook of Mineralogy. Mineralogical Society of America
