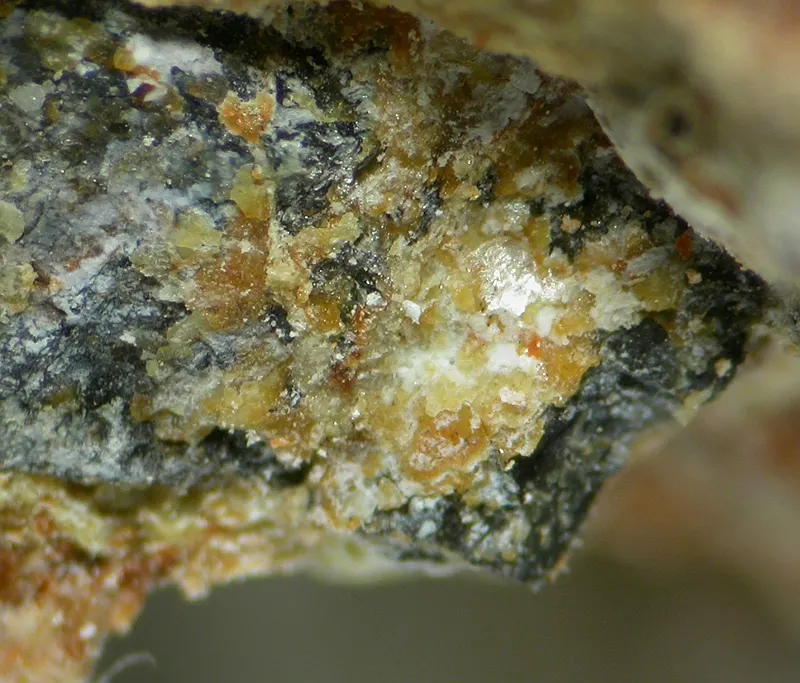

Mundite

Al(UO2)3(PO4)2(OH)3 · 5.5H2O
IMA status
  • Approved
IMA symbol
Mud
Discovered
1980
IMA approved
1980
Also known as
  • IMA1980-075
  • Mundiet

Where it forms, where it's found

Geological setting

Oxidized zone of a complex granite pegmatite

Type locality
Kobokobo pegmatite
  1. Mwenga Territory
  2. South Kivu
  3. DR Congo

-3.1000°, 28.1333°

2recorded occurrences
Source · OpenStreetMap

Radioactivity

Physical

Transparency
Transparent
Colour
Golden yellow
Cleavage
Perfect

(010), (100), (001) perfect

Density
4.295 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 33° · 2V calc = 32°
Refractive index
1.62 – 1.688
Surface relief
High
Principal indices
nα 1.62 · nβ 1.682 · nγ 1.688
Pleochroism
Weak
Dispersion
r < v strong
UV response
Pale green in longwave and shortwave UV
Notes

X = b; Y = c; Z = a

Michel-Lévy diagramhighlighted lineδ = 0.0680
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]680 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation680 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Orthorhombic
Cell parameters
a = 17.08(3) Å · b = 30.98(5) Å · c = 13.76 Å
Ratio a:b:c
1 : 1.814 : 0.806
Z
16
Morphology

rectangular plates, flattened on (010), elongated on (001)

Comment

Point Group: 2/m 2/m 2/m or mm2; Space Group: Pmcn or P21cn

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
92UUraniumUranium3238.029714.087
60.67%
8OOxygenOxygen22.515.999359.978
30.58%
15PPhosphorusPhosphorus230.97461.948
5.26%
13AlAluminiumAluminium126.98226.982
2.29%
1HHydrogenHydrogen141.00814.112
1.20%
Total1177.107100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1980-075
  • Mundiet

In other languages

French
Mundite
German
IMA 1980-075 · Mundit
Italian
Mundite

Classification

Strunz
10th ed.

8.EC.30

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.EUranyl phosphates and arsenatesDivision
  • 8.ECUO2:RO4 = 3:2Group
  • 8.EC.30MunditeSpecies
Dana
8th ed.

42.07.13.01

  • 42Hydrated Phosphates, Etc.containing Hydroxyl or HalogenClass
  • 42.07(AB)2(XO4)Zq·xH2OType
  • 42.07.13— unnamed intermediate level —Group
  • 42.07.13.01MunditeSpecies
CIM

19.11.25

  • 19PhosphatesClass
  • 19.11Phosphates of UGroup
  • 19.11.25MunditeSpecies

Literature, links & citation

Citations
  1. 1981Deliens, Michel, Piret, Paul (1981) Les phosphates d'uranyle et d'aluminium de Kobokobo. V. La mundite, nouveau minéral. Bulletin de Minéralogie, 104 (5) 669-671 doi:10.3406/bulmi.1981.7553DOI: 10.3406/bulmi.1981.7553
  2. 1982Fleischer, M., Cabri, L.J., Chao, G.Y., Mandarino, J.A., Pabst, A. (1982) New mineral names. American Mineralogist: 67: 621-624.
  3. 2005(2005) Mundite. Handbook of Mineralogy. Mineralogical Society of America
