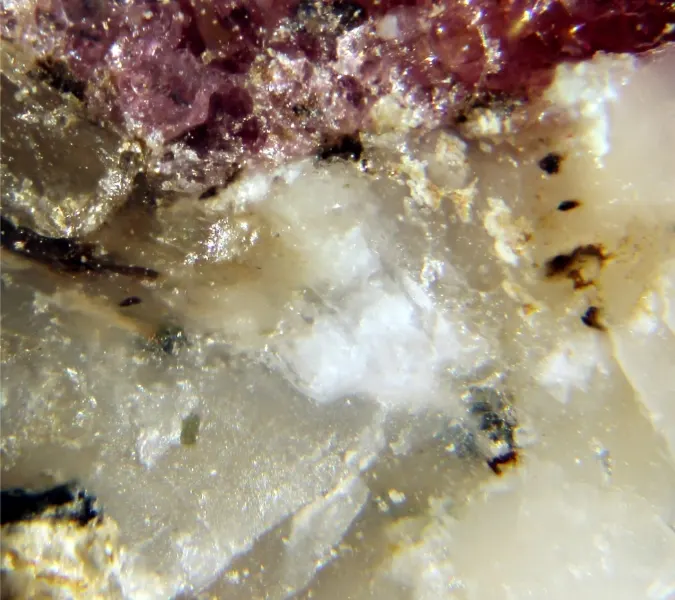

Nabaphite

NaBa(PO4) · 9H2O
IMA status
  • Approved
IMA symbol
Nbh
Discovered
1982
Also known as
  • IMA1981-058
  • Nabaphiet
  • Nabaphita

Where it forms, where it's found

Type locality
Material'naya Adit
  1. Yukspor Mountain
  2. Murmansk Oblast
  3. Russia

67.6406°, 33.7424°

2recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789102/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous
Transparency
Transparent
Colour
Colourless

Turbid with alteration. Colorless, snow-white with alteration.

Streak
White
Cleavage
Distinct/Good

(100), distinct

Fracture
Sub-Conchoidal
Density
2.3 g/cm³

Optical

Optical type
Isotropic
Surface relief
Moderate
Principal indices
n 1.504
UV response
Pale violet under UV.
Isotropy testPPL ↔ XPL diagnostic
PPL intrinsic colour; no change on stage rotation
XPL extinct at every orientation
Single index
n = 1.504

Crystallography

Crystal system
Isometric
Space group
#198
Cell parameters
a = 10.711(9) Å
Z
4
Type-locality form

Irregular grains, to 5 mm.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1315.999207.987
49.82%
56BaBariumBarium1137.327137.327
32.90%
15PPhosphorusPhosphorus130.97430.974
7.42%
11NaSodiumSodium122.99022.990
5.51%
1HHydrogenHydrogen181.00818.144
4.35%
Total417.422100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1981-058
  • Nabaphiet
  • Nabaphita

In other languages

German
Nabaphit
Italian
Nabaphite
Russian
набафит

Classification

Strunz
10th ed.

8.CJ.15

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.CPhosphates without additional anions, with H2ODivision
  • 8.CJWith only large cationsGroup
  • 8.CJ.15NabaphiteSpecies
Dana
8th ed.

40.01.03.02

  • 40Hydrated Normal Phosphates, Arsenates and VanadatesClass
  • 40.01AB(XO4)·xH2OType
  • 40.01.03— unnamed intermediate level —Group
  • 40.01.03.02NabaphiteSpecies
CIM

19.5.6

  • 19PhosphatesClass
  • 19.5Phosphates of Sr and BaGroup
  • 19.5.6NabaphiteSpecies

Literature, links & citation

Citations
  1. 1982Khomyakov, A.P., Korobitsyn, M.F., Men'shikov, Y.P., Polezhaeva, L.I. (1982) Nabaphite, NaBaPO4·9H2O, a new mineral. Doklady Akademii Nauk SSSR, 266, 707-710.
  2. 1982Baturin, S.V., Malinovskii, Y.A., Belov, N.V. (1982) The crystal structure of nabaphite NaBa[PO4]·9H2O. Doklady Akademii Nauk SSSR: 266: 624-627.
  3. 1983Dunn, Pete J., Fleischer, Michael (1983) New mineral names. American Mineralogist, 68 (5-6) 642-645
  4. 2005(2005) Nabaphite. Handbook of Mineralogy. Mineralogical Society of America
