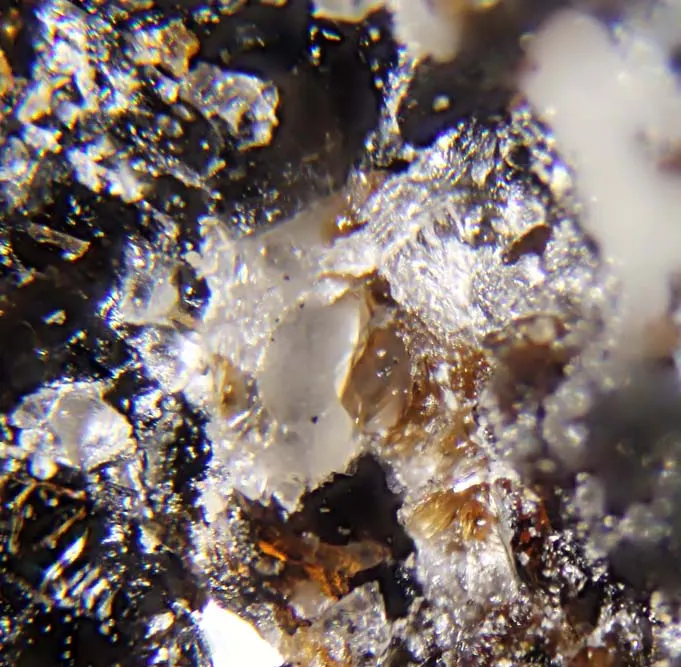

Nasonite

Ca4Pb6(Si2O7)3Cl2
IMA status
  • Approved
  • Grandfathered
IMA symbol
Nso
Discovered
1899
Also known as
  • Nasoniet

Where it forms, where it's found

Type locality
Parker shaft
  1. Franklin Mine
  2. Franklin
  3. Sussex County
  4. New Jersey
  5. USA

41.1203°, -74.5828°

8recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789104/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
White · rarely yellow or blue-green
Streak
White
Cleavage
Distinct/Good

Good on (0001) indistinct prismatic

Density
5.42 g/cm³

Optical

Optical type
Uniaxial (+)
Refractive index
1.913 – 1.971
Surface relief
Very high
Principal indices
nω 1.913 – 1.945 · nε 1.923 – 1.971
Michel-Lévy diagramhighlighted lineδ = 0.0180
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]180 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation180 nm
Order1st order
XPL colour

Crystallography

Crystal system
Hexagonal
Space group
#108
Cell parameters
a = 10.08 Å · c = 13.27 Å
Z
2
Morphology

Prismatic with (1010), (1120), terminated by (1011); commonly granular, massive.

Type-locality form

Rare crystals are prismatic; commonly granular, massive.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
82PbLeadLead6207.2001243.200
62.82%
8OOxygenOxygen2115.999335.979
16.98%
14SiSiliconSilicon628.085168.510
8.52%
20CaCalciumCalcium440.078160.312
8.10%
17ClChlorineChlorine235.45070.900
3.58%
Total1978.901100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Fe
  • Mn
  • Zn
  • H2O

Synonyms

  • Nasoniet

In other languages

German
Nasonit
Italian
Nasonite

Classification

Strunz
10th ed.

9.BE.77

  • 9SilicatesClass
  • 9.BSorosilicatesDivision
  • 9.BESi2O7 groups, with additional anions; cations in octahedral [6] and greater coordinationGroup
  • 9.BE.77NasoniteSpecies
Dana
8th ed.

56.02.11.01

  • 56Sorosilicates Si2o7 Groups, with Additional O, Oh, F and H2oClass
  • 56.02Si2O7 Groups and O, OH, F, and H2O with cations in [4] and/or >[4] coordinationType
  • 56.02.11— unnamed intermediate level —Group
  • 56.02.11.01NasoniteSpecies
CIM

17.3.8

  • 17Silicates Containing other AnionsClass
  • 17.3Silicates with chloride (including aluminosilicates)Group
  • 17.3.8NasoniteSpecies

Literature, links & citation

Citations
  1. 1899Penfield, Samuel Lewis; Hyde, Warren Charles (1899) Some New Minerals from the Zinc Mines at Franklin, N. J., and Note Concerning the Chemical Composition of Ganomalite. American Journal Of Science, S. 3 Vol. 8. 339-353
  2. 1902(1902) Frank Lewis Nason. Frank Leslie's Popular Monthly: 89: 310.
  3. 1902(1902) The Atlantic Monthly: 89: 45.
  4. 1916Aminoff, G. (1916) Note on nasonite from Långbanshyttan. Geologiska Föreningen i Stockholm Förhandlingar, 38 (6). 473-476 doi:10.1080/11035891609444410DOI: 10.1080/11035891609444410
  5. 1951Frondel, Clifford, Bauer, L. H. (1951) Nasonite and its relation to pyromorphite. American Mineralogist, 36 (7-8) 534-537
