Natrolemoynite

Na4Zr2Si10O26 · 9H2O
IMA status
  • Approved
IMA symbol
Nlm
IMA approved
1996
Also known as
  • IMA1996-063
  • Natrolemoyniet

Where it forms, where it's found

Geological setting

In pegmatites cutting nepheline syenite.

Type locality
Poudrette quarry (De-Mix quarry
  1. Demix quarry
  2. Uni-Mix quarry
  3. Carrière Mont Saint-Hilaire
  4. MSH)
  5. Mont Saint-Hilaire
  6. La Vallée-du-Richelieu RCM
  7. Montérégie
  8. Québec
  9. Canada

45.5628°, -73.1417°

1recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789103/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous to subadamantine
Transparency
Transparent · Translucent
Colour
colorless to white (occasionally with a slightly pink to red tinge)
Streak
White
Tenacity
brittle
Cleavage
Perfect

(100) and (010) perfect (001) poor

Fracture
Irregular/Uneven
Density
2.47 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 63° · 2V calc = 57°
Refractive index
1.533 – 1.567
Surface relief
Moderate
Principal indices
nα 1.533 · nβ 1.559 · nγ 1.567
Pleochroism
Non-pleochroic
Dispersion
crossed axial plain, weak
UV response
No fluorescence in either short- or long-wave ultraviolet radiation.
Michel-Lévy diagramhighlighted lineδ = 0.0340
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]340 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation340 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
C2/m
Cell parameters
a = 10.515 Å · b = 16.2534 Å · c = 9.1029 Å
Cell angles
β = 105.462 °
Ratio a:b:c
1 : 1.546 : 0.866
Unit cell volume
1499.4 ų
Z
2
Morphology

(100) (010) and (001) dominant, also minor pinacoid-like forms

Twinning

None mentioned

Type-locality form

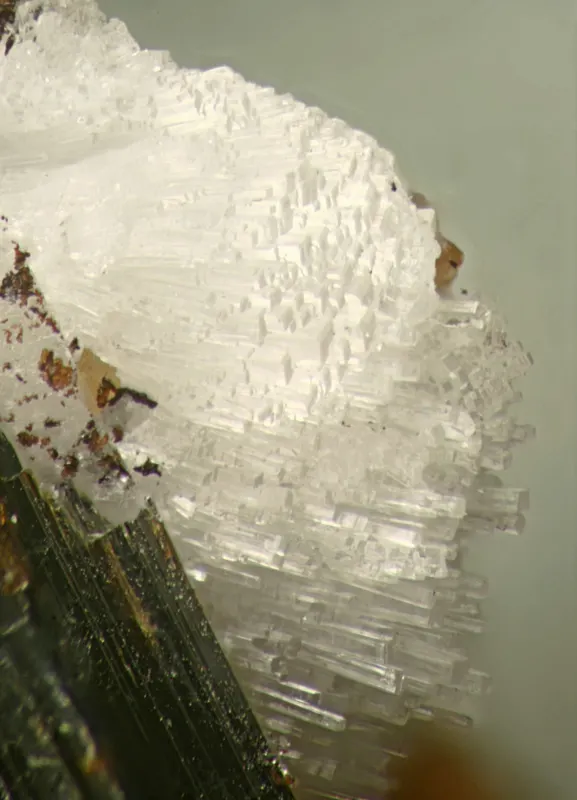

Bladed to prismatic crystals to 1x2 mm, typically forming compact radial aggregates.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen3515.999559.965
49.41%
14SiSiliconSilicon1028.085280.850
24.78%
40ZrZirconiumZirconium291.224182.448
16.10%
11NaSodiumSodium422.99091.960
8.11%
1HHydrogenHydrogen181.00818.144
1.60%
Total1133.367100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1996-063
  • Natrolemoyniet

In other languages

German
IMA 1996-063 · Natrolemoynit
Italian
Natrolemoynite

Classification

Strunz
10th ed.

9.DP.35

  • 9SilicatesClass
  • 9.DInosilicatesDivision
  • 9.DPTransitional ino-phyllosilicate structuresGroup
  • 9.DP.35NatrolemoyniteSpecies

Literature, links & citation

Citations
  1. 1969Perrault, G., Semenov, E. I., Bikova, A. V., Captinova, T. A. (1969) La lemoynite, un nouveau silicate hydraté de Zirconium et de sodium de St. Hilaire, Québec. The Canadian Mineralogist, 9 (5) 585-596
  2. 2001McDonald, Andrew M., Chao, George Y. (2001) Natrolemoynite, a new hydrated sodium zirconosilicate from Mont Saint-Hilaire Quebec: description and structure determination. The Canadian Mineralogist, 39 (5) 1295-1306 doi:10.2113/gscanmin.39.5.1295 DOI: 10.2113/gscanmin.39.5.1295
  3. 2022(2022) Natrolemoynite. Handbook of Mineralogy. Mineralogical Society of America
