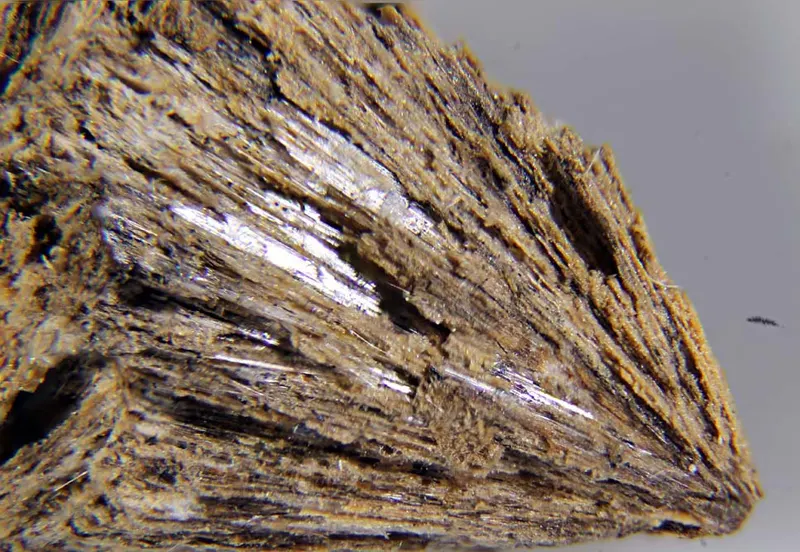

Nchwaningite

Mn2SiO3(OH)2 · H2O
IMA status
  • Approved
IMA symbol
Nwg
Discovered
1995
Also known as
  • IMA1994-002

Where it forms, where it's found

Geological setting

Fault zones in a manganese deposit. Formation temperature is estimated to be in a range of 270-420 C, with pressures between 0.2-1.0 kbar.

Type locality
N'Chwaning II Mine
  1. N'Chwaning Mines
  2. Joe Morolong Local Municipality
  3. John Taolo Gaetsewe District Municipality
  4. Northern Cape
  5. South Africa

-27.1361°, 22.8647°

2recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789105.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous
Transparency
Transparent
Colour
Light brown
Streak
White
Cleavage
Perfect

Two perfect cleavages, parallel to (100) and (010).

Density
3.202 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 54° · 2V calc = 56°
Refractive index
1.681 – 1.69
Surface relief
High
Principal indices
nα 1.681 · nβ 1.688 · nγ 1.690
Dispersion
weak to distinct
UV response
No fluorescence under LW or SW UV.
Notes

Y = a, X = b, Z = c

Michel-Lévy diagramhighlighted lineδ = 0.0090
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]90 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation90 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Space group
#29
Cell parameters
a = 12.672(9) Å · b = 7.217(3) Å · c = 5.341(2) Å
Ratio a:b:c
1 : 0.570 : 0.421
Morphology

Platy parallel to (010) and terminated by subordinate (110) faces. The point is formed by faces of the type (h0l), predominantly (201) and (301).

Type-locality form

Radiating balls, up to 5 mm in diameter, of acicular crystals. Crystals to 1.0 x 0.2 x 0. 1 mm.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
25MnManganeseManganese254.938109.876
46.17%
8OOxygenOxygen615.99995.994
40.34%
14SiSiliconSilicon128.08528.085
11.80%
1HHydrogenHydrogen41.0084.032
1.69%
Total237.987100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Al
  • Fe
  • Mg
  • Ca

Synonyms

  • IMA1994-002

In other languages

French
Nchwaningite
German
IMA 1994-002 · Nchwaningit
Italian
Nchwaningite

Classification

Strunz
10th ed.

9.DB.30

  • 9SilicatesClass
  • 9.DInosilicatesDivision
  • 9.DBInosilicates with 2-periodic single chains, Si2O6; Pyroxene-related mineralsGroup
  • 9.DB.30NchwaningiteSpecies
Dana
8th ed.

65.01.08.01

  • 65Inosilicates Single-width, Unbranched Chains, (w=1)Class
  • 65.01Single-Width Unbranched Chains, W=1 with chains P=2Type
  • 65.01.08— unnamed intermediate level —Group
  • 65.01.08.01NchwaningiteSpecies

Literature, links & citation

Citations
  1. 1995Nyfeler, Daniel, Armbruster, Thomas, Dixon, Roger, Bermanec, Vladimir (1995) Nchwaningite, Mn2+2SiO3(OH)2.H2O, a new pyroxene-related chain silicate from the N'chwaning Mine, Kalahari manganese field, South Africa. American Mineralogist, 80 (3-4). 377-386 doi:10.2138/am-1995-3-419 DOI: 10.2138/am-1995-3-419
  2. 1996Mandarino, Joseph A. (1996) Abstracts of New Mineral Descriptions. The Mineralogical Record, 27 (3) 201-204
