Nealite

Pb4Fe(AsO3)2Cl4 · 2H2O
IMA status
  • Approved
IMA symbol
Nea
Discovered
1980
Also known as
  • IMA1979-050
  • Nealiet
  • Nealite-(H2O)

Where it forms, where it's found

Geological setting

Ancient refinery slags which interacted with sea water.

Type locality
Lavrion Slag Localities
  1. Lavreotiki
  2. East Attica
  3. Attica
  4. Greece
13recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789104/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Yellow brown to orange brown
Streak
Pale yellow to pale orange
Tenacity
very brittle
Cleavage
None Observed
Fracture
Irregular/Uneven
Density
5.89 g/cm³

Optical

Optical type
Biaxial
Refractive index
2
Surface relief
Very high
Principal indices
nβ 2
Pleochroism
Non-pleochroic
Dispersion
relatively weak

Crystallography

Crystal system
Triclinic
Space group
#2
Cell parameters
a = 6.53 Å · b = 10.23 Å · c = 5.58 Å
Cell angles
α = 96.41 ° · β = 89.52 ° · γ = 97.82 °
Ratio a:b:c
1 : 1.567 : 0.855
Z
1
Morphology

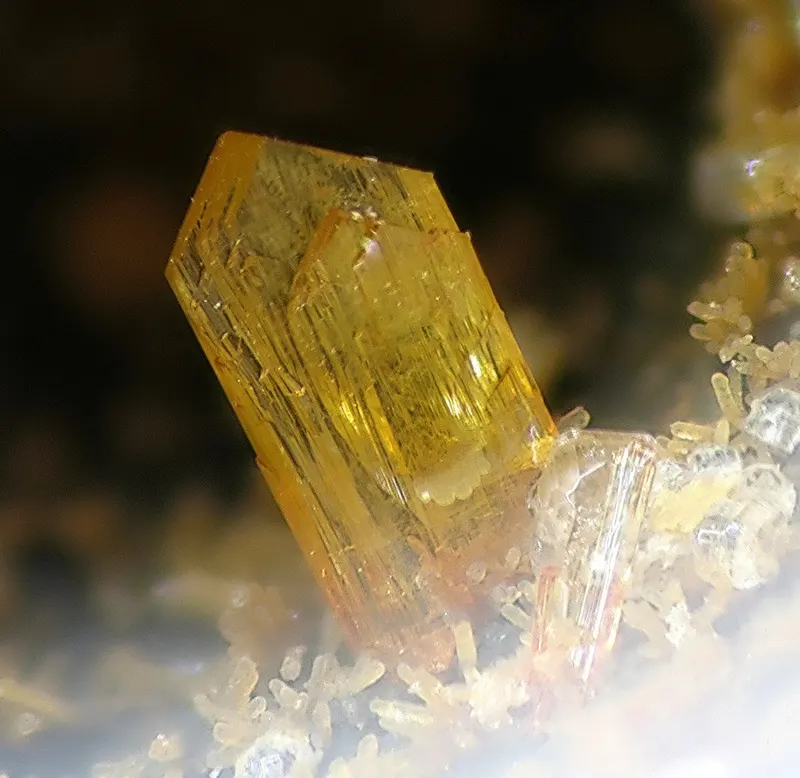

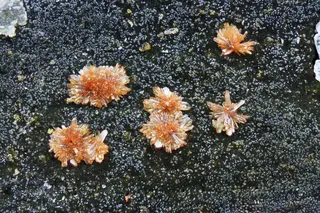

Prismatic to bladed in habit, occurring in clusters, which are either radially divergent or exhibit parallel growth. Bladed crystals tabular on (010), and elongated and striated parallel to [001].

Twinning

Always twinned with the two-fold twin axis in [001].

Type-locality form

Prismatic or bladed crystals in radial or parallel growth.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
82PbLeadLead4207.200828.800
63.35%
33AsArsenicArsenic274.922149.844
11.45%
17ClChlorineChlorine435.450141.800
10.84%
8OOxygenOxygen815.999127.992
9.78%
26FeIronIron155.84555.845
4.27%
1HHydrogenHydrogen41.0084.032
0.31%
Total1308.313100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1979-050
  • Nealiet
  • Nealite-(H2O)

In other languages

French
Nealite
German
Nealit
Spanish
nealita
Italian
Nealite · Nealite-(H2O)

Classification

Strunz
10th ed.

4.JD.05

  • 4OxidesClass
  • 4.JArsenites, antimonites, bismuthites, sulfites, selenites, tellurites; iodatesDivision
  • 4.JDArsenites, antimonites, bismuthites; with additional anions, with H2OGroup
  • 4.JD.05NealiteSpecies
Dana
8th ed.

46.01.06.01

  • 46Antimonites and Arsenites Containing Hydroxyl or HalogenClass
  • 46.01(AB)m(XO3)pZqType
  • 46.01.06— unnamed intermediate level —Group
  • 46.01.06.01NealiteSpecies
CIM

22.2.18

  • 22Phosphates, Arsenates or Vanadates with other AnionsClass
  • 22.2Phosphates, arsenates or vanadates with chlorideGroup
  • 22.2.18NealiteSpecies

Literature, links & citation

Citations
  1. 1980Dunn, Pete J., Rouse, Roland C. (1980) Nealite: a New Mineral from Laurion, Greece. The Mineralogical Record, 11 (5) 299-301
  2. 1993Pertlik, F., Schnorrer, G. (1993) A re-appraisal of the chemical formula of nealite, Pb4Fe(AsO3)2Cl4 . 2H2O, on the basis of a crystal structure determination. Mineralogy and Petrology, 48 (2) 193-200 doi:10.1007/bf01163097 DOI: 10.1007/bf01163097
  3. 1993Guiseppetti, G., Mazzi, F., Tadini, C. (1993) The crystal structure of nealite. Neues Jahrbuch für Mineralogie - Monatshefte, 1993. 278-288
  4. 1994Jambor, John L., Grew, Edward S. (1994) New Mineral Names. American Mineralogist, 79 (3-4) 387-391
