Nestolaite

CaSeO3 · H2O
IMA status
  • Approved
IMA symbol
Ntl
IMA approved
2013
Also known as
  • IMA2013-074
  • Nestolaiet

Where it forms, where it's found

Geological setting

Sandstone

Type locality
Little Eva Mine
  1. Yellow Cat Mesa
  2. Thompsons Mining District
  3. Grand County
  4. Utah
  5. USA

38.8381°, -109.5264°

3recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789102.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Light violet
Streak
White
Tenacity
brittle
Cleavage
Perfect

Perfect on (100)

Fracture
Irregular/Uneven
Density
3.18 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 55° · 2V calc = 51°
Refractive index
1.642 – 1.722
Surface relief
High
Principal indices
nα 1.642 · nβ 1.656 · nγ 1.722
Pleochroism
Non-pleochroic

It does not show pleochroism but has strong pseudo-absorption caused by high birefringence

UV response
none
Michel-Lévy diagramhighlighted lineδ = 0.0800
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]800 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation800 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
P21/c
Cell parameters
a = 7.6502(9) Å · b = 6.7473(10) Å · c = 7.9358(13) Å
Cell angles
β = 108.542(12) °
Ratio a:b:c
1 : 0.882 : 1.037
Unit cell volume
388.37 ų
Z
4

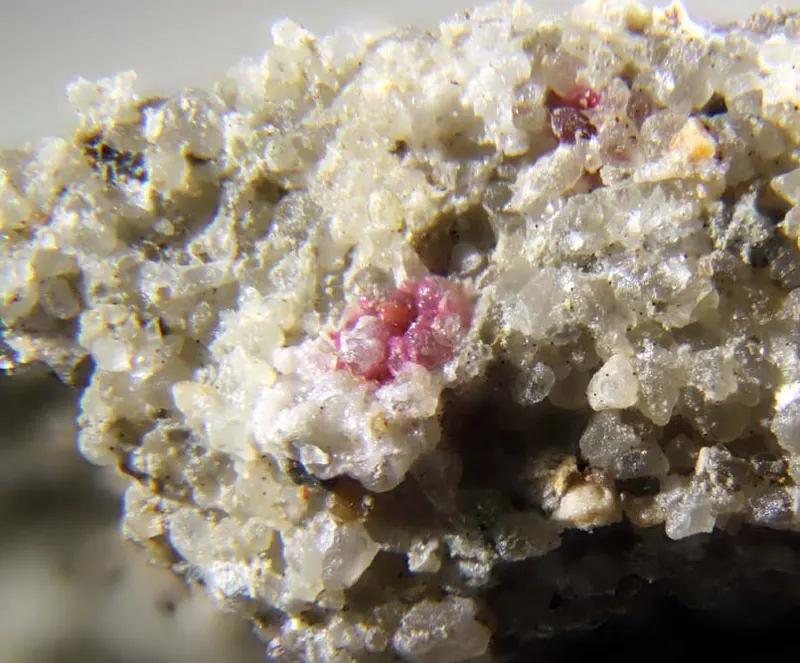

Morphology

As mm-large aggregates consisting of tightly intergrown oblique-angled, flattened to acicular crystals up to 30 μm long and up to 7 μm (very rarely up to 15 μm) thick.

Type-locality form

On sandstone matrix as rounded aggregates up to 2 mm across and up to 0.05 mm thick; aggregates consist of flattened to acicular crystals, up to 30 x 7 µm, with oblique angles

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
34SeSeleniumSelenium178.97178.971
42.67%
8OOxygenOxygen415.99963.996
34.58%
20CaCalciumCalcium140.07840.078
21.66%
1HHydrogenHydrogen21.0082.016
1.09%
Total185.061100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA2013-074
  • Nestolaiet

In other languages

German
IMA 2013-074 · Nestolait
Italian
nestolaite

Classification

Strunz
10th ed.

4.JH.30

  • 4OxidesClass
  • 4.JArsenites, antimonites, bismuthites, sulfites, selenites, tellurites; iodatesDivision
  • 4.JHSelenites without additional anions, with H2OGroup
  • 4.JH.30NestolaiteSpecies

Literature, links & citation

Citations
  1. 2013Williams, P. A., Hatert, F., Pasero, M., Mills, S. J. (2013) New minerals and nomenclature modifications approved in 2013. CNMNC Newsletter No 18. Mineralogical Magazine, 77 (8) 3249-3258 doi:10.1180/minmag.2013.077.8.15DOI: 10.1180/minmag.2013.077.8.15
  2. 2014Kasatkin, A. V., Plášil, J., Marty, J., Agakhanov, A. A., Belakovskiy, D. I., Lykova, I. S. (2014) Nestolaite, CaSeO3·H2O, a new mineral from the Little Eva mine, Grand County, Utah, USA. Mineralogical Magazine, 78 (3) 497-505 doi:10.1180/minmag.2014.078.3.02 DOI: 10.1180/minmag.2014.078.3.02
  3. 2016(2016) Nestolaite. Handbook of Mineralogy. Mineralogical Society of America
