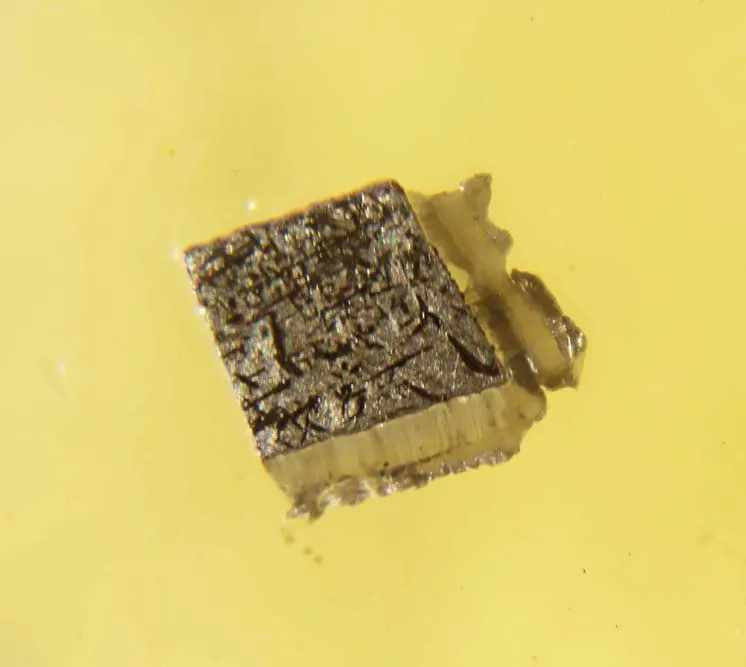

Nickelphosphide

Ni3P
IMA status
  • Approved
IMA symbol
Nic
Also known as
  • IMA1998-023

Where it forms, where it's found

Geological setting

Iron meteorite.

Type locality
Butler meteorite
  1. Bates County
  2. Missouri
  3. USA

38.3000°, -94.3667°

21recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789106.5 – 7/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Metallic
Transparency
Opaque
Tenacity
brittle
Cleavage
None Observed
Density
7.61 g/cm³

Optical

Optical colour
White with a pink-yellow tint.
Anisotropism
No anisotropy observed in air, but weakly anisotropic in yellowish pinkish colors in oil (n = 1.515).
Bireflectance
none
Tropism
Anisotropic
Reflectance R%
(41.6,43.0) 440, (42.3,43.9) 460, (43.0,44.6) 480, (43.7,45.5) 500, (44.7,46.5) 520, (45.7,47.5) 540, (46.8,48.3) 560, (47.6,49.1) 580, (48.6,50.0) 600, (49.4,50.7) 620, (50.3,51.7) 640, (51.3,52.5) 660, (52.1,53.3) 680, (53.1,54.3) 700
Reflected-light panel
47.2 %anisotropic · dual curve
Specimen sRGB 248, 167, 87
White reference100 % reflector under same lamp
R₁ R₂
Mode
Bireflectance
none
Anisotropism
No anisotropy observed in air, but weakly anisotropic in yellowish pinkish colors in oil (n = 1.515).
Reflected colour
White with a pink-yellow tint.

Crystallography

Crystal system
Tetragonal
Space group
#127
Cell parameters
a = 8.9546(1) Å · c = 4.38714(8) Å
Z
8
Type-locality form

Idiomorphous isometric grains, to 30 μm, in kamacite lamellae, and as xenomorphous elongate inclusions, up to 200 μm long, in larger kamacite spindles.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
28NiNickelNickel358.693176.079
85.04%
15PPhosphorusPhosphorus130.97430.974
14.96%
Total207.053100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1998-023

In other languages

German
IMA 1998-023 · Nickelphosphid
Italian
Nickelfosfuro · Nickelphosphide
Chinese
磷化镍
Russian
Фосфиды никеля

Classification

Strunz
10th ed.

1.BD.05

  • 1ElementsClass
  • 1.BMetallic Carbides, Silicides, Nitrides, Phosphides and HydridesDivision
  • 1.BDPhosphidesGroup
  • 1.BD.05NickelphosphideSpecies

Group, growth & confusion

Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. 1999Britvin, S. N., Kolomensky, V. D., Boldyreva, M. M., Bogdanova, A. N., Kretser, Y. L., Boldyreva, O. N., Rudashesky, N. S. (1999) Nickelphosphide (Ni,Fe)3P, the nickel analog of schreibersite. Zapiski Vserossijskogo Mineralogicheskogo Obshchestva, 128 (3) 64-72
  2. 2005Geist, V., Wagner, G., Nolze,G., and Moretzki, O. (2005) Investigations of the meteoritic mineral (Fe,Ni)3P. Crystal Research Technology: 40: 52-64.
  3. 2021(2021) Nickelphosphide. Handbook of Mineralogy. Mineralogical Society of America
