Nishanbaevite

KAl2O(AsO4)(SO4)
IMA status
  • Approved
IMA symbol
Nbv
IMA approved
2019
Also known as
  • IMA2019-012
  • Nishanbaeviet

Where it forms, where it's found

Geological setting

Volcanic (de)sublimates.

Type locality
Arsenatnaya fumarole
  1. Second scoria cone
  2. Northern Breakthrough (North Breach)
  3. Great Fissure eruption (Main Fracture)
  4. Tolbachik Volcanic field
  5. Milkovsky District
  6. Kamchatka Krai
  7. Russia

55.6833°, 160.2333°

1recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Transparency
Transparent
Colour
Colourless in individuals and snow-white in aggregates.
Streak
White
Tenacity
brittle
Cleavage
None Observed
Fracture
Irregular/Uneven
Density
3.011 g/cm³

Optical

Optical type
Biaxial (-)
Refractive index
1.552 – 1.567
Surface relief
Moderate
Principal indices
nα 1.552 · nβ 1.567 · nγ 1.567
Pleochroism
Non-pleochroic
Michel-Lévy diagramhighlighted lineδ = 0.0150
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]150 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation150 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Space group
Pbcm
Cell parameters
a = 15.505(5) Å · b = 7.257(2) Å · c = 6.606(2) Å
Ratio a:b:c
1 : 0.468 : 0.426
Z
4
Twinning

X-shaped interpenetration twins

Parting
none
Type-locality form

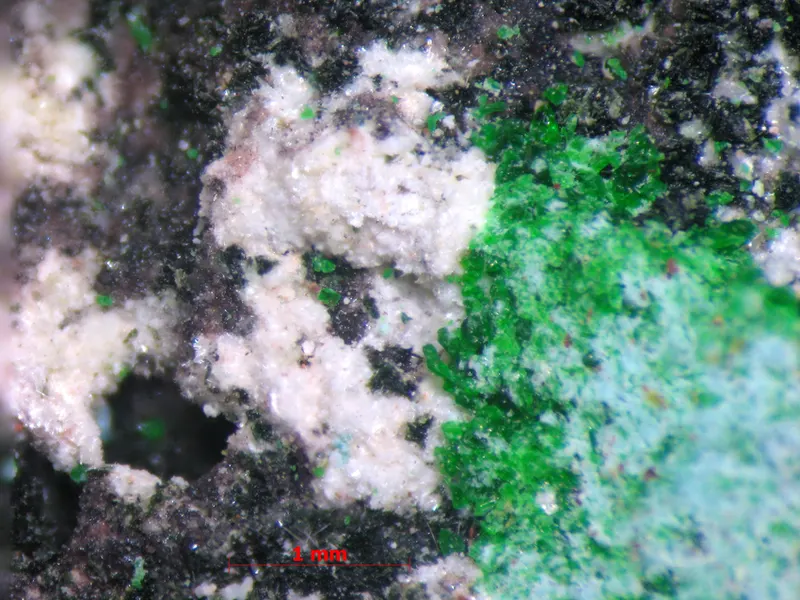

Long-prismatic or lamellar crystals, up to 0.03 mm, usually intergrown to form brush-like aggregates and crusts, up to 1.5 mm across.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen915.999143.991
41.85%
33AsArsenicArsenic174.92274.922
21.78%
13AlAluminiumAluminium226.98253.964
15.69%
19KPotassiumPotassium139.09839.098
11.36%
16SSulfurSulfur132.06032.060
9.32%
Total344.035100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA2019-012
  • Nishanbaeviet

In other languages

German
IMA 2019-012 · Nishanbaevit

Classification

Strunz
10th ed.

8.BK.30

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.BPhosphates, etc., with additional anions, without H2ODivision
  • 8.BKWith medium-sized and large cations, (OH, etc.):RO4 = 2:1, 2.5:1Group
  • 8.BK.30NishanbaeviteSpecies

Literature, links & citation

Citations
  1. 2020Miyawaki, Ritsuro, Hatert, Frédéric, Pasero, Marco, Mills, Stuart J. (2020) IMA Commission on New Minerals, Nomenclature and Classification (CNMNC) - Newsletter 52. European Journal of Mineralogy, 32 (1) 1-11 doi:10.5194/ejm-32-1-2020 DOI: 10.5194/ejm-32-1-2020
  2. 2022(2022) Nishanbaevite. Handbook of Mineralogy. Mineralogical Society of America
  3. 2023Pekov, Igor V., Zubkova, Natalia V., Yapaskurt, Vasiliy O., Belakovskiy, Dmitry I., Britvin, Sergey N., Agakhanov, Atali A., Turchkova, Anna G., Sidorov, Evgeny G., Kutyrev, Anton V., Blatov, Vladislav A., Pushcharovsky, Dmitry Y. (2023) Nishanbaevite, KAl2O(AsO4)(SO4), a new As/S-ordered arsenate-sulfate mineral of fumarolic origin. Mineralogy and Petrology, 117 (2) 247-257 doi:10.1007/s00710-022-00803-0DOI: 10.1007/s00710-022-00803-0
