Niveolanite

NaBe(CO3)(OH) · 2H2O
IMA status
  • Approved
IMA symbol
Nvl
IMA approved
2007
Also known as
  • IMA2007-032
  • Niveolaniet
  • Unnamed (MSH UK-113)

Where it forms, where it's found

Geological setting

Peralkaline pegmatite

Type locality
Poudrette quarry (De-Mix quarry
  1. Demix quarry
  2. Uni-Mix quarry
  3. Carrière Mont Saint-Hilaire
  4. MSH)
  5. Mont Saint-Hilaire
  6. La Vallée-du-Richelieu RCM
  7. Montérégie
  8. Québec
  9. Canada

45.5628°, -73.1417°

2recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Transparency
Transparent
Colour
Snow-white to pearl-white (aggregates) · colorless (individual crystals)
Streak
White
Tenacity
brittle
Cleavage
None Observed

Fibrous crystals are flexible.

Fracture
Splintery
Density
2.06 g/cm³

Optical

Optical type
Uniaxial (+)
Refractive index
1.469 – 1.502
Surface relief
Low
Principal indices
nω 1.469 · nε 1.502
Pleochroism
Non-pleochroic
UV response
Not fluorescent.
Notes

Positive elongation.

Michel-Lévy diagramhighlighted lineδ = 0.0330
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]330 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation330 nm
Order1st order
XPL colour

Crystallography

Crystal system
Tetragonal
Space group
#180
Cell parameters
a = 13.087 Å · c = 5.404 Å
Parting
None Observed
Type-locality form

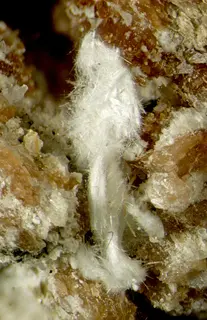

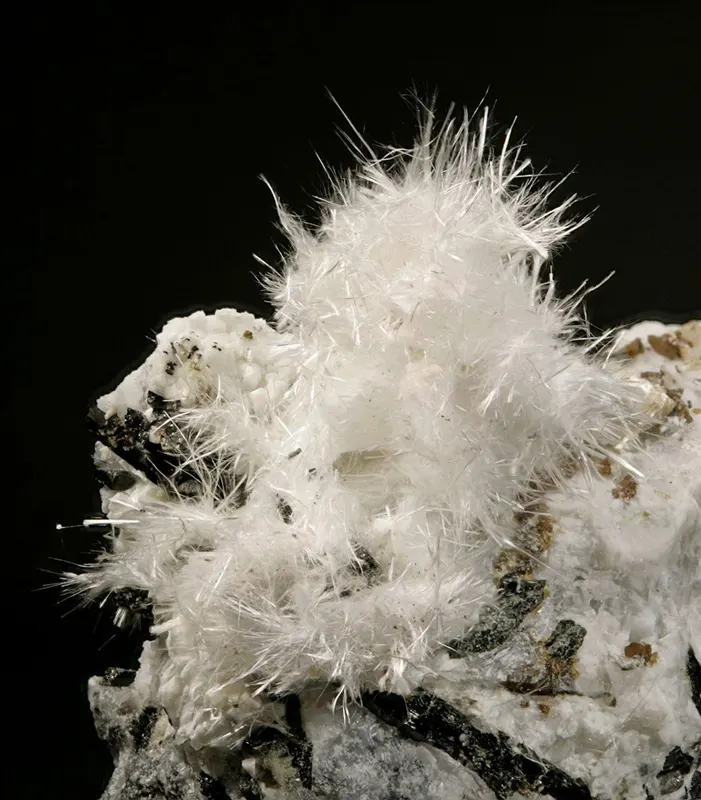

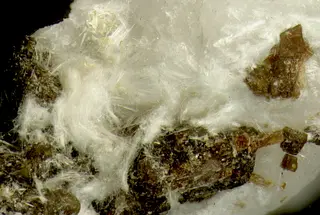

Soft fibrous (random, matted, radiating, subparallel, sheaf- or spray-like) aggregates up to 2 cm consisting of fibers up to 1.4 cm long and 0.01 mm thick. Rarely, aggregates of acicular crystals up to 1 cm long and 0.03 mm thick, with a tetragonal or octagonal cross-section, and fibrous pseudomorphs after eudidymite are observed.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen615.99995.994
66.18%
11NaSodiumSodium122.99022.990
15.85%
6CCarbonCarbon112.01112.011
8.28%
4BeBerylliumBeryllium19.0129.012
6.21%
1HHydrogenHydrogen51.0085.040
3.48%
Total145.047100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA2007-032
  • Niveolaniet
  • Unnamed (MSH UK-113)

In other languages

German
Niveolanit
Italian
niveolanite

Classification

Strunz
10th ed.

5.DC.35

  • 5CarbonatesClass
  • 5.DCarbonates with additional anions, with H2ODivision
  • 5.DCWith large cationsGroup
  • 5.DC.35NiveolaniteSpecies
Dana
8th ed.

16b.03.07

  • 16bHydrated Carbonates Containing Hydroxyl or HalogenClass
  • 16b.03AmBn(XO3)pZqxH2O & with (m+n):p = 2:1Type
  • 16b.03.07— unnamed intermediate level —Group
  • 16b.03.07NiveolaniteSpecies

Literature, links & citation

Citations
  1. 2008Pekov, I. V., Zubkova, N. V., Chukanov, N. V., Agakhanov, A. A., Belakovskiy, D. I., Horvath, L., Filinchuk, Y. E., Gobechiya, E. R., Pushcharovsky, D. Yu., Rabadanov, M. Kh. (2008) Niveolanite, the first natural beryllium carbonate, a new mineral species from Mont Saint-Hilaire, Quebec, Canada. The Canadian Mineralogist, 46 (5) 1343-1354 doi:10.3749/canmin.46.5.1343 DOI: 10.3749/canmin.46.5.1343
  2. 2011(2011) Niveolanite. Handbook of Mineralogy. Mineralogical Society of America
