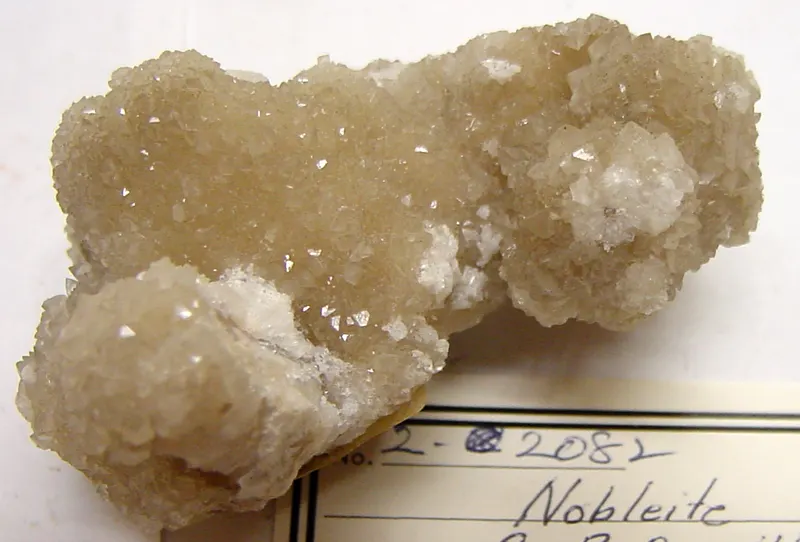

Nobleite

CaB6O9(OH)2 · 3H2O
IMA status
  • Approved
IMA symbol
Nob
Discovered
1955
Also known as
  • Nobelite
  • Nobleiet

Where it forms, where it's found

Geological setting

a recent incrustation produced by weathering of colemanite and priceite

Type locality
Unnamed Nobleite locality [1]
  1. Ryan
  2. Furnace Creek Mining District (Furnace Creek Borate Mining District)
  3. Inyo County
  4. California
  5. USA
7recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789103/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous · Pearly
Transparency
Transparent
Colour
Colorless · white
Streak
White
Tenacity
sectile
Cleavage
Perfect

perfect (100) and indistinct (001)

Fracture
Irregular/Uneven
Density
2.09 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 76° · 2V calc = 78°
Refractive index
1.5 – 1.554
Surface relief
Moderate
Principal indices
nα 1.500 · nβ 1.520 · nγ 1.554
Dispersion
relatively weak
UV response
Not fluorescent
Michel-Lévy diagramhighlighted lineδ = 0.0540
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]540 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation540 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Cell parameters
a = 14.57(1) Å · b = 8.01(1) Å · c = 9.84(1) Å
Cell angles
β = 111.77(3) °
Ratio a:b:c
1 : 0.550 : 0.675
Z
4
Twinning

Contact twins common on (100).

Type-locality form

Platy rhombic to pseudohexagonal crystals

Comment

Space group is P21/a

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1415.999223.986
66.47%
5BBoronBoron610.81064.860
19.25%
20CaCalciumCalcium140.07840.078
11.89%
1HHydrogenHydrogen81.0088.064
2.39%
Total336.988100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Nobelite
  • Nobleiet

In other languages

French
Nobléite
German
Nobleit
Spanish
Nobleíta
Italian
Nobleite

Classification

Strunz
10th ed.

6.FC.05

  • 6BoratesClass
  • 6.FHexaboratesDivision
  • 6.FCPhyllo-hexaboratesGroup
  • 6.FC.05NobleiteSpecies
Dana
8th ed.

26.06.06.01

  • 26Hydrated Borates Containing Hydroxyl or HalogenClass
  • 26.06HexaboratesType
  • 26.06.06— unnamed intermediate level —Group
  • 26.06.06.01NobleiteSpecies

Literature, links & citation

Citations
  1. 1961Erd, R. C., McAllister, J. F., Vlisidis, A. C. (1961) Nobleite, another new hydrous calcium borate from the Death Valley region, California. American Mineralogist, 46 (5-6) 560-571
  2. 1962Fleischer, Michael; Foster, Margaret D. (1962) New mineral names. American Mineralogist, 47 (5-6). 805-812
  3. 1967IMA (1967) International Mineralogical Association: Commission on New Minerals and Mineral Names. Mineralogical Magazine and Journal of the Mineralogical Society, 36 (277) 131-136 doi:10.1180/minmag.1967.036.277.20 DOI: 10.1180/minmag.1967.036.277.20
  4. 1994Burns, C. P., Hawthorne, F. C. (1994) Hydrogen bonding in tunellite. The Canadian Mineralogist, 32 (4) 895-902
  5. 1996Grew, Edward S.; Anovitz, Lawrence M. - Eds. (1996) Boron - Mineralogy, Petrology and Geochemistry. Reviews in Mineralogy Vol. 33. Mineralogical Society of America p.862
