Nöggerathite-(Ce)

(Ce,Ca)2Zr2(Nb,Ti)(Ti,Nb)2Fe2+O14
IMA status
  • Approved
IMA symbol
Nög-Ce
Discovered
2014
IMA approved
2018
Also known as
  • IMA2017-107
  • Nöggerathiet-(Ce)

Where it forms, where it's found

Geological setting

Sanidinite volcanic ejectum

Type locality
In den Dellen quarries
  1. Mendig
  2. Mendig
  3. Mayen-Koblenz
  4. Rhineland-Palatinate
  5. Germany

50.3929°, 7.2845°

3recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789105.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
Dark brownish-red to dark brownish-black
Streak
Red
Tenacity
brittle
Cleavage
None Observed
Fracture
Irregular/Uneven
Density
5.332 g/cm³

Crystallography

Crystal system
Orthorhombic
Space group
Cmca
Cell parameters
a = 7.2985(3) Å · b = 14.1454(4) Å · c = 10.1607(4) Å
Ratio a:b:c
1 : 1.938 : 1.392
Unit cell volume
1048.99 ų
Z
7
Type-locality form

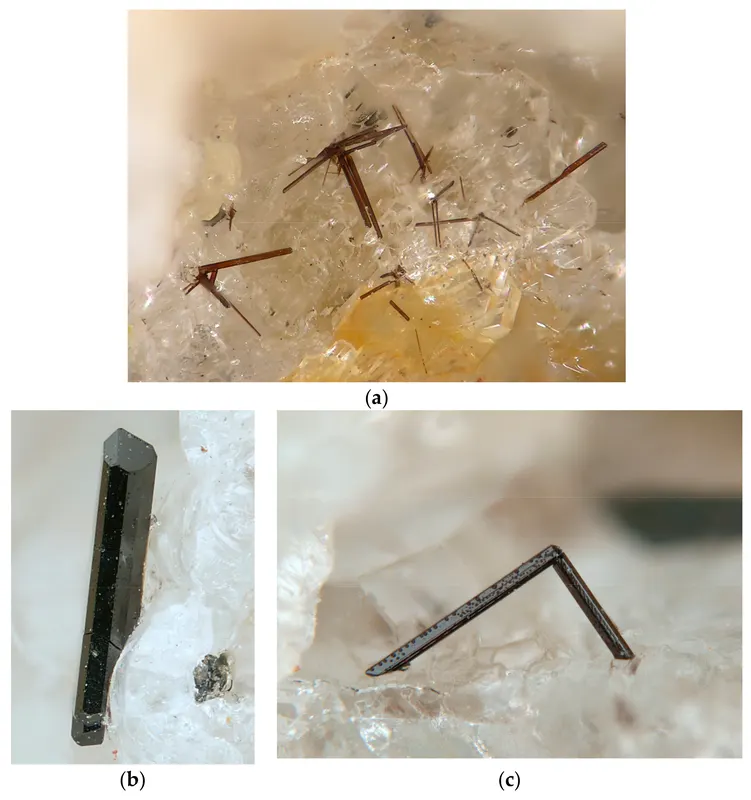

Nöggerathite-(Ce) forms isolated, prismatic crystals in cavities in a sanidinite ejectum

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
58CeCeriumCerium2140.116280.232
22.51%
41NbNiobiumNiobium392.906278.718
22.39%
8OOxygenOxygen1415.999223.986
17.99%
40ZrZirconiumZirconium291.224182.448
14.65%
22TiTitaniumTitanium347.867143.601
11.53%
20CaCalciumCalcium240.07880.156
6.44%
26FeIronIron155.84555.845
4.49%
Total1244.986100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA2017-107
  • Nöggerathiet-(Ce)

In other languages

German
IMA 2017-107 · Nöggerathit-(Ce)

Classification

Strunz
10th ed.

4.DH.30

  • 4OxidesClass
  • 4.DMetal: Oxygen = 1:2 and similarDivision
  • 4.DHWith large (+- medium-sized) cations; sheets of edge-sharing octahedraGroup
  • 4.DH.30Nöggerathite-(Ce)Species

Group, growth & confusion

Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. 2000Della Ventura, G., Bellatreccia, F., Williams, C. T. (2000) Zirconolite with Significant REE ZrNb(Mn,Fe)O7 from a Xenolith Of the Laacher See Eruptive Center, Eifel Volcanic Region, Germany. The Canadian Mineralogist, 38 (1) 57-65 doi:10.2113/gscanmin.38.1.57 DOI: 10.2113/gscanmin.38.1.57
  2. 2018Chukanov, Nikita, Zubkova, Natalia, Britvin, Sergey, Pekov, Igor, Vigasina, Marina, Schäfer, Christof, Ternes, Bernd, Schüller, Willi, Polekhovsky, Yury, Ermolaeva, Vera, Pushcharovsky, Dmitry (2018) Nöggerathite-(Ce), (Ce,Ca)2Zr2(Nb,Ti)(Ti,Nb)2Fe2+O14, a new zirconolite-related mineral from the Eifel volcanic region, Germany. Minerals, 8 (10) 449 doi:10.3390/min8100449 DOI: 10.3390/min8100449
  3. 2020(2020) Nöggerathite-(Ce). Handbook of Mineralogy. Mineralogical Society of America
