Numanoite

Ca4CuB4O6(OH)6(CO3)2
IMA status
  • Approved
IMA symbol
Num
IMA approved
2005
Also known as
  • IMA2005-050
  • Numanoiet

Where it forms, where it's found

Geological setting

Borate-bearing low-Fe calc-silicate skarn.

Type locality
Fuka mine
  1. Fuka
  2. Bitchū
  3. Takahashi City
  4. Okayama Prefecture
  5. Japan

34.7882°, 133.4429°

1recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789104.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
bluish green

Varies from quite intense to very pale, almost colorless, partly depending on thickness of the numanoite zone.

Cleavage
Perfect

(100) (110)

Density
2.96 g/cm³

Optical

Optical type
Biaxial (-) · 2V calc = 60°
Refractive index
1.618 – 1.672
Surface relief
Moderate
Principal indices
nα 1.618 · nβ 1.658 · nγ 1.672
Michel-Lévy diagramhighlighted lineδ = 0.0540
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]540 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation540 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
C2/m
Cell parameters
a = 17.794 Å · b = 8.381 Å · c = 4.4494 Å
Cell angles
β = 102.42 °
Ratio a:b:c
1 : 0.471 : 0.250
Z
2
Type-locality form

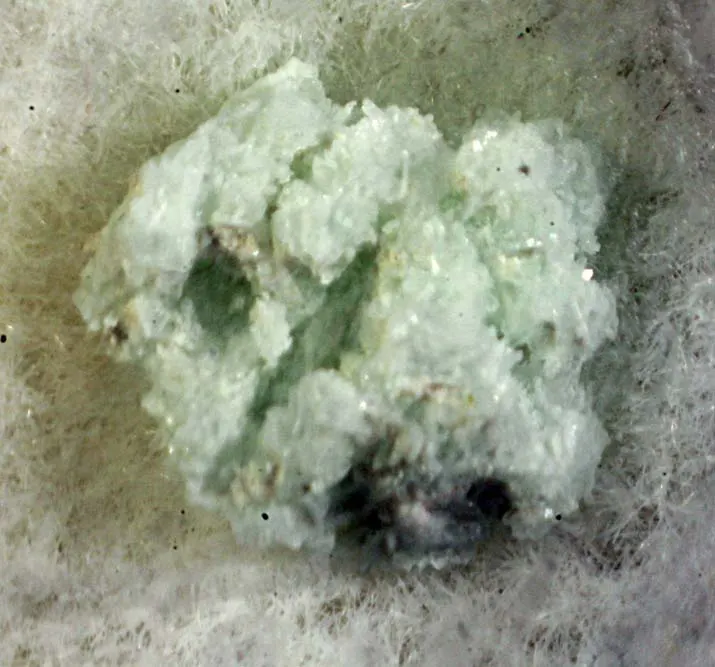

Bluish green central zone in colorless borcarite crystals.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1815.999287.982
49.21%
20CaCalciumCalcium440.078160.312
27.40%
29CuCopperCopper163.54663.546
10.86%
5BBoronBoron410.81043.240
7.39%
6CCarbonCarbon212.01124.022
4.11%
1HHydrogenHydrogen61.0086.048
1.03%
Total585.150100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA2005-050
  • Numanoiet

In other languages

German
IMA 2005-050 · Numanoit
Italian
numanoite
Japanese
沼野石

Classification

Strunz
10th ed.

6.DA.40

  • 6BoratesClass
  • 6.DTetraboratesDivision
  • 6.DANeso-tetraboratesGroup
  • 6.DA.40NumanoiteSpecies

Literature, links & citation

Citations
  1. 2005Ohnishi, M. et al. (2005) Kobutsu-Gakkai Koen-Yoshi (Abstract of the Meeting of the Mineralogical Society of Japan): 138.
  2. 2006Ohnishi, M., Kusachi, I., Kobayashi, S., Yamakawa, J. (2006) Numanoite, Ca4CuB4O6(OH)6(CO3)2, a new mineral, the Cu-analogue of borcarite from the Fuka mine, Okayama Prefecture, Japan. 19th General Meeting of the International Mineralogical Association, 19th General Meeting, Kobe, Japan, July 23-28, 2006; Conference Abstract Volume, abstract #90144.
  3. 2007Ohnishi, M., Kusachi, I., Kobayashi, S., Yamakawa, J., Tanabe, M., Kishi, S., Yasuda, T. (2007) Numanoite, Ca4CuB4O6(OH)6(CO3)2, a new mineral species, the Cu analogue of borcarite from the Fuka mine, Okayama Prefecture, Japan. The Canadian Mineralogist, 45 (2) 307-315 doi:10.2113/gscanmin.45.2.307 DOI: 10.2113/gscanmin.45.2.307
  4. 2007Poirier, G., Piilonen, P. C. (2007) New Mineral Names. American Mineralogist, 92 (10) 1776-1779 doi:10.2138/am.2007.503DOI: 10.2138/am.2007.503
  5. 2014(2014) Numanoite. Handbook of Mineralogy. Mineralogical Society of America
