Ohmilite

Sr3(Ti,Fe3+)(Si2O6)2(O,OH) · 2H2O
IMA status
  • Approved
IMA symbol
Oh
Discovered
1973
IMA approved
1974
Also known as
  • IMA1974-031
  • Ohmiliet
  • Ohmilit

Where it forms, where it's found

Geological setting

In an amphibole-quartz-albitite dike cutting serpentinite.

Type locality
Ōmi
  1. Itoigawa City
  2. Niigata Prefecture
  3. Japan

37.0218°, 137.7885°

4recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789103.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
Pink to pinkish brown
Streak
White
Cleavage
Perfect

Parallel to (100)

Density
3.38 g/cm³

Optical

Optical type
Biaxial
Refractive index
1.649 – 1.715
Surface relief
High
Principal indices
nα 1.649 · nγ 1.715
Pleochroism
Weak

Very weak, colourless to light pink.

Dispersion
r < v strong
Michel-Lévy diagramhighlighted lineδ = 0.0660
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]660 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation660 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
P21/m
Cell parameters
a = 10.97 Å · b = 7.79 Å · c = 7.81 Å
Cell angles
β = 100.9 °
Ratio a:b:c
1 : 0.710 : 0.712
Z
2
Type-locality form

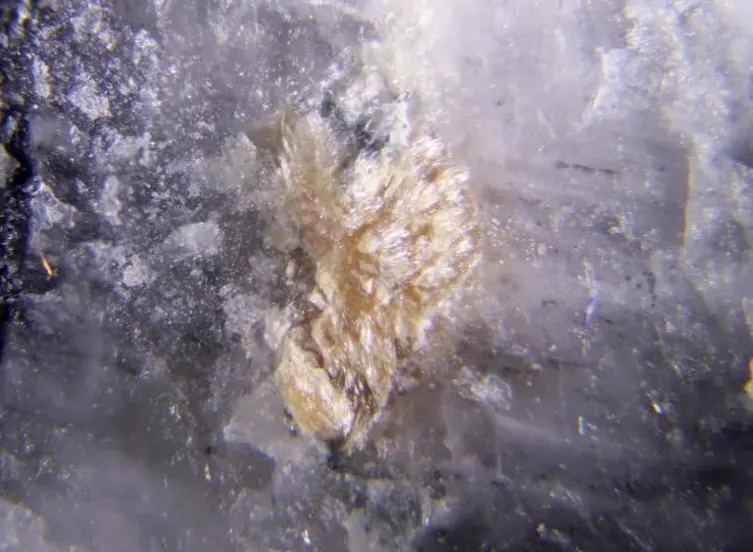

Aggregates of very fine-grained crystals or occasionally spherulitic aggregates of radially arranged crystals in interstitial parts of albite aggregates. To 0.2 mm.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
38SrStrontiumStrontium387.620262.860
35.52%
8OOxygenOxygen1615.999255.984
34.60%
14SiSiliconSilicon428.085112.340
15.18%
26FeIronIron155.84555.845
7.55%
22TiTitaniumTitanium147.86747.867
6.47%
1HHydrogenHydrogen51.0085.040
0.68%
Total739.936100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1974-031
  • Ohmiliet
  • Ohmilit

In other languages

German
IMA 1974-031 · Ohmilith
Italian
Ohmilite
Japanese
青海石

Classification

Strunz
10th ed.

9.DH.10

  • 9SilicatesClass
  • 9.DInosilicatesDivision
  • 9.DHInosilicates with 4-periodic single chains, Si4O12Group
  • 9.DH.10OhmiliteSpecies
Dana
8th ed.

65.03.04.03

  • 65Inosilicates Single-width, Unbranched Chains, (w=1)Class
  • 65.03Single-Width Unbranched Chains, W=1 with chains P=4Type
  • 65.03.04Batisite groupGroup
  • 65.03.04.03OhmiliteSpecies
CIM

14.9.7

  • 14Silicates not Containing AluminumClass
  • 14.9Silicates of TiGroup
  • 14.9.7OhmiliteSpecies

Literature, links & citation

Citations
  1. 1973Komatsu, Masayuki, Chihara, Kazuya, Mizota, Tadato (1973) A new strontium-titanium hydrous silicate mineral from Ohmi, Niigata Prefecture, central Japan. Mineralogical Journal, 7 (3) 298-301 doi:10.2465/minerj1953.7.298 DOI: 10.2465/minerj1953.7.298
  2. 1973Mizota, Tadato, Komatsu, Masayuki, Chihara, Kazuya (1973) On the crystal structure of Sr3TiSi4O12(OH)·2H2O, a new mineral. Mineralogical Journal, 7 (3) 302-305 doi:10.2465/minerj1953.7.302 DOI: 10.2465/minerj1953.7.302
  3. 1983Mizota, Tadato, Komatsu, Masayuki, Chihara, Kazuya (1983) A refinement of the crystal structure of ohmilite, Sr3(Ti,Fe2+)(O,OH)(Si2O6)2·2-3H2O. American Mineralogist, 68 (7-8) 811-817
  4. 2001(2001) Ohmilite. Handbook of Mineralogy. Mineralogical Society of America
