Olmiite

CaMn[SiO3(OH)](OH)
IMA status
  • Approved
IMA symbol
Olm
Discovered
2006
IMA approved
2006
Also known as
  • IMA2006-026
  • Olmiiet

Where it forms, where it's found

Type locality
N'Chwaning II Mine
  1. N'Chwaning Mines
  2. Joe Morolong Local Municipality
  3. John Taolo Gaetsewe District Municipality
  4. Northern Cape
  5. South Africa

-27.1361°, 22.8647°

5recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789105 – 5.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Pale to intense reddish pink.
Streak
White
Tenacity
brittle
Cleavage
None Observed
Fracture
Irregular/Uneven
Density
3.05 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 71° · 2V calc = 66°
Refractive index
1.663 – 1.694
Surface relief
High
Principal indices
nα 1.663 · nβ 1.672 · nγ 1.694
Pleochroism
Non-pleochroic
Dispersion
r > v distinct
UV response
Deep red (SW UV)
Michel-Lévy diagramhighlighted lineδ = 0.0310
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]310 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation310 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Space group
#61
Cell parameters
a = 9.249 Å · b = 9.076 Å · c = 10.342 Å
Ratio a:b:c
1 : 0.981 : 1.118
Unit cell volume
868 ų
Z
8
Morphology

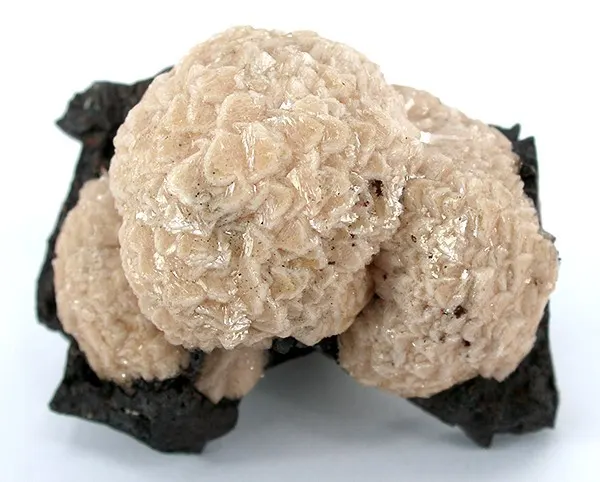

Crystals minute. Aggregates resemble wheat sheaves.

Type-locality form

Wheat sheaf aggregates.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen515.99979.995
39.00%
25MnManganeseManganese154.93854.938
26.79%
20CaCalciumCalcium140.07840.078
19.54%
14SiSiliconSilicon128.08528.085
13.69%
1HHydrogenHydrogen21.0082.016
0.98%
Total205.112100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA2006-026
  • Olmiiet

In other languages

German
IMA 2006-026 · Olmiit
Italian
olmiite

Classification

Strunz
10th ed.

9.AF.90

  • 9SilicatesClass
  • 9.ANesosilicatesDivision
  • 9.AFNesosilicates with additional anions; cations in [4], [5] and/or only [6] coordinationGroup
  • 9.AF.90OlmiiteSpecies

Literature, links & citation

Citations
  1. 2007Bonazzi, P., Bindi, L., Medenbach, O., Pagano, R., Lampronti, G. I., Menchetti, S. (2007) Olmiite, CaMn[SiO3(OH)](OH), the Mn-dominant analogue of poldervaartite, a new mineral species from Kalahari manganese fields (Republic of South Africa). Mineralogical Magazine, 71 (2). 193-201 doi:10.1180/minmag.2007.071.2.193 DOI: 10.1180/minmag.2007.071.2.193
  2. 2008Pagano, Renato, Guastoni, Alessandro, Pezzotta, Federico (2008) Olmiite and poldervaartite from the Kalahari manganese field, Northern Cape Province, Republic of South Africa. The Mineralogical Record, 39 (5) 373-381
  3. 2012Cook, Robert B. (2012) Connoisseur's Choice: Olmiite, N'Chwaning II Mine, Kalahari Manganese Field, Republic of South Africa. Rocks & Minerals, 87 (2) 150-155 doi:10.1080/00357529.2012.657988DOI: 10.1080/00357529.2012.657988
  4. 2013Frost, Ray L., Scholz, Ricardo, López, Andrés, Xi, Yunfei, Granja, Amanda, Žigovečki Gobac, Željka, Lima, Rosa Malena Fernandes (2013) Infrared and Raman spectroscopic characterization of the silicate mineral olmiite CaMn2+[SiO3(OH)](OH) – implications for the molecular structure. Journal of Molecular Structure, 1053. 22-26 doi:10.1016/j.molstruc.2013.08.038DOI: 10.1016/j.molstruc.2013.08.038
  5. 2022(2022) Olmiite. Handbook of Mineralogy. Mineralogical Society of America
