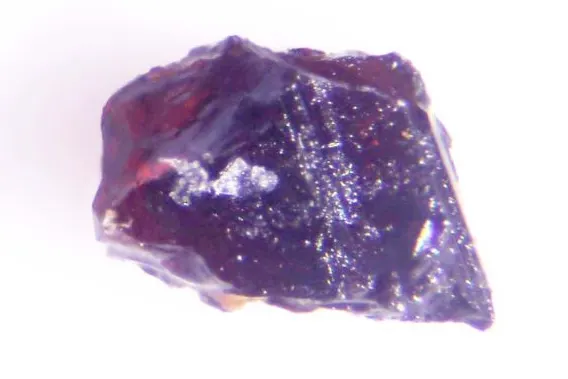

Olmsteadite

KFe2+2NbO2(PO4)2 · 2H2O
IMA status
  • Approved
IMA symbol
Osd
Discovered
1974
IMA approved
1974
Also known as
  • IMA1974-034
  • Olmsteadiet

Where it forms, where it's found

Type locality
Big Chief Mine
  1. Glendale
  2. Keystone Mining District
  3. Pennington County
  4. South Dakota
  5. USA

43.8650°, -103.3819°

2recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789104/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
Deep brown · red-brown to black
Streak
Olive-green
Density
3.31 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 60° · 2V calc = 46 – 74°
Refractive index
1.725 – 1.835
Surface relief
High
Principal indices
nα 1.725 – 1.765 · nβ 1.755 – 1.775 · nγ 1.815 – 1.835
Pleochroism
Visible

X = blue-green or dark blue; Y = yellow or light brown; Z = brown to dark brown.

Dispersion
r > v moderate
Michel-Lévy diagramhighlighted lineδ = 0.0800
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]800 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation800 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Orthorhombic
Cell parameters
a = 7.512(1) Å · b = 10.000(3) Å · c = 6.492(2) Å
Ratio a:b:c
1 : 1.331 : 0.864
Z
1
Comment

Space Group: P b21m

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1215.999191.988
38.27%
26FeIronIron255.845111.690
22.27%
41NbNiobiumNiobium192.90692.906
18.52%
15PPhosphorusPhosphorus230.97461.948
12.35%
19KPotassiumPotassium139.09839.098
7.79%
1HHydrogenHydrogen41.0084.032
0.80%
Total501.662100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1974-034
  • Olmsteadiet

In other languages

French
Olmsteadite
German
IMA 1974-034 · Olmsteadit
Italian
Olmsteadite

Classification

Strunz
10th ed.

8.DJ.05

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.DPhosphates, etc. with additional anions, with H2ODivision
  • 8.DJWith large and medium-sized cations, (OH, etc.):RO4 = 1:1Group
  • 8.DJ.05OlmsteaditeSpecies
Dana
8th ed.

42.07.11.01

  • 42Hydrated Phosphates, Etc.containing Hydroxyl or HalogenClass
  • 42.07(AB)2(XO4)Zq·xH2OType
  • 42.07.11Olmsteadite GroupGroup
  • 42.07.11.01OlmsteaditeSpecies
CIM

22.5.13

  • 22Phosphates, Arsenates or Vanadates with other AnionsClass
  • 22.5Phosphates, arsenates or vanadates with chromate, molybdate, niobate or tantalateGroup
  • 22.5.13OlmsteaditeSpecies

Literature, links & citation

Citations
  1. 1976Moore, Paul B., Araki, Takaharu, Kampf, Anthony R., Steele, Ian M. (1976) Olmsteadite, K2Fe2+2[Fe2+2(Nb,Ta)5+2O4(H2O)4(PO4)4], a new species, its crystal structure and relation to vauxite and montgomeryite. American Mineralogist, 61 (1-2) 5-11
  2. 2005(2005) Olmsteadite. Handbook of Mineralogy. Mineralogical Society of America
