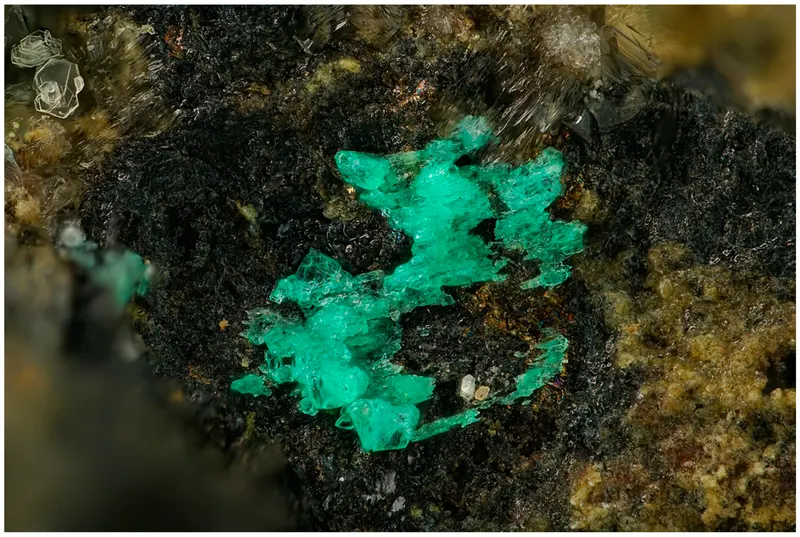

Paddlewheelite

MgCa5Cu2(UO2)4(CO3)12(H2O)33
IMA status
  • Approved
IMA symbol
Pdw
IMA approved
2018
Also known as
  • IMA2017-098
  • Paddlewheeliet

Where it forms, where it's found

Geological setting

Oxidation of uraninite. Crystals of paddlewheelite were collected underground from a bifurcation of the Prokop vein on the 5th level of the Svornost mine, Jáchymov District, Bohemia, Czech Republic.

Type locality
Klement vein
  1. Svornost Mine
  2. Jáchymov
  3. Karlovy Vary District
  4. Karlovy Vary Region
  5. Czech Republic

50.3725°, 12.9117°

2recorded occurrences
Source · OpenStreetMap

Radioactivity

Physical

Hardness
123456789102/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Blue green

Shading close to Pantone 334c

Streak
Pale blue green
Tenacity
brittle
Cleavage
Perfect

(100)

Density
2.497 g/cm³

Optical

Optical type
· 2V measured = 72° · 2V calc = 73.1°
Refractive index
1.52 – 1.54
Surface relief
Moderate
Principal indices
nα 1.520 · nβ 1.527 · nγ 1.540
Pleochroism
Visible

X and Y blue green, and Z pale yellow;

Dispersion
slight, r < v
UV response
none
Michel-Lévy diagramhighlighted lineδ = 0.0200
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]200 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation200 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
Pc
Cell parameters
a = 22.052(4) Å · b = 17.118(3) Å · c = 19.354(3) Å
Cell angles
β = 90.474(2) °
Ratio a:b:c
1 : 0.776 : 0.878
Z
4
Type-locality form

Tabular crystals flattened on (100)

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen7715.9991231.923
44.85%
92UUraniumUranium4238.029952.116
34.67%
20CaCalciumCalcium540.078200.390
7.30%
6CCarbonCarbon1212.011144.132
5.25%
29CuCopperCopper263.546127.092
4.63%
1HHydrogenHydrogen661.00866.528
2.42%
12MgMagnesiumMagnesium124.30524.305
0.88%
Total2746.486100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA2017-098
  • Paddlewheeliet

In other languages

German
Paddlewheelit

Classification

Strunz
10th ed.

5.ED.70

  • 5CarbonatesClass
  • 5.EUranyl CarbonatesDivision
  • 5.EDUO2:CO3 = 1:3Group
  • 5.ED.70PaddlewheeliteSpecies

Literature, links & citation

Citations
  1. 2018Hålenius, U., Hatert, F., Pasero, M., Mills, S. J. (2018) IMA Commission on New Minerals, Nomenclature and Classification (CNMNC) Newsletter 41. European Journal of Mineralogy, 30. 183-186 doi:10.1127/ejm/2018/0030-2736DOI: 10.1127/ejm/2018/0030-2736
  2. 2018Olds, Travis, Plášil, Jakub, Kampf, Anthony, Dal Bo, Fabrice, Burns, Peter (2018) Paddlewheelite, a New Uranyl Carbonate from the Jáchymov District, Bohemia, Czech Republic. Minerals, 8 (11) 511 doi:10.3390/min8110511 DOI: 10.3390/min8110511
  3. 2019labs.wsu.edu (n.d.) https://labs.wsu.edu/mccloy/travis-olds/
  4. 2020(2020) Paddlewheelite. Handbook of Mineralogy. Mineralogical Society of America
