Parwanite

NaMg4Al8(PO4)8(CO3)(OH)7 · 30H2O
IMA status
  • Approved
IMA symbol
Prw
IMA approved
2007
Also known as
  • IMA1986-036a
  • Parwaniet

Where it forms, where it's found

Geological setting

Lava-tube cave in basalt.

Type locality
Parwan lava caves
  1. Parwan
  2. Moorabool Shire
  3. Victoria
  4. Australia

-37.7131°, 144.4778°

1recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789101/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
White · cream
Streak
White
Cleavage
None Observed
Density
2.17 g/cm³

Optical

Optical type
Biaxial (+) · 2V calc = 82.2°
Refractive index
1.493 – 1.508
Surface relief
Moderate
Principal indices
nα 1.493 · nβ 1.5 · nγ 1.508
Michel-Lévy diagramhighlighted lineδ = 0.0150
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]150 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation150 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
#8
Cell parameters
a = 26.148 Å · b = 11.781 Å · c = 20.494 Å
Cell angles
β = 111.27 °
Ratio a:b:c
1 : 0.451 : 0.784
Type-locality form

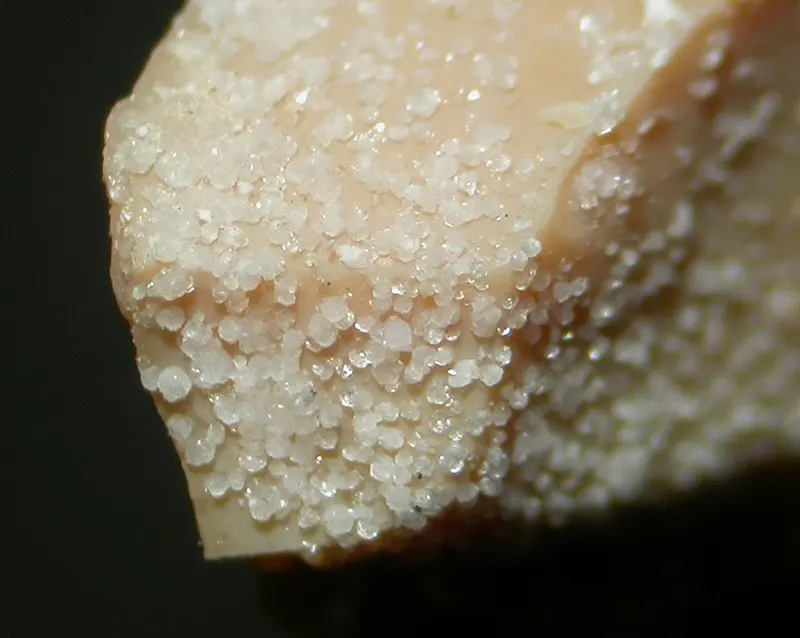

Minute roseate clusters of very thin, platy pseudoexagonal crystals encrusting surfaces within taranakite-clay matrix. Clusters are 50-100 µm in diameter, the crystals about 2-5 µm thick.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen7215.9991151.928
63.45%
15PPhosphorusPhosphorus830.974247.792
13.65%
13AlAluminiumAluminium826.982215.856
11.89%
12MgMagnesiumMagnesium424.30597.220
5.36%
1HHydrogenHydrogen671.00867.536
3.72%
11NaSodiumSodium122.99022.990
1.27%
6CCarbonCarbon112.01112.011
0.66%
Total1815.333100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1986-036a
  • Parwaniet

In other languages

German
Parwanit
Italian
parwanite

Classification

Strunz
10th ed.

8.DO.40

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.DPhosphates, etc. with additional anions, with H2ODivision
  • 8.DOWith CO3, SO4, SiO4Group
  • 8.DO.40ParwaniteSpecies

Literature, links & citation

Citations
  1. IMA website - Proposals approved in January 2007
  2. 1993Birch, W. D., Henry, D. A. - Eds. (1993) Phosphate Minerals of Victoria. Special Publication 3. Mineralogical Society of Victoria
  3. 2007Birch, Willian D., Mills, Stuart J., Schwendtner, Karolina, Pring, Allan, Webb, John A., Segnit, Ralph, Watts, John A. (2007) Parwanite: a new hydrated Na-Mg-Al-phosphate from a lava cave at Parwan, Victoria, Australia. Australian Journal of Mineralogy: 13: 23-30.
