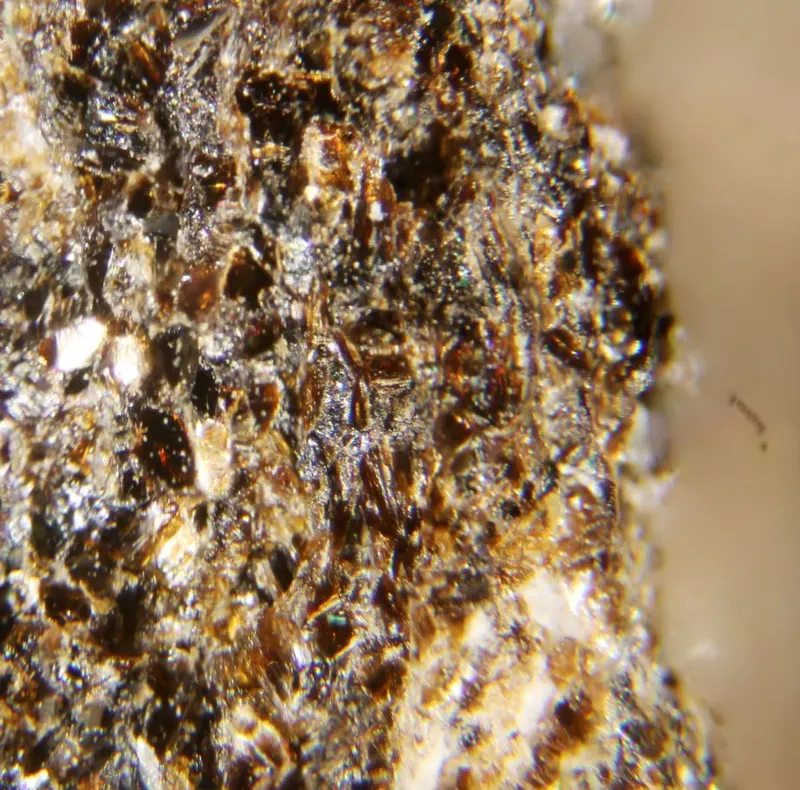

Parwelite

Mn2+10Sb5+2As5+2Si2O24
IMA status
  • Approved
IMA symbol
Pwe
Discovered
1967
Also known as
  • IMA1966-023
  • Parweliet

Where it forms, where it's found

Geological setting

High temperature skarn.

Type locality
Långban Mine
  1. Långban Ore District
  2. Filipstad
  3. Värmland County
  4. Sweden

59.8554°, 14.2648°

1recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789105.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Yellow-brown · tan
Tenacity
brittle
Cleavage
Imperfect/Fair

Fair to poor on (010)

Fracture
Sub-Conchoidal
Density
4.62 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 27°
Refractive index
1.85 – 1.88
Surface relief
Very high
Principal indices
nα 1.85 · nβ 1.85 · nγ 1.88
Dispersion
r > v strong
Michel-Lévy diagramhighlighted lineδ = 0.0300
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]300 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation300 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
#3
Cell parameters
a = 10.048(2) Å · b = 19.418(5) Å · c = 9.735(5) Å
Cell angles
β = 95.83(1) °
Ratio a:b:c
1 : 1.933 : 0.969
Z
8
Type-locality form

Crystals rounded, stubby prismatic, to 1 cm.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
25MnManganeseManganese1054.938549.380
39.73%
8OOxygenOxygen2415.999383.976
27.77%
51SbAntimonyAntimony2121.760243.520
17.61%
33AsArsenicArsenic274.922149.844
10.83%
14SiSiliconSilicon228.08556.170
4.06%
Total1382.890100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Fe
  • Pb
  • Ca

Synonyms

  • IMA1966-023
  • Parweliet

In other languages

German
IMA 1966-023 · Parwelit
Italian
Parwelite

Classification

Strunz
10th ed.

8.BD.15

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.BPhosphates, etc., with additional anions, without H2ODivision
  • 8.BDWith only medium-sized cations, (OH, etc.):RO4= 2:1Group
  • 8.BD.15ParweliteSpecies
Dana
8th ed.

44.03.03.01

  • 44AntimonatesClass
  • 44.03MiscellaneousType
  • 44.03.03— unnamed intermediate level —Group
  • 44.03.03.01ParweliteSpecies
CIM

17.7.18

  • 17Silicates Containing other AnionsClass
  • 17.7Silicates with vanadate, arsenate or antimonateGroup
  • 17.7.18ParweliteSpecies

Literature, links & citation

Citations
  1. 1967Moore, P. B. (1967) Eleven new minerals from Langban, Sweden. The Canadian Mineralogist, 9 (2) 301
  2. 1969Moore, P.B. (1969) Parwelite, (Mn,Mg)5Sb(Si,As)2O10-11, a new mineral from Långban. Arkiv för Mineralogi och Geologi, 4 (6, nr 25). 467-472
  3. 1970Fleischer, Michael (1970) New Mineral Names. American Mineralogist, 55 (1-2) 317-323
  4. 1977Moore, Paul Brian., Araki, Takaharu. (1977) Parwelite, MnII10SbV2AsV2Si2O24, a complex anion-deficient fluorite derivative structure. Inorganic Chemistry, 16 (8) 1839-1847 doi:10.1021/ic50174a003DOI: 10.1021/ic50174a003
  5. 1979Marsh, Richard E., Schomaker, Verner (1979) Some incorrect space groups in Inorganic Chemistry, Volume 16. Inorganic Chemistry, 18 (8) 2331-2336 doi:10.1021/ic50198a064DOI: 10.1021/ic50198a064
