Pattersonite

PbFe3(PO4)2(OH)5 · H2O
IMA status
  • Approved
IMA symbol
Patt
Discovered
1986
IMA approved
2005
Also known as
  • IMA2005-049
  • Pattersoniet

Where it forms, where it's found

Geological setting

Supergene mineral in a lead-silver deposit

Type locality
Vereinigung Mine
  1. Eisenbach
  2. Selters
  3. Limburg-Weilburg
  4. Giessen Region
  5. Hesse
  6. Germany

50.3388°, 8.2687°

2recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789104/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
Dark yellow
Streak
very pale yellow
Tenacity
brittle
Cleavage
Poor/Indistinct

one poor cleavage of unknown orientation

Fracture
Conchoidal
Density
4.04 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 50°
Refractive index
1.86 – 1.93
Surface relief
Very high
Principal indices
nα 1.86 · nβ 1.917 · nγ 1.93
Pleochroism
Weak

X = nearly colorless to very pale yellow, Y = pale yellow to yellow, Z = yellow to dark yellow (depending on grain size), with Z > Y > X

Dispersion
Very strong (r > v)
UV response
none
Michel-Lévy diagramhighlighted lineδ = 0.0700
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]700 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation700 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Triclinic
Space group
#2
Cell parameters
a = 5.309(1) Å · b = 7.211(1) Å · c = 7.349 Å
Cell angles
α = 87.74(3) ° · β = 86.38(3) ° · γ = 71.40(3) °
Ratio a:b:c
1 : 1.358 : 1.384
Unit cell volume
266.06 ų
Z
1
Morphology

Tabular (pinacoidal) to platy. Forms include (110) (dominant platy form), (100), (001) and minor (011), {0–11}, {–101}. In general, all forms are poorly developed. The crystals are slightly elongated along [001]. Single crystals are rare; it tends to form subparallel to rosette-like intergrowths.

Twinning

None observed

Type-locality form

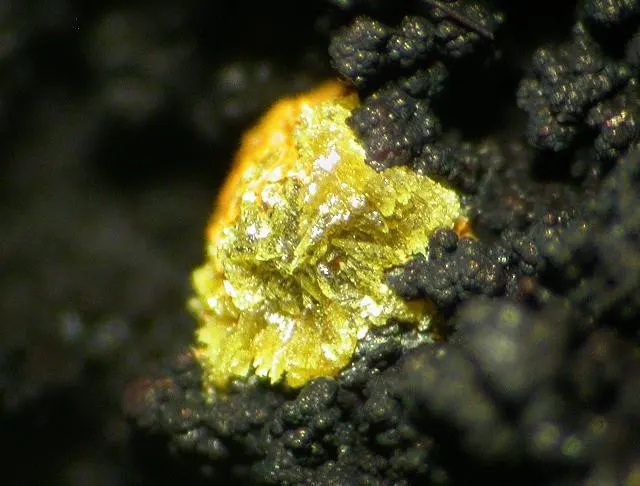

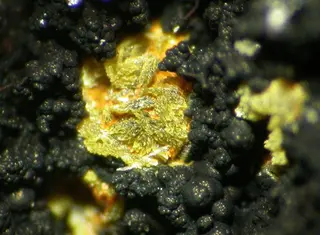

Indistinct tabular (pinacoidal) crystals up to 0.5 mm in size, which tend to form subparallel to rosette-like intergrowths

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1415.999223.986
33.54%
82PbLeadLead1207.200207.200
31.03%
26FeIronIron355.845167.535
25.09%
15PPhosphorusPhosphorus230.97461.948
9.28%
1HHydrogenHydrogen71.0087.056
1.06%
Total667.725100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA2005-049
  • Pattersoniet

In other languages

German
IMA 2005-049 · Pattersonit
Italian
pattersonite

Classification

Strunz
10th ed.

8.BL.25

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.BPhosphates, etc., with additional anions, without H2ODivision
  • 8.BLWith medium-sized and large cations, (OH, etc.):RO4 = 3:1Group
  • 8.BL.25PattersoniteSpecies

Literature, links & citation

Citations
  1. 2005Kolitsch, U., Bernhardt, H.-J., Krause, W., Blaß, G. (2005) Triclinic PbFe3(PO4)2(OH)4(H2O,OH)2: a new phosphate mineral from the Taunus, Germany, and its crystal structure. Mitteilungen der Österreichischen Mineralogischen Gesellschaft: 151: 65. (Poster abstract)
  2. 2008Jahn, S. (2008): Pattersonit - ein neues Mineral von der Grube Vereinigung bei Eisenbach. Mineralien-Welt: 19(4): 26-29 (in German).
  3. 2008Kolitsch, Uwe, Bernhardt, Heinz-Jürgen Krause, Blass, Günter (2008) Pattersonite, PbFe3(PO4)2(OH)4[(H2O)0.5(OH)0.5]2, a new supergene phosphate mineral: description and crystal structure. European Journal of Mineralogy, 20 (2) 281-288 doi:10.1127/0935-1221/2008/0020-1793 DOI: 10.1127/0935-1221/2008/0020-1793
  4. 2011(2011) Pattersonite. Handbook of Mineralogy. Mineralogical Society of America
