Patynite

NaKCa4[Si9O23]
IMA status
  • Approved
IMA symbol
Pty
IMA approved
2019
Also known as
  • IMA2019-018
  • Patyniet

Where it forms, where it's found

Geological setting

Diopside-wollastonite skarns

Type locality
Patyn Mt. Massif
  1. Synzas River
  2. Tashtagolsky District
  3. Kemerovo Oblast
  4. Russia

52.8958°, 88.4747°

1recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789106/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
colourless (individuals) to white or white-brownish (aggregates)
Streak
white
Tenacity
brittle
Cleavage
Perfect

Two directions of perfect cleavage parallel to elongation and one imperfect cleavage 96° to the elongation.

Fracture
Step-Like
Density
2.70 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 40° · 2V calc = 44.1°
Refractive index
1.568 – 1.582
Surface relief
Moderate
Principal indices
nα 1.568 · nβ 1.580 · nγ 1.582
Pleochroism
Non-pleochroic
Dispersion
Weak, r < v
Notes

Optical Y axis is nearly parallel to elongation

Michel-Lévy diagramhighlighted lineδ = 0.0140
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]140 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation140 nm
Order1st order
XPL colour

Crystallography

Crystal system
Triclinic
Space group
#2
Cell parameters
a = 7.27430(10) Å · b = 10.5516(2) Å · c = 13.9851(2) Å
Cell angles
α = 104.203(2) ° · β = 104.302(2) ° · γ = 92.0280(10) °
Ratio a:b:c
1 : 1.451 : 1.923
Type-locality form

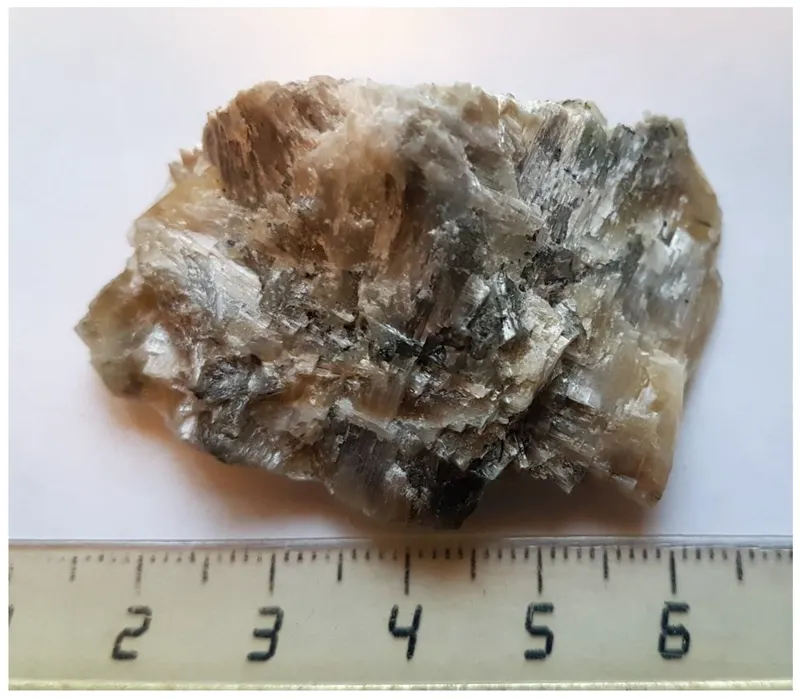

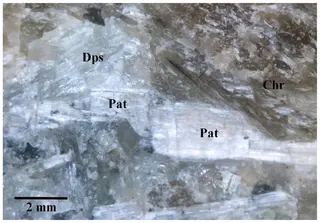

lamellate, probably up to 0.5 cm in diameter, intergrown with chaorite, diopside, graphite, and tokkoite

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen2315.999367.977
43.64%
14SiSiliconSilicon928.085252.765
29.98%
20CaCalciumCalcium440.078160.312
19.01%
19KPotassiumPotassium139.09839.098
4.64%
11NaSodiumSodium122.99022.990
2.73%
Total843.142100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA2019-018
  • Patyniet

In other languages

German
IMA 2019-018 · Patynit

Classification

Strunz
10th ed.

9.DG.65

  • 9SilicatesClass
  • 9.DInosilicatesDivision
  • 9.DGInosilicates with 3-periodic single and multiple chainsGroup
  • 9.DG.65PatyniteSpecies

Literature, links & citation

Citations
  1. 2019Miyawaki, Ritsuro, Hatert, Frédéric, Pasero, Marco, Mills, Stuart J. (2019) CNMNC Newsletter No 50, New minerals and nomenclature modifications approved in 2019. Mineralogical Magazine, 83 (4) 615-620 doi:10.1180/mgm.2019.46DOI: 10.1180/mgm.2019.46
  2. 2019Kasatkin, , Cámara, , Chukanov, , Škoda, , Nestola, , Agakhanov, , Belakovskiy, , Lednyov, (2019) Patynite, NaKCa4[Si9O23], a New Mineral from the Patynskiy Massif, Southern Siberia, Russia. Minerals, 9 (10) 611 doi:10.3390/min9100611 DOI: 10.3390/min9100611
  3. 2022(2022) Patynite. Handbook of Mineralogy. Mineralogical Society of America
