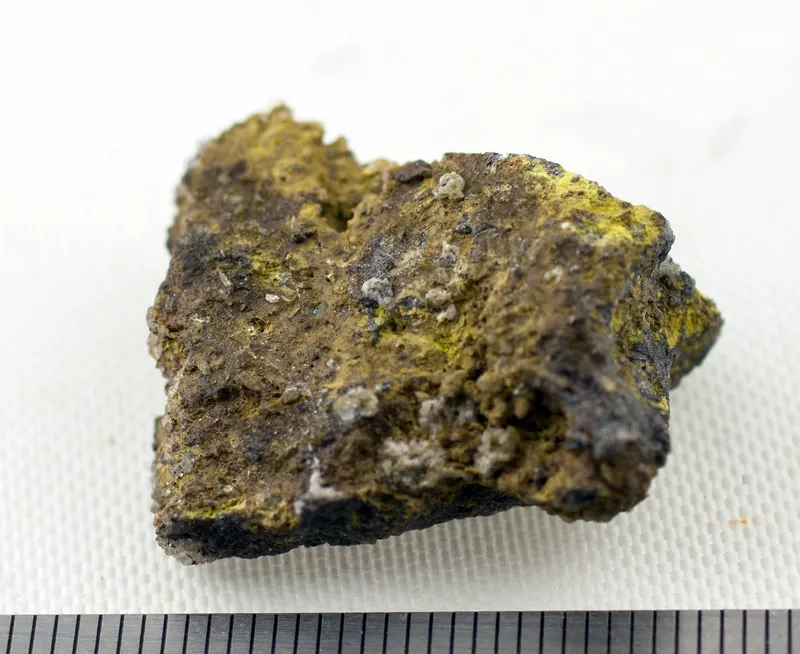

Paulkellerite

Bi3+2Fe3+O2(PO4)(OH)2
IMA status
  • Approved
IMA symbol
Pkl
Discovered
1987
IMA approved
1987
Also known as
  • IMA1987-031
  • Paulkelleriet

Where it forms, where it's found

Geological setting

Secondary mineral formed from alteration of ore containing bismuth and a skutterudite-subgroup mineral.

Type locality
Neuhilfe Flacher vein
  1. Junge Kalbe Mine
  2. Neustädtel
  3. Schneeberg
  4. Erzgebirgskreis
  5. Saxony
  6. Germany

50.5811°, 12.6239°

2recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789104/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Yellow-green
Streak
Light yellow
Cleavage
None Observed
Density
6.17 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 37° · 2V calc = 34°
Refractive index
1.762 – 1.825
Surface relief
High
Principal indices
nα 1.762 · nβ 1.767 · nγ 1.825
Pleochroism
Non-pleochroic
Dispersion
absent
UV response
none
Michel-Lévy diagramhighlighted lineδ = 0.0630
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]630 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation630 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
C2/c
Cell parameters
a = 11.380(3) Å · b = 6.660(3) Å · c = 9.653(3) Å
Cell angles
β = 115.34(2) °
Ratio a:b:c
1 : 0.585 : 0.848
Z
4
Morphology

Simple morphology displaying two dominant prisms, (110) and (011), and a poorly developed pinacoid (101).

Type-locality form

Wedge-shaped, euhedral crystals, with slightly curved faces, which vary from 0.2 to 0.8 mm in size.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
83BiBismuthBismuth2208.980417.960
65.84%
8OOxygenOxygen815.999127.992
20.16%
26FeIronIron155.84555.845
8.80%
15PPhosphorusPhosphorus130.97430.974
4.88%
1HHydrogenHydrogen21.0082.016
0.32%
Total634.787100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • CO2

Synonyms

  • IMA1987-031
  • Paulkelleriet

In other languages

German
IMA1987-031 · Paulkellerit
Italian
Paulkellerite
Portuguese
IMA1987-031 · Paulkellerita

Classification

Strunz
10th ed.

8.BM.10

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.BPhosphates, etc., with additional anions, without H2ODivision
  • 8.BMWith medium-sized and large cations, (OH, etc.):RO4 = 4:1Group
  • 8.BM.10PaulkelleriteSpecies
Dana
8th ed.

41.03.08.01

  • 41Anhydrous Phosphates, Etc.containing Hydroxyl or HalogenClass
  • 41.03(AB)3(XO4)ZqType
  • 41.03.08— unnamed intermediate level —Group
  • 41.03.08.01PaulkelleriteSpecies
CIM

19.10.12

  • 19PhosphatesClass
  • 19.10Phosphates of Pb, Th, V and BiGroup
  • 19.10.12PaulkelleriteSpecies

Literature, links & citation

Citations
  1. 1988Dunn, Pete J., Grice, Joel D., Wicks, Frederick J., Gault, Robert A. (1988) Paulkellerite, a new bismuth iron phosphate mineral from Schneeberg, Germany. American Mineralogist, 73 (7-8) 870-872
  2. 1988Grice, Joel D., Groat, Lee A. (1988) Crystal structure of paulkellerite. American Mineralogist, 73 (7-8) 873-875
  3. 2005(2005) Paulkellerite. Handbook of Mineralogy. Mineralogical Society of America
