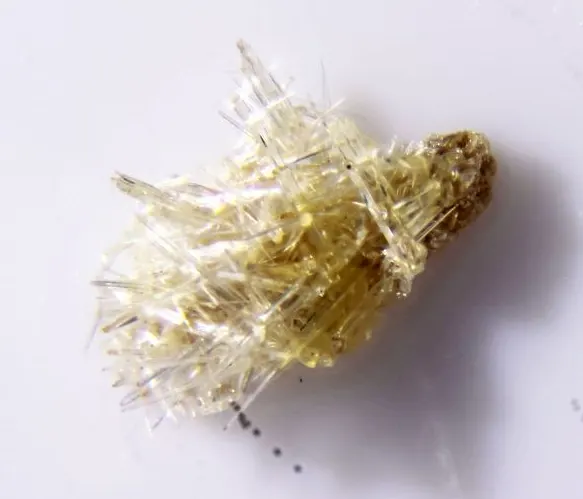

Paulmooreite

Pb2As3+2O5
IMA status
  • Approved
IMA symbol
Pmo
Discovered
1979
Also known as
  • IMA1978-004
  • Paulmooreiet

Where it forms, where it's found

Geological setting

Metamorphosed iron-manganese stratabound deposit containing unusual enrichment of many trace elements.

Type locality
Långban Mine
  1. Långban Ore District
  2. Filipstad
  3. Värmland County
  4. Sweden

59.8554°, 14.2648°

2recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789103/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Colourless to pale orange
Streak
White
Tenacity
very brittle
Cleavage
Distinct/Good

(100)

Density
6.95 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 65°
Refractive index
1.9 – 2
Surface relief
Very high
Principal indices
nβ 1.9 – 2.0 · n 1.9 – 2.0
Birefringence
0.1
Pleochroism
Non-pleochroic
Dispersion
r > v very strong
Extinction
Z^a = 10°, Y=b
UV response
Not fluorescent in UV,
Michel-Lévy diagramhighlighted lineδ = 0.1000
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]1000 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation1000 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
P21/a
Cell parameters
a = 13.548 Å · b = 5.650 Å · c = 8.551 Å
Cell angles
β = 108.78 °
Ratio a:b:c
1 : 0.417 : 0.631
Z
4
Morphology

Tabular on (100) or (001); Observed faces include (100), (001), (011) with small or uncommon (201), (110), (111).

Type-locality form

Tabular crystals and grains to 0.5-1.0 mm

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
82PbLeadLead2207.200414.400
64.32%
33AsArsenicArsenic274.922149.844
23.26%
8OOxygenOxygen515.99979.995
12.42%
Total644.239100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1978-004
  • Paulmooreiet

In other languages

German
Paulmooreit
Italian
Paulmooreite

Classification

Strunz
10th ed.

4.JA.50

  • 4OxidesClass
  • 4.JArsenites, antimonites, bismuthites, sulfites, selenites, tellurites; iodatesDivision
  • 4.JAArsenites, antimonites, bismuthites; without additional anions, without H2OGroup
  • 4.JA.50PaulmooreiteSpecies
Dana
8th ed.

45.01.08.01

  • 45Acid and Normal Antimonites and ArsenitesClass
  • 45.01MiscellaneousType
  • 45.01.08— unnamed intermediate level —Group
  • 45.01.08.01PaulmooreiteSpecies
CIM

23.6

  • 23ArsenitesClass
  • 23.6— unnamed intermediate level —Group
  • 23.6PaulmooreiteSpecies

Literature, links & citation

Citations
  1. 1979Dunn, Pete J., Peacor, Donald R., Sturman, B. Darko (1979) Paulmooreite, a new lead arsenite mineral from Långban, Sweden. American Mineralogist, 64 (3-4) 352-354
  2. 1980Araki, Takaharu, Moore, Paul B., Brunton, George D. (1980) The crystal structure of paulmooreite, Pb2[As2O5]: dimeric arsenite groups. American Mineralogist, 65 (3-4) 340-345
  3. 1988Mitchell, Richard S. (1988) Who's Who: In Mineral Names, Paul Brian Moore (1940-), Jun Ito (1926–1978) Rocks & Minerals, 63 (3) 228-231 doi:10.1080/00357529.1988.11761840DOI: 10.1080/00357529.1988.11761840
  4. 2005(2005) Paulmooreite. Handbook of Mineralogy. Mineralogical Society of America
  5. 2012Bahfenne, S., Rintoul, L., Langhof, J., Frost, R. L. (2012) Single-crystal Raman spectroscopy of natural paulmooreite Pb2As2O5 in comparison with the synthesized analog. American Mineralogist, 97 (1) 143-149 doi:10.2138/am.2011.3808DOI: 10.2138/am.2011.3808
