Peisleyite

Na3Al16(PO4)10(SO4)2(OH)17 · 20H2O
IMA status
  • Approved
IMA symbol
Pei
Discovered
1981
IMA approved
1981
Also known as
  • IMA1981-053
  • Peisleyiet

Where it forms, where it's found

Geological setting

Phosphatic limestone beds.

Type locality
Tom's Quarry
  1. Koonunga
  2. Light Regional Council
  3. South Australia
  4. Australia

-34.3600°, 138.9870°

1recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789103/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Colour
White
Streak
White
Density
2.20 g/cm³

Optical

Optical type
Biaxial
Refractive index
1.51
Surface relief
Moderate
Principal indices
nβ 1.51
Dispersion
none
Notes

average RI ~1.510

Crystallography

Crystal system
Triclinic
Space group
#1
Cell parameters
a = 9.280(19) Å · b = 11.976(19) Å · c = 13.250(18) Å
Cell angles
α = 91.3(1) ° · β = 75.6(1) ° · γ = 67.67(1) °
Ratio a:b:c
1 : 1.291 : 1.428
Z
4
Morphology

very small flakes about 2 μm in diameter

Type-locality form

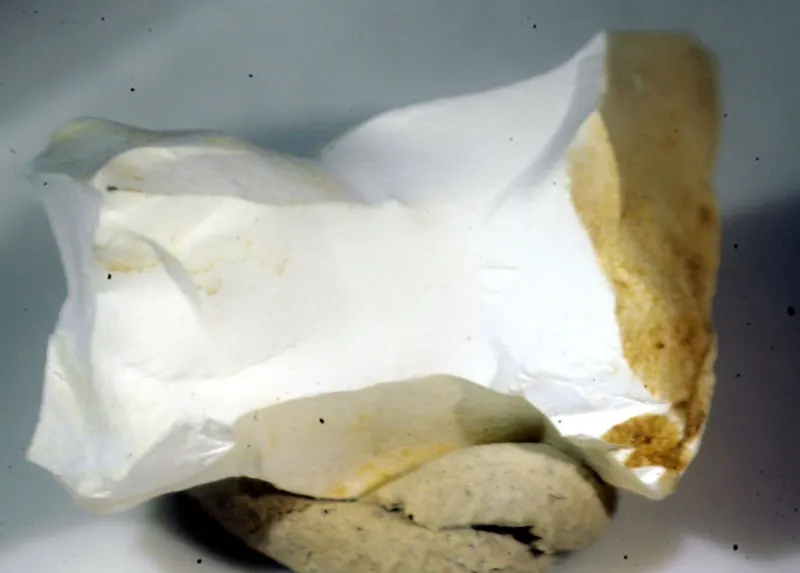

White earthy material.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen8515.9991359.915
59.33%
13AlAluminiumAluminium1626.982431.712
18.84%
15PPhosphorusPhosphorus1030.974309.740
13.51%
11NaSodiumSodium322.99068.970
3.01%
16SSulfurSulfur232.06064.120
2.80%
1HHydrogenHydrogen571.00857.456
2.51%
Total2291.913100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1981-053
  • Peisleyiet

In other languages

German
IMA 1981-053 · Peisleyit
Italian
Peisleyite

Classification

Strunz
10th ed.

8.DO.15

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.DPhosphates, etc. with additional anions, with H2ODivision
  • 8.DOWith CO3, SO4, SiO4Group
  • 8.DO.15PeisleyiteSpecies
Dana
8th ed.

43.05.15.01

  • 43Compound Phosphates, Etc.Class
  • 43.05Hydrated Compound Phosphates, etc·, Containing Hydroxyl or HalogenType
  • 43.05.15— unnamed intermediate level —Group
  • 43.05.15.01PeisleyiteSpecies
CIM

22.3.5

  • 22Phosphates, Arsenates or Vanadates with other AnionsClass
  • 22.3Phosphates, arsenates or vanadates with sulphatesGroup
  • 22.3.5PeisleyiteSpecies

Literature, links & citation

Citations
  1. 1982Pilkington, E. S., Segnit, E. R., Watts, J. A. (1982) Peisleyite, a new sodium aluminium sulphate phosphate. Mineralogical Magazine, 46 (341) 449-452 doi:10.1180/minmag.1982.046.341.07 DOI: 10.1180/minmag.1982.046.341.07
  2. 1983Dunn, P. J.; Cabri, L. J.; Clark, A. M.; Fleischer, M. (1983) New mineral names. American Mineralogist, 68 (7-8). 849-852
  3. 2004Frost, R.L., Mills, S.J., Erickson, K.L. (2004) Thermal decomposition of peisleyite: a thermogravimetry and hot stage Raman spectroscopic study. Thermochimica Acta: 419(1-2): 109-114.
  4. 2011Mills, S.J., Ma, C., Birch, W.D. (2011) A contribution to understanding the complex nature of peisleyite. Mineralogical Magazine: 75: 2733-2737.
  5. 2017(2017) Peisleyite. Handbook of Mineralogy. Mineralogical Society of America
