Peterandresenite

Mn4Nb6O19 · 14H2O
IMA status
  • Approved
IMA symbol
Pan
Discovered
2010
IMA approved
2012
Also known as
  • IMA2012-084
  • Peterandreseniet
  • Unnamed (Mn Hexaniobate Hydrate)

Where it forms, where it's found

Geological setting

The mineral was found on fracture surfaces and in tiny vugs in the centre of a miaskitic pegmatite dike.

Type locality
A/S Granit Quarry
  1. Tuften
  2. Tvedalen
  3. Larvik Commune
  4. Vestfold
  5. Norway

59.0389°, 9.8561°

2recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789102 – 2.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Orange
Streak
Pale orange
Tenacity
brittle
Cleavage
None Observed
Fracture
Irregular/Uneven
Density
3.10 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 43° · 2V calc = 40°
Refractive index
1.76 – 1.8
Surface relief
High
Principal indices
nα 1.760 · nβ 1.795 · nγ 1.800
Pleochroism
Visible

X (colourless) < Z (pale orange)<<Y (medium orange)

Dispersion
Strong (r>v)
Michel-Lévy diagramhighlighted lineδ = 0.0400
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]400 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation400 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
C2/m
Cell parameters
a = 15.329(1) Å · b = 9.4121(5) Å · c = 11.2832(9) Å
Cell angles
β = 118.650(4) °
Ratio a:b:c
1 : 0.614 : 0.736
Unit cell volume
1428.6 ų
Z
2
Type-locality form

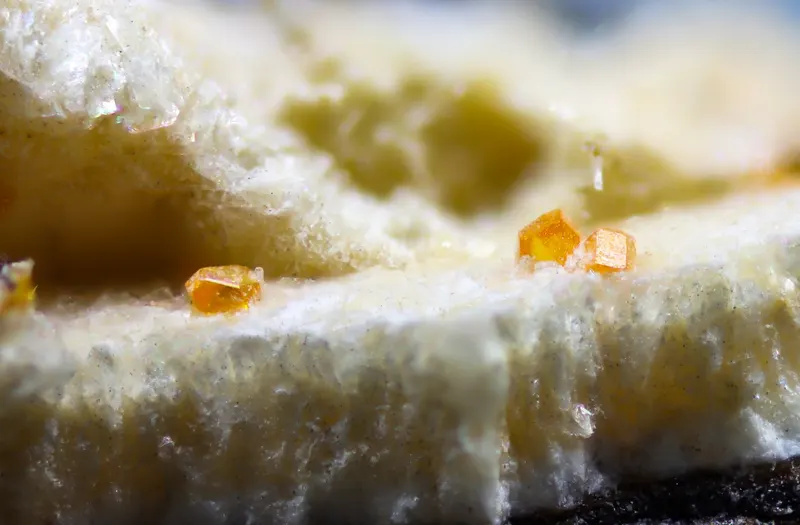

It occurs as equidimensional, transparent to translucent orange crystals up to 1 mm with a pale orange streak and a vitreous to resinous lustre.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
41NbNiobiumNiobium692.906557.436
41.81%
8OOxygenOxygen3315.999527.967
39.59%
25MnManganeseManganese454.938219.752
16.48%
1HHydrogenHydrogen281.00828.224
2.12%
Total1333.379100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA2012-084
  • Peterandreseniet
  • Unnamed (Mn Hexaniobate Hydrate)

In other languages

German
IMA 2012-084 · Peterandresenit
Italian
peterandresenite

Classification

Strunz
10th ed.

7.GB.60

  • 7SulfatesClass
  • 7.GMolybdates, Wolframates and NiobatesDivision
  • 7.GBWith additional anions and/or H2OGroup
  • 7.GB.60PeterandreseniteSpecies

Literature, links & citation

Citations
  1. 2012Friis, H. (2012): From calcite to the first natural hexaniobate or 350 years of mineral science. Acta Crystallogrographica Section A. Foundations of Crystallography. A68, 48 (Abstract).
  2. 2013Williams, P. A., Hatert, F., Pasero, M., Mills, S. J. (2013) New minerals and nomenclature modifications approved in 2013. CNMNC Newsletter No 16. Mineralogical Magazine, 77 (6) 2695-2709 doi:10.1180/minmag.2013.077.6.01DOI: 10.1180/minmag.2013.077.6.01
  3. 2014Friis, Henrik, Larsen, Alf Olav, Kampf, Anthony R., Evans, R. James, Selbekk, Rune S., Sánchez, A. Aranda, Kihle, Jan (2014) Peterandresenite, Mn4Nb6O19·14H2O, a new mineral containing the Lindqvist ion from a syenite pegmatite of the Larvik Plutonic Complex, southern Norway. European Journal of Mineralogy, 26 (4) 567-576 doi:10.1127/0935-1221/2014/0026-2385DOI: 10.1127/0935-1221/2014/0026-2385
  4. 2016(2016) Peterandresenite. Handbook of Mineralogy. Mineralogical Society of America
