Pinnoite

MgB2O(OH)6
IMA status
  • Approved
  • Grandfathered
IMA symbol
Pno
Discovered
1884
Also known as
  • Pinnoiet

Where it forms, where it's found

Geological setting

Upper Kainite layers of a salt deposit.

Type locality
Staßfurt
  1. Salzlandkreis
  2. Saxony-Anhalt
  3. Germany

51.8531°, 11.5883°

15recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789103.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
Yellow to yellow-green · yellow in transmitted light
Fracture
Irregular/Uneven
Density
2.27 g/cm³

Optical

Optical type
Uniaxial (+)
Refractive index
1.565 – 1.575
Surface relief
Moderate
Principal indices
nω 1.565 · nε 1.575
Michel-Lévy diagramhighlighted lineδ = 0.0100
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]100 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation100 nm
Order1st order
XPL colour

Crystallography

Crystal system
Tetragonal
Space group
#139
Cell parameters
a = 7.617 Å · c = 8.19 Å

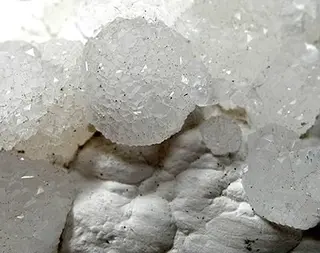

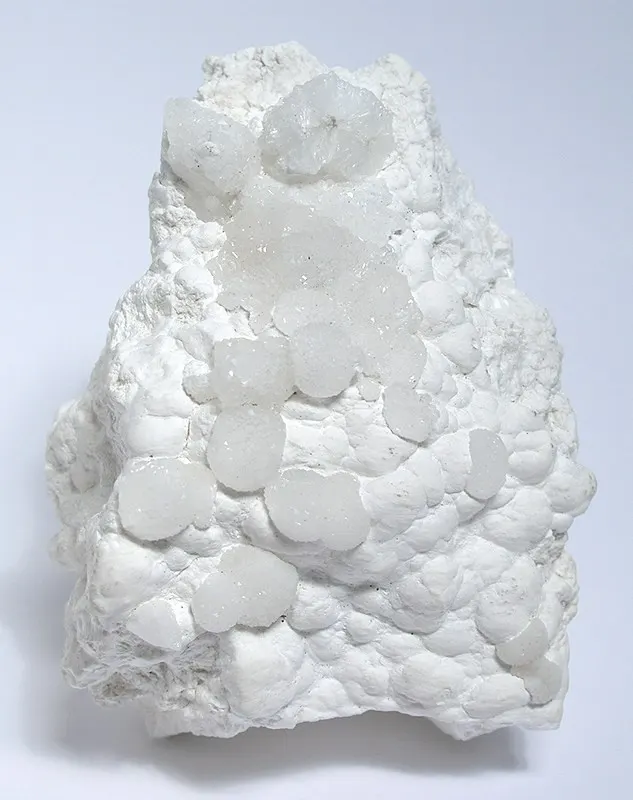

Morphology

Crystals short prismatic [001], rare. Commonly crystalline, fine-granular to faintly fibrous. Nodules with radiated fibrous structure and a crystalline surface.

Type-locality form

Nodules with a faint fibrous internal structure.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen715.999111.993
68.30%
12MgMagnesiumMagnesium124.30524.305
14.82%
5BBoronBoron210.81021.620
13.19%
1HHydrogenHydrogen61.0086.048
3.69%
Total163.966100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Pinnoiet

In other languages

French
Pinnoïte
German
Pinnoit
Italian
Pinnoite
Japanese
ピノ石

Classification

Strunz
10th ed.

6.BB.05

  • 6BoratesClass
  • 6.BDiboratesDivision
  • 6.BBNeso-diborates with double tetrahedra B2O(OH)6; 2(2T)Group
  • 6.BB.05PinnoiteSpecies
Dana
8th ed.

25.02.03.01

  • 25Anhydrous Borates Containing Hydroxyl or HalogenClass
  • 25.02DiboratesType
  • 25.02.03— unnamed intermediate level —Group
  • 25.02.03.01PinnoiteSpecies
CIM

9.2.8

  • 9BoratesClass
  • 9.2Borates of Be and MgGroup
  • 9.2.8PinnoiteSpecies

Literature, links & citation

Citations
  1. 1884Staute, H. (1884) Pinnoit, ein neues Borat von Stassfurt. Berichte der Deutschen Chemischen Gesellschaft: 17: 1584-1586.
  2. 1885Luedecke, O. (1885) Beobachtungen an Stassfurter Vorkommnissen (Pinnoit, Pikromerit, Kainit und Steinsalz). Zeitschrift für Naturwissenschaften, Halle: 58: 645-662.
  3. 1910Boeke, H.E. (1910) Ueber die Borate der Kalisalzlagerstatten. Centralblatt für Mineralogie, Geologie und Paleontologie, Stuttgart: 531-539.
  4. 1920(1920) Atlas Der Krystallformen Vol. 6 - Text - Band VI - Markasit-Pyrit. Carl Winters Universitätsbuchhandlung, Heidelberg.
  5. 1947Stadler, H. P. (1947) The cell dimensions and space-group of pinnoite. Mineralogical Magazine and Journal of the Mineralogical Society, 28 (196) 26-28 doi:10.1180/minmag.1947.028.196.05 DOI: 10.1180/minmag.1947.028.196.05
