Pizgrischite

(Cu,Fe)Cu14PbBi17S34
IMA status
  • Approved
IMA symbol
Piz
IMA approved
2001
Also known as
  • IMA2001-002
  • Pizgrischiet

Where it forms, where it's found

Geological setting

Quartz vein embedded in gneisses.

Type locality
Piz Grisch
  1. Ausserferrera
  2. Ferrera
  3. Viamala Region
  4. Grisons
  5. Switzerland

46.5344°, 9.4644°

1recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789103 – 3.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Metallic
Transparency
Opaque
Colour
Lead grey
Streak
Grey-black
Tenacity
brittle
Cleavage
Perfect

Perfect on (001) and well-developed on (010)

Density
6.58 g/cm³

Optical

Optical colour
Dark brown (in oil with ND=1.515)
Anisotropism
Weak
Internal reflections
None observed
Tropism
Anisotropic
Reflectance R%
(39.9,40.8,24.80,25.80) 400, (40.2,41.2,25.00,26.00) 420, (40.4,41.5,25.05,26.20) 440, (40.6,42.0,25.20,26.50) 460, (40.7,42.1,25.30,26.75) 470, (40.8,42.4,25.35,27.00) 480, (41.0,42.7,25.40,27.15) 500, (41.1,42.9,25.40,27.25) 520, (41.1,43.0,25.45,27.40) 540, (41.2,43.1,25.40,27.40) 546, (41.1,43.1,25.40,27.45) 560, (41.1,43.1,25.30,27.45) 580, (41.2,43.3,25.40,27.50) 589, (41.1,43.2,25.30,27.55) 600, (41.1,43.4,25.25,27.55) 620, (40.9,43.4,25.05,27.60) 640, (40.7,43.3,25.00,27.55) 650, (40.5,43.2,24.85,27.50) 660, (40.3,43.1,24.70,27.30) 680, (40.1,43.0,24.60,27.15) 700

Crystallography

Crystal system
Monoclinic
Space group
C2/m
Cell parameters
a = 35.054(2) Å · b = 3.91123(1) Å · c = 43.192(2) Å
Cell angles
β = 96.713(4) °
Ratio a:b:c
1 : 0.112 : 1.232
Z
4
Twinning

Abundant polysynthetic twinning on (010).

Type-locality form

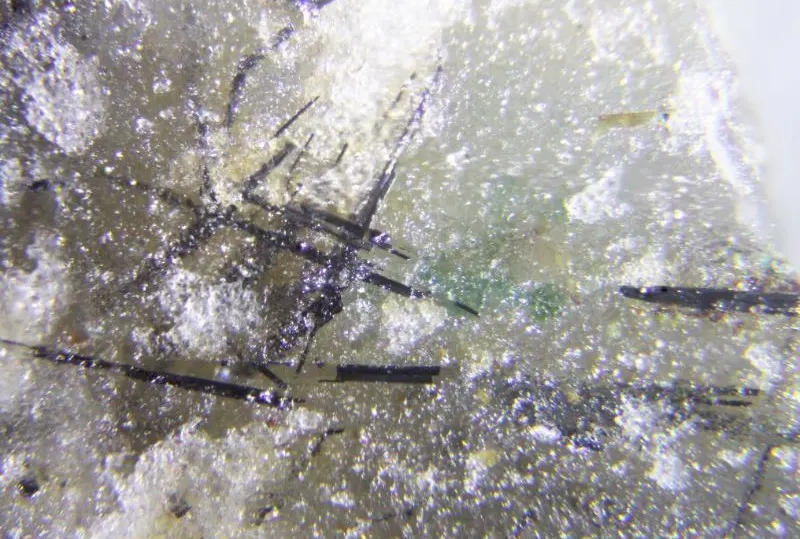

Thin lead-grey blades up to 1 cm, embedded in quartz.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
83BiBismuthBismuth17208.9803552.660
60.64%
16SSulfurSulfur3432.0601090.040
18.60%
29CuCopperCopper1563.546953.190
16.27%
82PbLeadLead1207.200207.200
3.54%
26FeIronIron155.84555.845
0.95%
Total5858.935100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA2001-002
  • Pizgrischiet

In other languages

German
IMA 2001-002 · Pizgrischit

Classification

Strunz
10th ed.

2.JA.10d

  • 2Sulfides and SulfosaltsClass
  • 2.JSulfosalts of PbS archetypeDivision
  • 2.JAGalena derivatives with little or no PbGroup
  • 2.JA.10dPizgrischiteSpecies

Literature, links & citation

Citations
  1. 2007Roth, Ph. (2007): Minerals first discovered in Switzerland and minerals named after Swiss individuals. Philippe Roth, Ed., Zurich, 239 pp.
  2. 2007Meisser, N. (2007) Ein neues Mineral aus Graubünden. Schweizer Strahler: 2/2007: 14-17.
  3. 2007Meisser, N., Schenk, K., Berlepsch, P., Brugger, J., Bonin, M., Criddle, A. J., Thelin, P., Bussy, F. (2007) Pizgrischite, (Cu,Fe)Cu14PbBi17S35, a new sulfosalt from the Swiss Alps: Description, crystal structure and occurrence. The Canadian Mineralogist, 45 (5) 1229-1245 doi:10.2113/gscanmin.45.5.1229 DOI: 10.2113/gscanmin.45.5.1229
