Prismatine

(Mg,Al,Fe)6Al4(Si,Al)4(B,Si,Al)(O,OH,F)22
IMA status
  • Approved
  • Grandfathered
IMA symbol
Prm
Discovered
1886

Where it forms, where it's found

Geological setting

Granulite-facies with oligoclase, sillimanite, garnet, and/or tourmaline.

Type locality
Granulite outcrop
  1. Waldheim
  2. Mittelsachsen
  3. Saxony
  4. Germany

51.0786°, 13.0138°

8recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789106.5 – 7/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous
Transparency
Translucent · Opaque
Colour
Gray-green · gold brown · purplish gray · gray
Cleavage
Perfect

(110)

Density
3.341 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 28 – 38°
Refractive index
1.669 – 1.83
Surface relief
High
Principal indices
nα 1.669 – 1.671 · nβ 1.681 – 1.83 · nγ 1.682 – 1.684
Pleochroism
Visible

colourless to greenish, reddish, yellow, and yellow-brown

Dispersion
r > v strong
Notes

sections of greater than standard thickness

Michel-Lévy diagramhighlighted lineδ = 0.0130
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]130 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation130 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Space group
Cmcm
Cell parameters
a = 15.949(2) Å · b = 13.669(2) Å · c = 6.692(1) Å
Ratio a:b:c
1 : 0.857 : 0.420
Type-locality form

Unterminated prismatic crystals up to about 5-6 cm in length, distributed randomly or radially grouped.

Comment

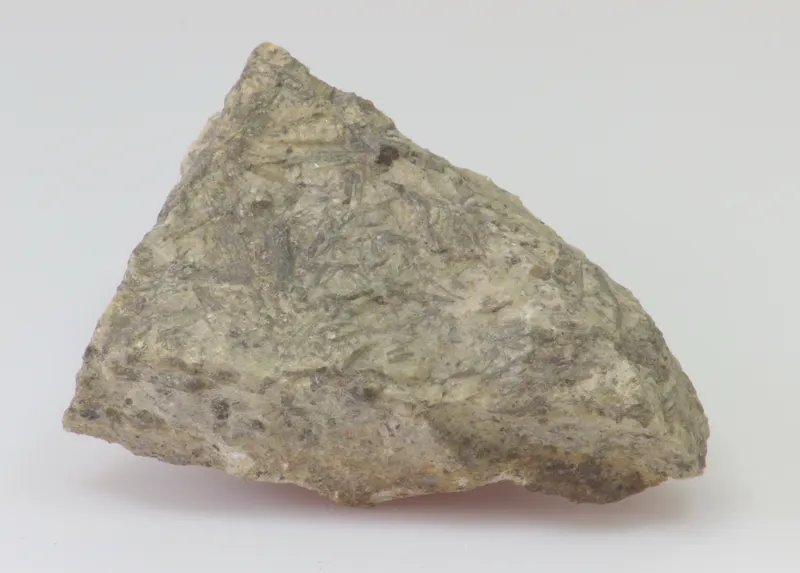

Prismatine 5 105M Bahnhof

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen4415.999703.956
32.28%
9FFluorineFluorine2218.998417.956
19.16%
13AlAluminiumAluminium1526.982404.730
18.56%
26FeIronIron655.845335.070
15.36%
12MgMagnesiumMagnesium624.305145.830
6.69%
14SiSiliconSilicon528.085140.425
6.44%
1HHydrogenHydrogen221.00822.176
1.02%
5BBoronBoron110.81010.810
0.49%
Total2180.953100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

In other languages

German
Prismatin
Italian
prismatina

Classification

Strunz
10th ed.

9.BJ.50

  • 9SilicatesClass
  • 9.BSorosilicatesDivision
  • 9.BJSorosilicates with Si3O10, Si4O11, etc. anions; cations in octahedral [6] and greater coordinationGroup
  • 9.BJ.50PrismatineSpecies

Literature, links & citation

Citations
  1. 1886Sauer, A. (1886) Protokoll der Sitzung vom 29. September 1886. Über eine eigentümliche Granulitart als Muttergestein zweier neuer Mineralspecies [Minutes of the meeting of 29 September 1886. On a peculiar type of granulite as the parent rock of two new mineral species]. Zeitschrift der Deutschen Geologischen Gesellschaft, 38. 704-705
  2. 1889Ussing, Ν. V. (1889) XXXIV. Untersuchungen der Mineralien von Fiskernäs in Grönland. Zeitschrift für Kristallographie - Crystalline Materials, 15 (1). 596-615 doi:10.1524/zkri.1889.15.1.596DOI: 10.1524/zkri.1889.15.1.596
  3. 1928Gossner, B. and Mussgnug, F. (1928) Vergleichende rontgenographische Untersuchung von Magnesiumsilikaten. Neues Jahrb. Min., ABt. A, Beil-Bd: 58: 213-252 (227).
  4. 1995Young, D.A. (1995) Kornerupine Group Minerals in Grenville Granulite Facies Paragenesis, Reading Prong, New Jersey, The Canadian Mineralogist: 33(6): 1255-1262.
  5. 1996Jambor, John L., Grew, Edward S., Roberts, Andrew C. (1996) New mineral names. American Mineralogist, 81. 1513-1518
