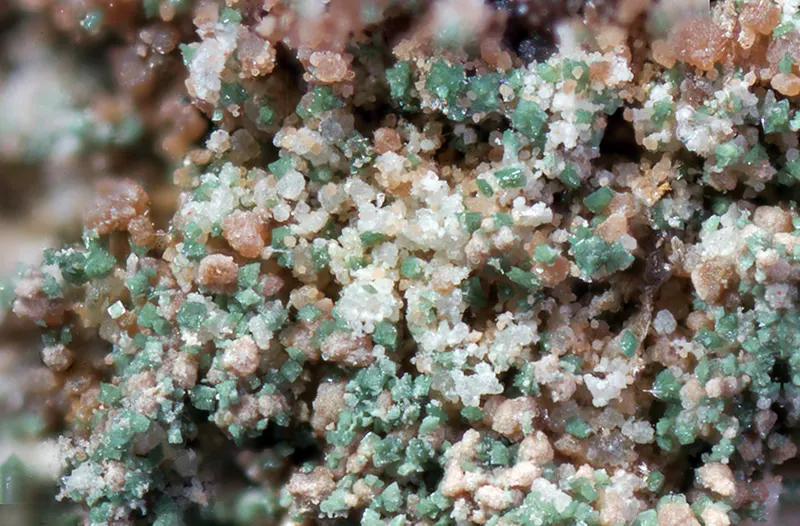

Puttapaite

Pb2Mn2+2ZnCr3+4O2(AsO4)4(OH)6 · 12H2O
IMA status
  • Approved
IMA symbol
Ptp
Also known as
  • Puttapaiet

Where it forms, where it's found

Geological setting

The Beltana deposit is a high-grade hypogene willemite deposit hosted in Lower Cambrian carbonate rocks.

Type locality
Beltana Mine
  1. Puttapa
  2. Pastoral Unincorporated Area
  3. South Australia
  4. Australia

-30.6756°, 138.4344°

1recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Colour
pale green
Streak
pale green
Tenacity
brittle
Cleavage
None Observed
Fracture
Splintery
Density
3.562 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 67° · 2V calc = 69.8°
Refractive index
1.7 – 1.73
Surface relief
High
Principal indices
nα 1.700 · nβ 1.720 · nγ 1.730
Pleochroism
Visible

X light blue gray, Y colourless, Z not observed; X > Y.

Michel-Lévy diagramhighlighted lineδ = 0.0300
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]300 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation300 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
C2/m
Cell parameters
a = 12.405(3) Å · b = 10.565(2) Å · c = 12.311(3) Å
Cell angles
β = 106.06(3) °
Ratio a:b:c
1 : 0.852 : 0.992
Z
2
Type-locality form

It forms rosettelike aggregates to 50 µm across composed of diamond-shaped tablets to 45 µm in length and 5 µm in thickness.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen3615.999575.964
33.81%
82PbLeadLead2207.200414.400
24.33%
33AsArsenicArsenic474.922299.688
17.59%
24CrChromiumChromium451.996207.984
12.21%
25MnManganeseManganese254.938109.876
6.45%
30ZnZincZinc165.38065.380
3.84%
1HHydrogenHydrogen301.00830.240
1.77%
Total1703.532100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Puttapaiet

In other languages

German
IMA 2020-025 · Puttapait

Classification

Strunz
10th ed.

8.DK

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.DPhosphates, etc. with additional anions, with H2ODivision
  • 8.DKWith large and medium-sized cations, (OH, etc.):RO4 > 1:1 and < 2:1Group
  • 8.DKPuttapaiteSpecies

Literature, links & citation

Citations
  1. doi.org (n.d.) https://doi.org/10.5194/ejm-32-443-2020,
  2. 2020Miyawaki, Ritsuro, Hatert, Frédéric, Pasero, Marco, Mills, Stuart J. (2020) IMA Commission on New Minerals, Nomenclature and Classification (CNMNC) – Newsletter 56. European Journal of Mineralogy, 32 (4) 443-448 doi:10.5194/ejm-32-443-2020 DOI: 10.5194/ejm-32-443-2020
  3. 2022(2022) Puttapaite. Handbook of Mineralogy. Mineralogical Society of America
  4. 2025Elliott, Peter; Kampf, Anthony R. (2025) Puttapaite, Pb2Mn2+2ZnCr3+4O2(AsO4)4(OH)6⋅12H2O, a new mineral from the Beltana deposit, Puttapa, Flinders Ranges, South Australia, Australia. Mineralogical Magazine, 89 (1). 155-166 doi:10.1180/mgm.2024.60DOI: 10.1180/mgm.2024.60
