Radvaniceite

GeS2
IMA status
  • Approved
IMA symbol
Rad
Also known as
  • IMA2021-052
  • Radvaniceiet
  • Unnamed (Ge Sulphide)

Where it forms, where it's found

Geological setting

A burning coal mine dump.

Type locality
Kateřina Coal Mine
  1. Radvanice
  2. Trutnov District
  3. Hradec Králové Region
  4. Czech Republic

50.5626°, 16.0644°

2recorded occurrences
Source · OpenStreetMap

Physical

Transparency
Translucent
Colour
White to yellowish grey
Streak
White
Tenacity
elastic
Density
3.05 g/cm³

Optical

Pleochroism
Weak

From colourless to pale greenish yellow.

Optical colour
Light gray
Anisotropism
Distinct with grey rotation tints
Bireflectance
None
Internal reflections
White to grey
Tropism
Anisotropic
Reflectance R%
(13.1,13.6) 400, (14.2,15.9) 420, (14.8,17.6) 440, (15.2,18.5) 460, (15.4,18.8) 470, (15.5,19.1) 480, (15.7,19.6) 500, (15.9,20.0) 520, (16.0,20.3) 540, (16.1,20.4) 546, (16.2,20.6) 560, (16.4,20.8) 580, (16.4,20.8) 589, (16.6,20.9) 600, (16.8,20.9) 620, (16.9,20.9) 640, (16.9,20.9) 650, (17.0,20.9) 660, (17.2,20.8) 680, (17.3,20.7) 700
Notes

Refraction index > 1.8.

Reflected-light panel
16.0 %anisotropic · dual curve
Specimen sRGB 153, 103, 52
White reference100 % reflector under same lamp
R₁ R₂
Mode
Bireflectance
None
Anisotropism
Distinct with grey rotation tints
Reflected colour
Light gray
Internal reflections
White to grey

Crystallography

Crystal system
Monoclinic
Space group
Pc
Cell parameters
a = 6.883(1) Å · b = 22.501(3) Å · c = 6.808(1) Å
Cell angles
β = 120.365(9) °
Ratio a:b:c
1 : 3.269 : 0.989
Z
12
Type-locality form

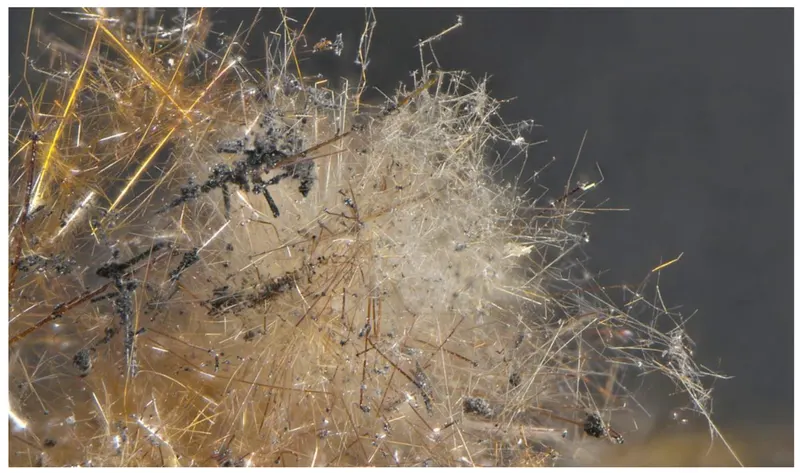

Occurs as aggregates resembling cotton tufts up to 5 mm in size; they are composed of acicular crystals (somewhat resembling bent wires) up to fibres about 1–5 μm thick and up to 3 mm in length; also irregular grains, 10–50 μm, in aggregates.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
32GeGermaniumGermanium172.63072.630
53.11%
16SSulfurSulfur232.06064.120
46.89%
Total136.750100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA2021-052
  • Radvaniceiet
  • Unnamed (Ge Sulphide)

In other languages

German
IMA 2021-052 · Radvaniceit

Classification

Strunz
10th ed.

2.EA

  • 2Sulfides and SulfosaltsClass
  • 2.EMetal Sulfides, M: S <= 1:2Division
  • 2.EAM:S = 1:2 - With Cu, Ag, AuGroup
  • 2.EARadvaniceiteSpecies

Literature, links & citation

Citations
  1. 2021Miyawaki, Ritsuro, Hatert, Frédéric, Pasero, Marco, Mills, Stuart J. (2021) IMA Commission on New Minerals, Nomenclature and Classification (CNMNC) CNMNC Newsletter No 63. Mineralogical Magazine, 85 (6) 910-915 doi:10.1180/mgm.2021.74 DOI: 10.1180/mgm.2021.74
  2. 2022(2022) Radvaniceite. Handbook of Mineralogy. Mineralogical Society of America
  3. 2022Sejkora, Jiří, Žáček, Vladimír, Škoda, Radek, Laufek, František, Dolníček, Zdeněk (2022) Radvaniceite, GeS2, a New Germanium Sulphide, from the Kateřina Mine, Radvanice near Trutnov, Czech Republic. Minerals, 12 (2) 222 doi:10.3390/min12020222 DOI: 10.3390/min12020222
