Rankachite

Ca0.5(V4+,V5+)(W6+,Fe3+)2O8(OH) · 2H2O
IMA status
  • Approved
IMA symbol
Rka
Discovered
1984
Also known as
  • IMA1983-044
  • Rankachiet

Where it forms, where it's found

Geological setting

Secondary mineral.

Type locality
Clara Mine
  1. Oberwolfach
  2. Ortenaukreis
  3. Freiburg Region
  4. Baden-Württemberg
  5. Germany

48.3797°, 8.2289°

2recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789102.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Resinous · Sub-Adamantine
Transparency
Translucent · Opaque
Colour
Dark brown · brown · brownish yellow · yellow
Streak
Brown
Cleavage
Perfect

Perfect cleavage parallel to (001)

Fracture
Irregular/Uneven

Optical

Optical type
Biaxial (-) · 2V measured = 58° · 2V calc = 52°
Refractive index
1.77 – 1.97
Surface relief
Very high
Principal indices
nα 1.77 · nβ 1.925 · nγ 1.97
Pleochroism
Strong

X = Y = yellowish brown; Z = reddish brown to opaque.

Dispersion
r << v, relatively strong.
Extinction
X ⊥ plane of flattening; Z = c.
Michel-Lévy diagramhighlighted lineδ = 0.2000
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]2000 nm4th order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation2000 nm
Order4th order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
#15
Cell parameters
a = 5.479 Å · b = 8.144 Å · c = 10.627 Å
Cell angles
β = 98.22 °
Ratio a:b:c
1 : 1.486 : 1.940
Unit cell volume
469.3 ų
Z
2
Morphology

Tabular on (001) and elongated along [100].

Twinning

None observed.

Type-locality form

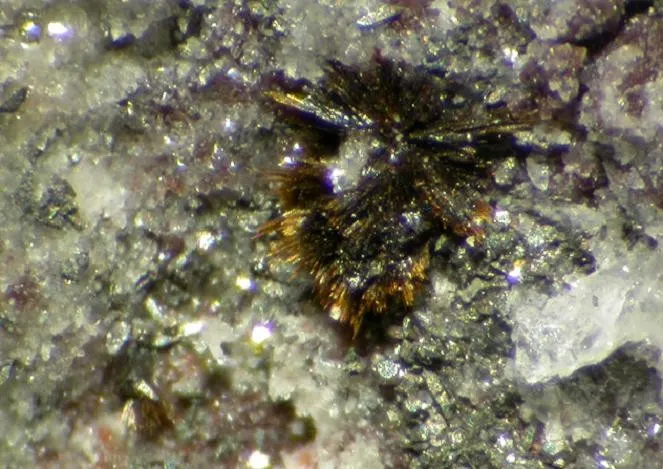

Crusts on quartz as well as radiated and rosette-like aggregates of crystal needles.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
74WTungstenTungsten2183.840367.680
47.00%
8OOxygenOxygen1115.999175.989
22.50%
26FeIronIron255.845111.690
14.28%
23VVanadiumVanadium250.942101.884
13.02%
20CaCalciumCalcium0.540.07820.039
2.56%
1HHydrogenHydrogen51.0085.040
0.64%
Total782.322100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1983-044
  • Rankachiet

In other languages

German
Rankachit
Italian
Rankachite

Classification

Strunz
10th ed.

7.GB.25

  • 7SulfatesClass
  • 7.GMolybdates, Wolframates and NiobatesDivision
  • 7.GBWith additional anions and/or H2OGroup
  • 7.GB.25RankachiteSpecies
Dana
8th ed.

49.03.06.01

  • 49Hydrated Molybdates and TungstatesClass
  • 49.03Hydrated Molybdates and Tungstates Containing Hydroxyl or HalogenType
  • 49.03.06— unnamed intermediate level —Group
  • 49.03.06.01RankachiteSpecies
CIM

22.5.12

  • 22Phosphates, Arsenates or Vanadates with other AnionsClass
  • 22.5Phosphates, arsenates or vanadates with chromate, molybdate, niobate or tantalateGroup
  • 22.5.12RankachiteSpecies

Literature, links & citation

Citations
  1. 1984Walenta, K., Dunn, P. J. (1984) Rankachit, ein neues Mineral aus der Grube Clara im mittleren Schwarzwald [Rankachite, a new mineral from the Clara mine in the central Black Forest]. Neues Jahrbuch für Mineralogie - Monatshefte, 1984 (7) 289-295
  2. 1985Dunn, Pete J., Fleischer, Michael, Langley, Richard H., Shigley, James E., Zilczer, Janet A. (1985) New mineral names. American Mineralogist, 70 (7-8) 871-881
  3. 1999Kolitsch, U. (1999) Ein neues, Vanadium, Chrom und Wolfram enthaltendes Mineral aus einer Rankachit-Paragenese von der Grube Clara im mittleren Schwarzwald. Aufschluss, 50, 23-32. (in German).
  4. 2000Kolitsch, U. and M. Götzinger (2000): Some new finds from the Clara mine, middle Black Forest: eulytite, namibite, volborthite, gearksutite, spertiniite, monazite-(La), protasite, sainfeldite, cyanotrichite and vauquelinite. Erzgräber, 14, 33-47. (in German).
  5. 2005Walenta, K. & Theye, T. (2005): Iron-poor rankachite from the Clara mine. Der Erzgräber, 19, 58-62 (in German with English abstract).
