Ranunculite

Al(UO2)(PO3OH)(OH)3 · 4H2O
IMA status
  • Approved
IMA symbol
Rnu
Discovered
1979
Also known as
  • IMA1978-067
  • Ranunculiet

Where it forms, where it's found

Geological setting

Late stage mineralization in a granite pegmatite

Type locality
Kobokobo pegmatite
  1. Mwenga Territory
  2. South Kivu
  3. DR Congo

-3.1000°, 28.1333°

2recorded occurrences
Source · OpenStreetMap

Radioactivity

Physical

Hardness
123456789103/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
Golden Yellow
Streak
Pale yellow
Tenacity
brittle
Cleavage
Imperfect/Fair

irregular, parallel to [100] and [001]

Density
3.40 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 56° · 2V calc = 56°
Refractive index
1.643 – 1.67
Surface relief
High
Principal indices
nα 1.643 · nβ 1.664 · nγ 1.670
Birefringence
0.027
Pleochroism
Strong

pale yellow to pale greenish yellow

Dispersion
very strong
Extinction
Oblique
UV response
None
Michel-Lévy diagramhighlighted lineδ = 0.0270
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]270 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation270 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
C2/c
Cell parameters
a = 11.1812(7) Å · b = 17.9281(5) Å · c = 17.91548(16) Å
Cell angles
β = 98.350(4) °
Ratio a:b:c
1 : 1.603 : 1.602
Z
4
Morphology

Rounded nodules less than 1 mm, composed of many tiny plates. The plates are flattened on [010].

Type-locality form

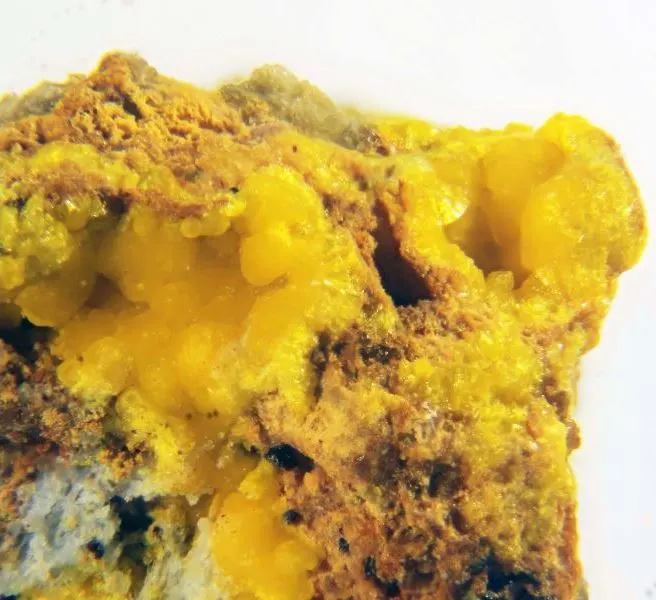

Gold-yellow nodules, with mean diameter of 0.3 mm, rarely to 1 mm, and botryoidal crusts.

Comment

three-dimensional electron diffraction (3D ED) techniques using a transmission electron microscope (TEM)

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
92UUraniumUranium1238.029238.029
46.12%
8OOxygenOxygen1315.999207.987
40.30%
15PPhosphorusPhosphorus130.97430.974
6.00%
13AlAluminiumAluminium126.98226.982
5.23%
1HHydrogenHydrogen121.00812.096
2.35%
Total516.068100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1978-067
  • Ranunculiet

In other languages

German
IMA 1978-067 · Ranunculit
Italian
Ranunculite

Classification

Strunz
10th ed.

8.EB.40

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.EUranyl phosphates and arsenatesDivision
  • 8.EBUO2:RO4 = 1:1Group
  • 8.EB.40RanunculiteSpecies
Dana
8th ed.

42.02.02.01

  • 42Hydrated Phosphates, Etc.containing Hydroxyl or HalogenClass
  • 42.02(AB)3(XO4)Zq·xH2OType
  • 42.02.02— unnamed intermediate level —Group
  • 42.02.02.01RanunculiteSpecies
CIM

19.11.23

  • 19PhosphatesClass
  • 19.11Phosphates of UGroup
  • 19.11.23RanunculiteSpecies

Literature, links & citation

Citations
  1. 1979Dellens, Michel, Piret, Paul (1979) Ranunculite, AlH(UO2)(PO4)(OH)3 · 4H2O, a new mineral. Mineralogical Magazine, 43 (327) 321-323 doi:10.1180/minmag.1979.043.327.01 DOI: 10.1180/minmag.1979.043.327.01
  2. 1980Fleischer, Michael, Cabri, Louis J., Pabst, Adolf (1980) New Mineral Names. American Mineralogist, 65 (3-4) 406-408
  3. 1980Wilson, Wendell E. (1980) Abstracts of New Mineral Descriptions. The Mineralogical Record, 11 (2) 111-112
  4. 2007(2007) Ranunculite. Handbook of Mineralogy. Mineralogical Society of America
  5. 2026Plášil, Jakub; Steciuk, Nathan; Steciuk, Gwladys; Sejkora, Jiří; Jarošová, Markéta; Rohlíček, Jan; Philippo, Simon; Němec, Ivan; Matthies, Alexander (2026) Extending the mineralogy of U6+ (IV.): Uranyl phosphate sheet of novel topology in the crystal structure of ranunculite. Mineralogical Magazine, 90 (1). 164-175 doi:10.1180/mgm.2025.10147DOI: 10.1180/mgm.2025.10147
