Rietveldite

Fe(UO2)(SO4)2(H2O)5
IMA status
  • Approved
IMA symbol
Rvd
IMA approved
2016
Also known as
  • IMA2016-081
  • Rietveldiet
  • Unnamed (Fe-U Sulphate Hydrate)

Where it forms, where it's found

Type locality
Willi Agatz mine
  1. Dresden
  2. Saxony
  3. Germany

51.0053°, 13.6910°

9recorded occurrences
Source · OpenStreetMap

Radioactivity

Physical

Hardness
123456789102/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Brownish-yellow

Powdery aggregates have yellowish beige color

Streak
White
Tenacity
brittle
Cleavage
Distinct/Good

Good on (010), and fair on (100) and (001).

Density
3.31 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 82° · 2V calc = 83.3°
Refractive index
1.57 – 1.586
Surface relief
Moderate
Principal indices
nα 1.570 · nβ 1.577 · nγ 1.586
Pleochroism
Weak

Exhibits barely noticeable pleochroism in shades of light brownish yellow color, Y < X ≈ Z

Dispersion
Very strong (r > v)
UV response
Does not exhibit fluorescence under either long- or short-wave UV
Michel-Lévy diagramhighlighted lineδ = 0.0160
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]160 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation160 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Space group
Pmn21
Cell parameters
a = 12.9577(9) Å · b = 8.3183(3) Å · c = 11.2971(5) Å
Ratio a:b:c
1 : 0.642 : 0.872
Unit cell volume
1217.7 ų
Z
4
Morphology

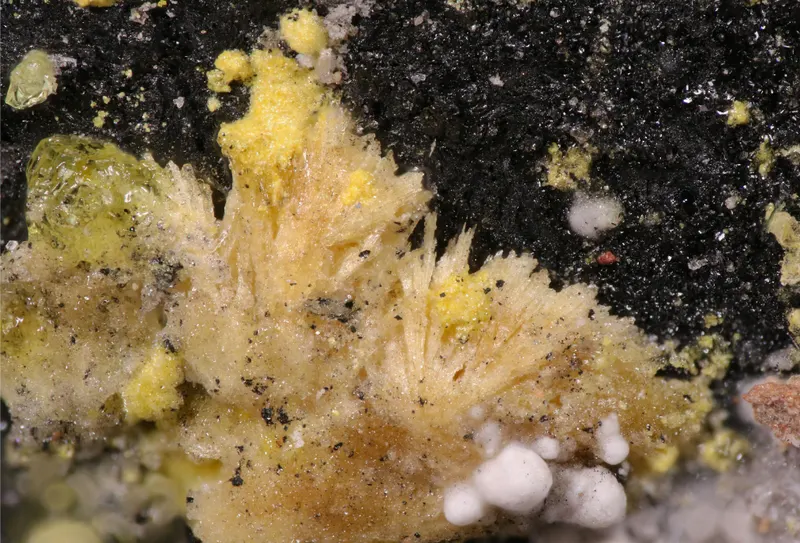

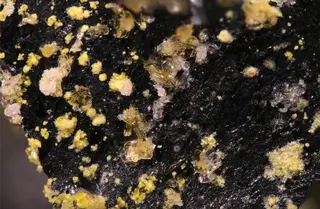

Thin blades up to 0.5 mm long, elongated on [001] and flattened on (010).

Type-locality form

Blades up to 0.5 mm long

Comment

Also given as 6.453, 11.222, 8.276 Å, in non-standard space-group setting Pm21b.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1515.999239.985
39.47%
92UUraniumUranium1238.029238.029
39.15%
16SSulfurSulfur232.06064.120
10.54%
26FeIronIron155.84555.845
9.18%
1HHydrogenHydrogen101.00810.080
1.66%
Total608.059100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA2016-081
  • Rietveldiet
  • Unnamed (Fe-U Sulphate Hydrate)

In other languages

German
IMA 2016-081 · Rietveldit

Classification

Strunz
10th ed.

7.EB.10

  • 7SulfatesClass
  • 7.EUranyl sulfatesDivision
  • 7.EBWith medium-sized cationsGroup
  • 7.EB.10RietvelditeSpecies

Group, growth & confusion

In the same group
1 members

Literature, links & citation

Citations
  1. 1978Serezkhin, V.N., Serezkhina, L.B. (1978) Russian Journal of Inorganic Chemistry: 23: 414–416.
  2. 1990Witzke, T. (1990) Sekundärminerale und Haldenbrandminerale des Döhlener Beckens. Diplomarbeit, Bergakademie Freiberg, Sektion Mineralogie/Geochemie [in German].
  3. 2016Witzke, T. (2016): Fe(UO2)(SO4)2∙5H2O, a new uranyl sulfate mineral from the Willi Agatz mine, Dresden, Saxony, Germany. New Minerals and Mineralogy in the 21th Century - International scientific symposium Jáchymov 2016, Jáchymov, Czech Republic, September 3-5, 2016, Book of abstracts, 109-110.
  4. 2016Hålenius, U., Hatert, F., Pasero, M., Mills, S. J. (2016) New minerals and nomenclature modifications approved in 2016, CNMNC Newsletter No 34. Mineralogical Magazine, 80 (7) 1315-1321 doi:10.1180/minmag.2016.080.086DOI: 10.1180/minmag.2016.080.086
  5. 2017Kampf, A. R., Sejkora, J., Witzke, T., Plášil, J., Čejka, J., Nash, B. P., Marty, J. (2017) Rietveldite, Fe(UO2)(SO4)2(H2O)5, a new uranyl sulfate mineral from Giveaway-Simplot mine (Utah, USA), Willi Agatz mine (Saxony, Germany) and Jáchymov (Czech Republic) Journal of GEOsciences, 62 (2) 107-120
