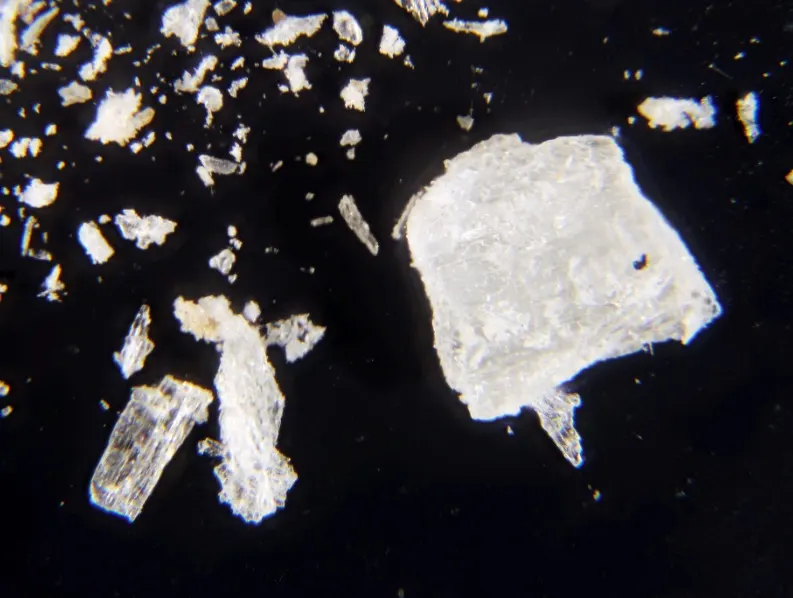

Rivadavite

Na6Mg[B6O7(OH)6]4 · 10H2O
IMA status
  • Approved
IMA symbol
Riv
Discovered
1966
IMA approved
1966
Also known as
  • IMA1966-010
  • Rivadaviet

Where it forms, where it's found

Geological setting

In a deposit of borax.

Sedimentary borate deposits, hot springs

Type locality
Tincalayu Mine
  1. Antofagasta de la Sierra Department
  2. Catamarca Province
  3. Argentina

-25.2691°, -67.0509°

4recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789103.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Colourless · white
Streak
White
Tenacity
brittle
Cleavage
Perfect

Perfect on (100) (102) poor on (010)

Fracture
Splintery
Density
1.905 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 80° · 2V calc = 82°
Refractive index
1.47 – 1.497
Surface relief
Low
Principal indices
nα 1.470 · nβ 1.481 · nγ 1.497
Dispersion
relatively weak r > v
Michel-Lévy diagramhighlighted lineδ = 0.0270
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]270 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation270 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
P21/m
Cell parameters
a = 15.870 Å · b = 8.010 Å · c = 22.256 Å
Cell angles
β = 116.40 °
Ratio a:b:c
1 : 0.505 : 1.402
Z
1
Morphology

Elongated crystals in subparallel massive aggregates

Type-locality form

Nearly spherical aggregates measuring from 1-9 cm in diameter.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen6215.999991.938
68.04%
5BBoronBoron2410.810259.440
17.79%
11NaSodiumSodium622.990137.940
9.46%
1HHydrogenHydrogen441.00844.352
3.04%
12MgMagnesiumMagnesium124.30524.305
1.67%
Total1457.975100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1966-010
  • Rivadaviet

In other languages

German
IMA 1966-010 · Rivadavit
Spanish
Rivadavita
Italian
Rivadavite

Classification

Strunz
10th ed.

6.FA.20

  • 6BoratesClass
  • 6.FHexaboratesDivision
  • 6.FANeso-hexaboratesGroup
  • 6.FA.20RivadaviteSpecies
Dana
8th ed.

26.06.01.01

  • 26Hydrated Borates Containing Hydroxyl or HalogenClass
  • 26.06HexaboratesType
  • 26.06.01— unnamed intermediate level —Group
  • 26.06.01.01RivadaviteSpecies
CIM

9.2.15

  • 9BoratesClass
  • 9.2Borates of Be and MgGroup
  • 9.2.15RivadaviteSpecies

Group, growth & confusion

Often grow together
2 minerals

Literature, links & citation

Citations
  1. 1967Hurlbut, C. S., Aristarain, and L. F. (1967) Rivadavite, Na6MgB24O40·22H2O, a new borate from Argentina. American Mineralogist, 52 (3-4) 326-335
  2. 1973Dal Negro, A., Ungaretti, L., Sabelli, C. (1973) Crystal structure of rivadavite. Die Naturwissenschaften, 60 (7). 350 doi:10.1007/bf00599902DOI: 10.1007/bf00599902
  3. 1996Grew, Edward S.; Anovitz, Lawrence M. - Eds. (1996) Boron - Mineralogy, Petrology and Geochemistry. Reviews in Mineralogy Vol. 33. Mineralogical Society of America p.862
  4. 2005(2005) Rivadavite. Handbook of Mineralogy. Mineralogical Society of America
