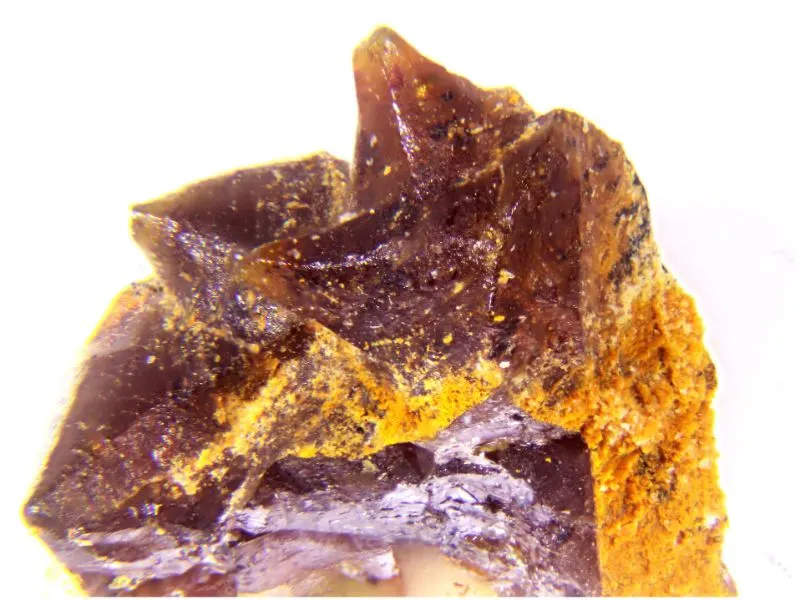

Röntgenite-(Ce)

Ca2Ce3(CO3)5F3
IMA status
  • Approved
  • Grandfathered
IMA symbol
Rng-Ce
IMA approved
1987
Also known as
  • Roentgenite
  • Röntgeniet-(Ce)

Where it forms, where it's found

Geological setting

A late-stage hydrothermal mineral in granite pegmatite.

Pegmatites

Type locality
Narssârssuk pegmatite
  1. Narsaarsuk Plateau
  2. Igaliku
  3. Kujalleq
  4. Greenland

61.0331°, -45.3778°

23recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789104.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Yellow to brown · green
Fracture
Sub-Conchoidal
Density
4.19 g/cm³

Optical

Optical type
Uniaxial (+)
Refractive index
1.658 – 1.756
Surface relief
High
Principal indices
nω 1.658 – 1.662 · nε 1.756
Michel-Lévy diagramhighlighted lineδ = 0.0960
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]960 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation960 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Trigonal
Space group
#78
Cell parameters
a = 7.13(3) Å · c = 69.4(2) Å
Z
9
Morphology

Hexagonal

Twinning

On (0001), rare.

Type-locality form

Intimately intergrown with synchisite, parisite, and bastnaesite, simulating single crystals.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
58CeCeriumCerium3140.116420.348
49.02%
8OOxygenOxygen1515.999239.985
27.98%
20CaCalciumCalcium240.07880.156
9.35%
6CCarbonCarbon512.01160.055
7.00%
9FFluorineFluorine318.99856.994
6.65%
Total857.538100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Roentgenite
  • Röntgeniet-(Ce)

In other languages

German
Röntgenit-(Ce)
Italian
Röntgenite- · Röntgenite-(Ce)

Classification

Strunz
10th ed.

5.BD.20d

  • 5CarbonatesClass
  • 5.BCarbonates with additional anions, without H2ODivision
  • 5.BDWith rare earth elements (REE)Group
  • 5.BD.20dRöntgenite-(Ce)Species
Dana
8th ed.

16a.01.06.01

  • 16aAnhydrous Carbonates Containing Hydroxyl or HalogenClass
  • 16a.01(AB)(XO3)ZqType
  • 16a.01.06— unnamed intermediate level —Group
  • 16a.01.06.01Röntgenite-(Ce)Species
CIM

12.1.16

  • 12Carbonates with other anionsClass
  • 12.1Carbonates with halidesGroup
  • 12.1.16Röntgenite-(Ce)Species

Literature, links & citation

Citations
  1. 1953Donnay, Gabrielle (1953) Roentgenite, 3CeFCO3· 2CaCO3, a new mineral from Greenland. American Mineralogist, 38 (9-10) 868-871
  2. 1953Donnay, Gabrielle, Donnay, J. D. H. (1953) The crystallography of bastnaesite, parisite, roentgenite and synchisite. American Mineralogist, 38 (11-12) 932-963
  3. 1987Nickel, Ernest H., Mandarino, Joseph A. (1987) Procedures involving the IMA Commission on New Minerals and Mineral Names and guidelines on mineral nomenclature. American Mineralogist, 72 (9-10) 1031-1042
  4. 1993Ni, Yunxiang, Hughes, John M., Mariano, Anthony N. (1993) The atomic arrangement of bastnäsite-(Ce), Ce(CO3)F, and structural elements of synchysite-(Ce), röntgenite-(Ce), and parisite-(Ce) American Mineralogist, 78 (3-4) 415-418
  5. 2005(2005) Röntgenite-(Ce). Handbook of Mineralogy. Mineralogical Society of America
