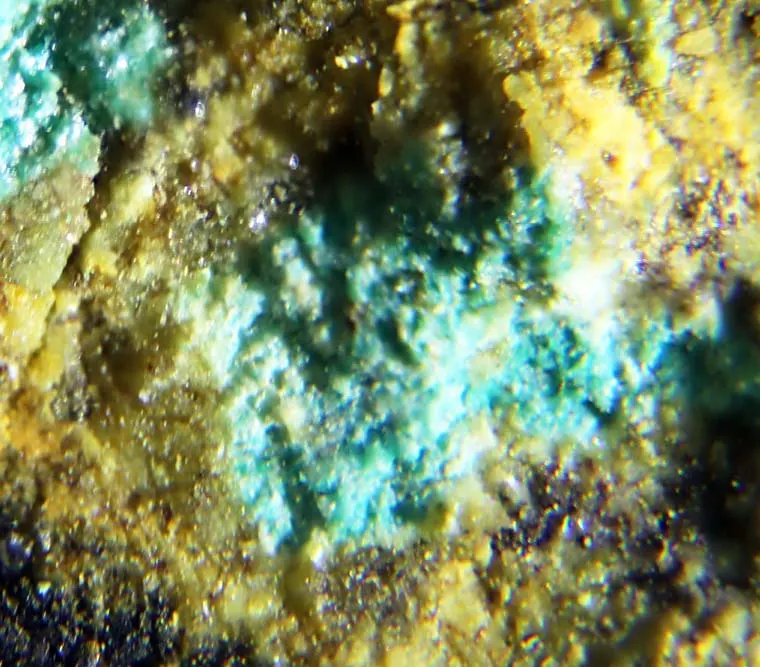

Roubaultite

Cu2O2(UO2)3(CO3)2(OH)2 · 4H2O
IMA status
  • Approved
IMA symbol
Rbl
Discovered
1970
IMA approved
1970
Also known as
  • IMA1970-030
  • Roubaultiet

Where it forms, where it's found

Geological setting

Oxidation zone at the Shinkolobwe Uranium deposit.

Type locality
Shinkolobwe Mine
  1. Shinkolobwe
  2. Kambove Territory
  3. Haut-Katanga
  4. DR Congo

-11.0486°, 26.5508°

3recorded occurrences
Source · OpenStreetMap

Radioactivity

Physical

Hardness
123456789103/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Colour
Grass-green to apple-green
Cleavage
Perfect

Perfect on (100) and imperfect on (010)

Density
5.02 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 55° · 2V calc = 46 – 60°
Refractive index
1.7 – 1.83
Surface relief
High
Principal indices
nα 1.700 · nβ 1.800 · nγ 1.83
Pleochroism
Visible

X = colorless Y = colorless Z = yellow-green

Dispersion
relatively weak
Michel-Lévy diagramhighlighted lineδ = 0.1300
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]1300 nm3rd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation1300 nm
Order3rd order
XPL colour

Crystallography

Crystal system
Triclinic
Space group
#1
Cell parameters
a = 7.73 Å · b = 6.87 Å · c = 10.87 Å
Cell angles
α = 86.48 ° · β = 134.2 ° · γ = 93.17 °
Ratio a:b:c
1 : 0.889 : 1.406
Morphology

Rosette-like aggregates consisting of platy (on (100)) crystals.

Comment

space group P1 or P-1

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
92UUraniumUranium3238.029714.087
59.74%
8OOxygenOxygen2015.999319.980
26.77%
29CuCopperCopper263.546127.092
10.63%
6CCarbonCarbon212.01124.022
2.01%
1HHydrogenHydrogen101.00810.080
0.85%
Total1195.261100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1970-030
  • Roubaultiet

In other languages

German
Roubaultit
Italian
Roubaultite

Classification

Strunz
10th ed.

5.EA.25

  • 5CarbonatesClass
  • 5.EUranyl CarbonatesDivision
  • 5.EAUO2:CO3 > 1:1Group
  • 5.EA.25RoubaultiteSpecies
Dana
8th ed.

16b.07.13.01

  • 16bHydrated Carbonates Containing Hydroxyl or HalogenClass
  • 16b.07MiscellaneousType
  • 16b.07.13— unnamed intermediate level —Group
  • 16b.07.13.01RoubaultiteSpecies
CIM

7.16.10

  • 7Oxides and HydroxidesClass
  • 7.16Oxides of UGroup
  • 7.16.10RoubaultiteSpecies

Literature, links & citation

Citations
  1. 1970Cesbron, Fabien, Pierrot, Roland, Verbeek, Théodore (1970) La roubaultite Cu2(UO2)3(OH)10·5H2O, une nouvelle espèce minérale. Bulletin de Minéralogie, 93 (5) 550-554 doi:10.3406/bulmi.1970.6513 DOI: 10.3406/bulmi.1970.6513
  2. 1972Fleischer, M. (1972) New Mineral Names. American Mineralogist, 57 (11-12). 1909-1914
  3. 1985Ginderow, D., Cesbron, F. (1985) Structure de la roubaultite, Cu2(UO2)3(CO3)2O2(OH)2·4H2O. Acta Crystallographica Section C Crystal Structure Communications, 41 (5) 654-657 doi:10.1107/s0108270185004991DOI: 10.1107/s0108270185004991
  4. 1986Hawthorne, Frank C., Fleischer, Michael, Grew, Edward S., Grice, Joel D., Jambor, John L., Puziewicz, J., Roberts, Andrew C., Vanko, D. A., Zilczer, J. A. (1986) New mineral names. American Mineralogist, 71. 1277-1282
  5. 1992Deliens, Michel (1992) Occurrence de roubaultite à Kamoto (Shaba, Zaïre). Bulletin de l'Institut Royal des Sciences Naturelles de Belgique. Sciences de la Terre, 58, 295-296.
